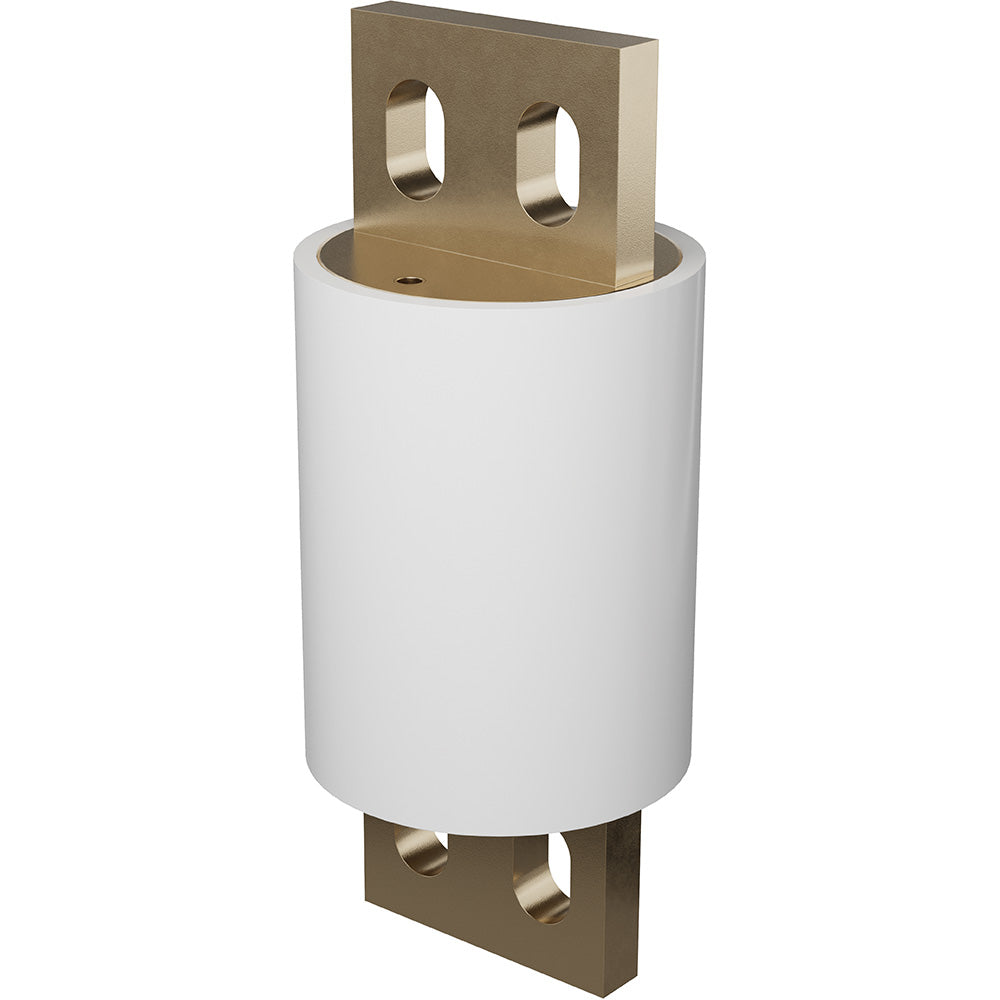

Cutler Hammer A100P1000-4 - Low Voltage Fuse 1000A (1000V, 100kA AIC)

The Cutler Hammer A100P1000-4 is a low-voltage current-limiting fuse designed to provide reliable overcurrent and short-circuit protection in demanding industrial power distribution systems. It features a 1000A current rating and a 1000V AC voltage rating, capable of interrupting faults with a 100kA AIC rating at its maximum voltage. The fuse is constructed as a single-barrel unit with a 3.5-inch diameter and a robust design weighing 4 lb, ensuring mechanical durability. It is UL certified and complies with relevant industry standards for safety and performance. This fuse is typically applied in industrial control panels, motor control centers, and service entrance equipment for comprehensive circuit protection.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, single barrel construction
• Voltage Rating: 1000V AC
• Current Rating: 1000A
• Dimensions: 3.5-inch diameter
• Standards: UL Certified
• Applications: Industrial power distribution, motor control centers, service entrance equipment
• AIC rating: 100kA@1000V
• Barrels: 1
• Certification: UL

Product Identification

• UPC: 078200194974
• GTIN: 00782001949747
