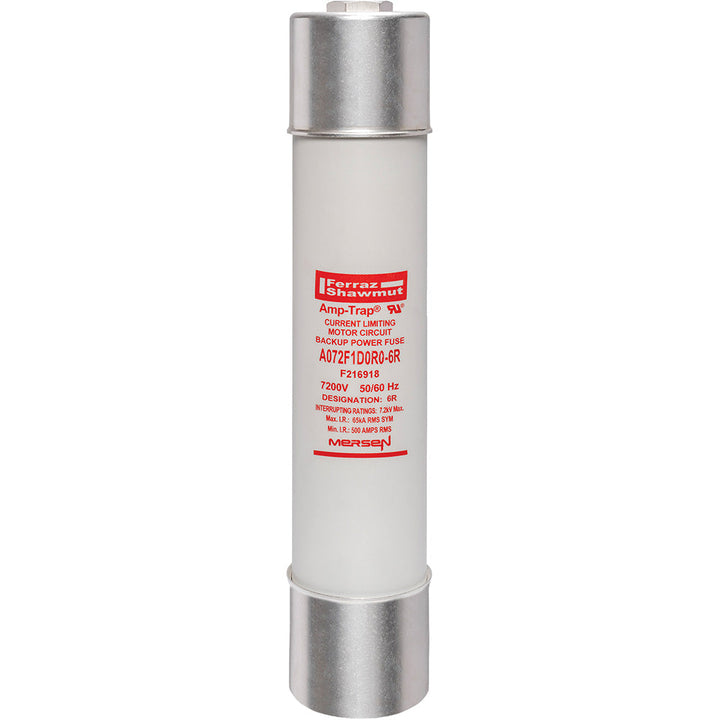

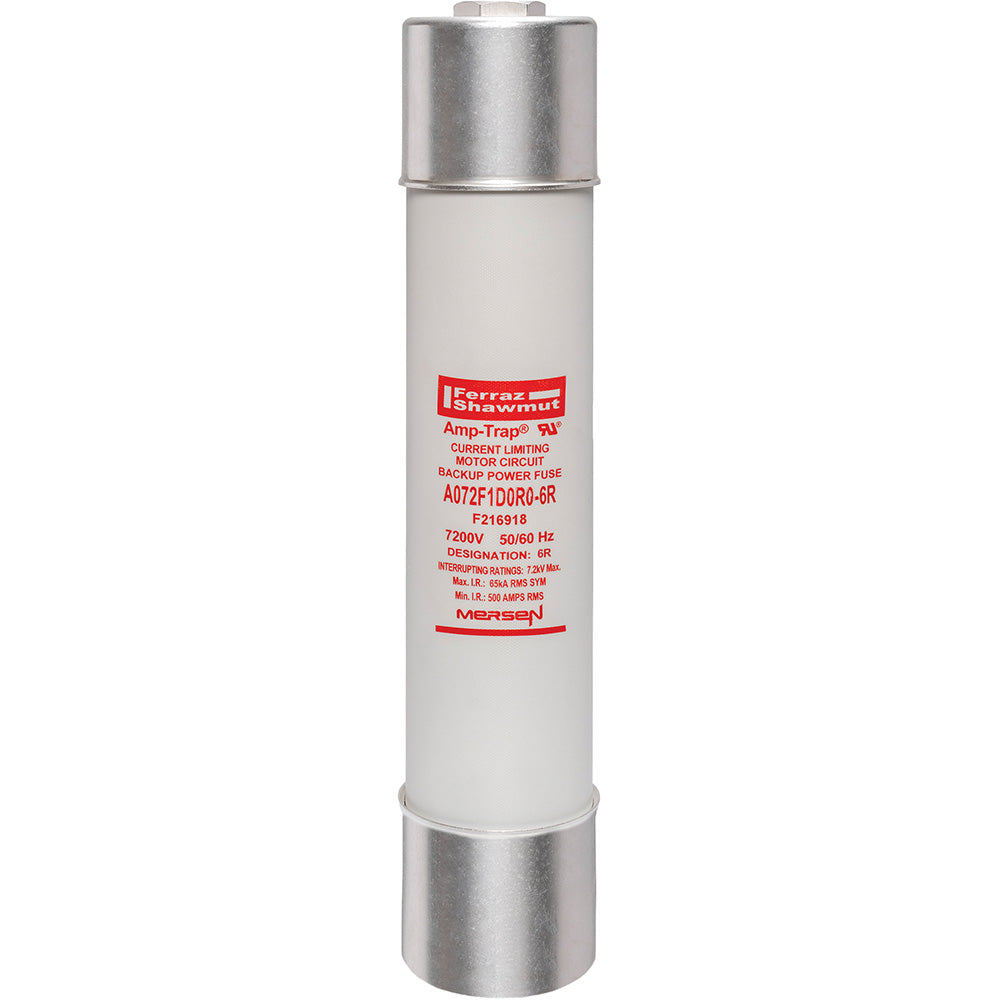

Ferraz Shawmut A072F1D0R0-6R - Medium Voltage Fuse 7200V/170A (50kA AIC)

Ferraz Shawmut A072F1D0R0-6R is a medium voltage fuse from the Amp-Trap Series designed for high-current circuit protection in industrial power systems. This Class R fuse features a 7200V voltage rating and 170A current rating, housed in a durable single-barrel construction with a 3-inch diameter and 12.5-inch clip center spacing. It meets stringent industry standards with a [email protected] interrupting capacity, providing reliable protection for transformers, motors, and switchgear in utility and heavy industrial applications.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (Class R)
• Voltage Rating: 7200V AC
• Current Rating: 170A
• Dimensions: 3" diameter, 12.5" clip center
• Standards: UL/ANSI compliant
• Applications: Transformer/motor protection, switchgear
• AIC rating: [email protected]
• Barrels: 1
• Weight: 11 lb

Product Identification

• UPC: 782001805104
• GTIN: 00782001805104
