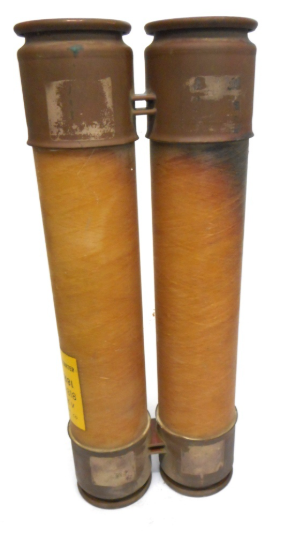

General Electric 9F60MJD818 - Class R Power Fuse 18A (50kA AIC @ 5.08kV)

The General Electric 9F60MJD818 is a medium-voltage current-limiting power fuse designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a voltage rating of 5080V and a continuous current rating of 18A, with an impressive interrupting capacity of 50kA at 5.08kV. The fuse is constructed with a robust two-barrel ferrule connection design, a 3-inch diameter, and a standardized 12-inch clip center spacing for consistent mounting. This Class R fuse complies with industry standards for medium-voltage protection, ensuring safe interruption of fault currents. It is typically applied in motor control centers, feeder circuits, and transformer protection within industrial power distribution networks.

Key Features & Specifications

• Type: Medium-voltage current-limiting power fuse, Class R, two-barrel design with ferrule connection
• Voltage Rating: 5080V AC
• Current Rating: 18A
• Dimensions: 3-inch diameter, 12-inch clip center
• Standards: Meets industry standards for Class R medium-voltage fuses
• Applications: Industrial power distribution, motor control centers, transformer protection, feeder circuits
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 2
• Clip Center: 12 inches
• Class Rating: R
• Weight: 17 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage
