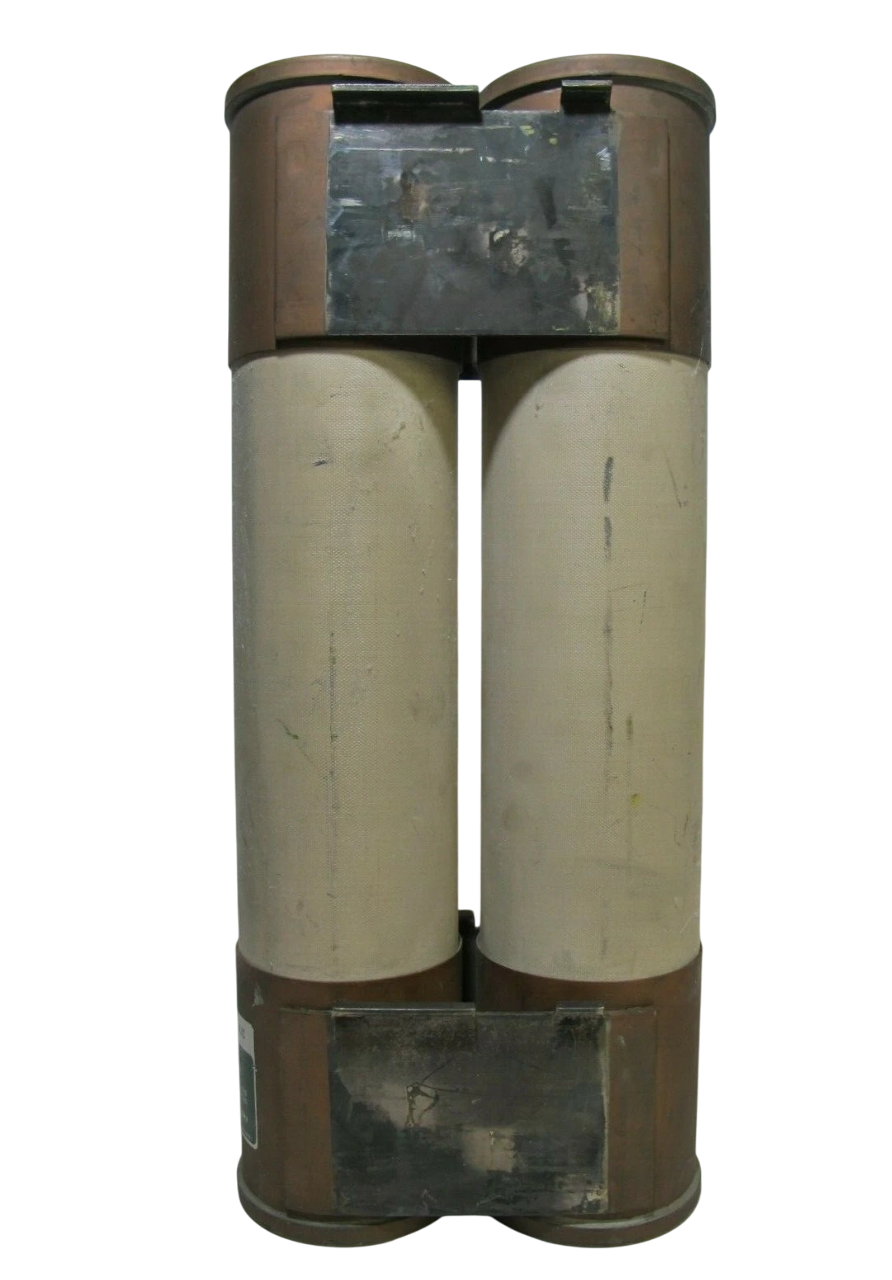

General Electric 9F60MCB224 - Medium Voltage Fuse 2540V/24A (Class R Dual-Barrel Design)

General Electric 9F60MCB224 is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 2540V AC rating with a 24A current capacity, housed in a durable 3-inch diameter dual-barrel construction with 7-inch clip centers for secure mounting. The Class R fuse meets stringent industry standards for interrupting capacity and features a 13 lb robust design for demanding electrical environments. Its current-limiting action provides reliable protection for transformers, capacitors, and medium-voltage switchgear applications.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with dual-barrel design
• Voltage Rating: 2540V AC
• Current Rating: 24A
• Dimensions: 3" diameter, 7" clip center spacing
• Standards: Class R interrupting rating
• Applications: Transformer/capacitor protection, switchgear
• Weight: 13 lb
• Barrels: 2
• Family: 9F60 Series
