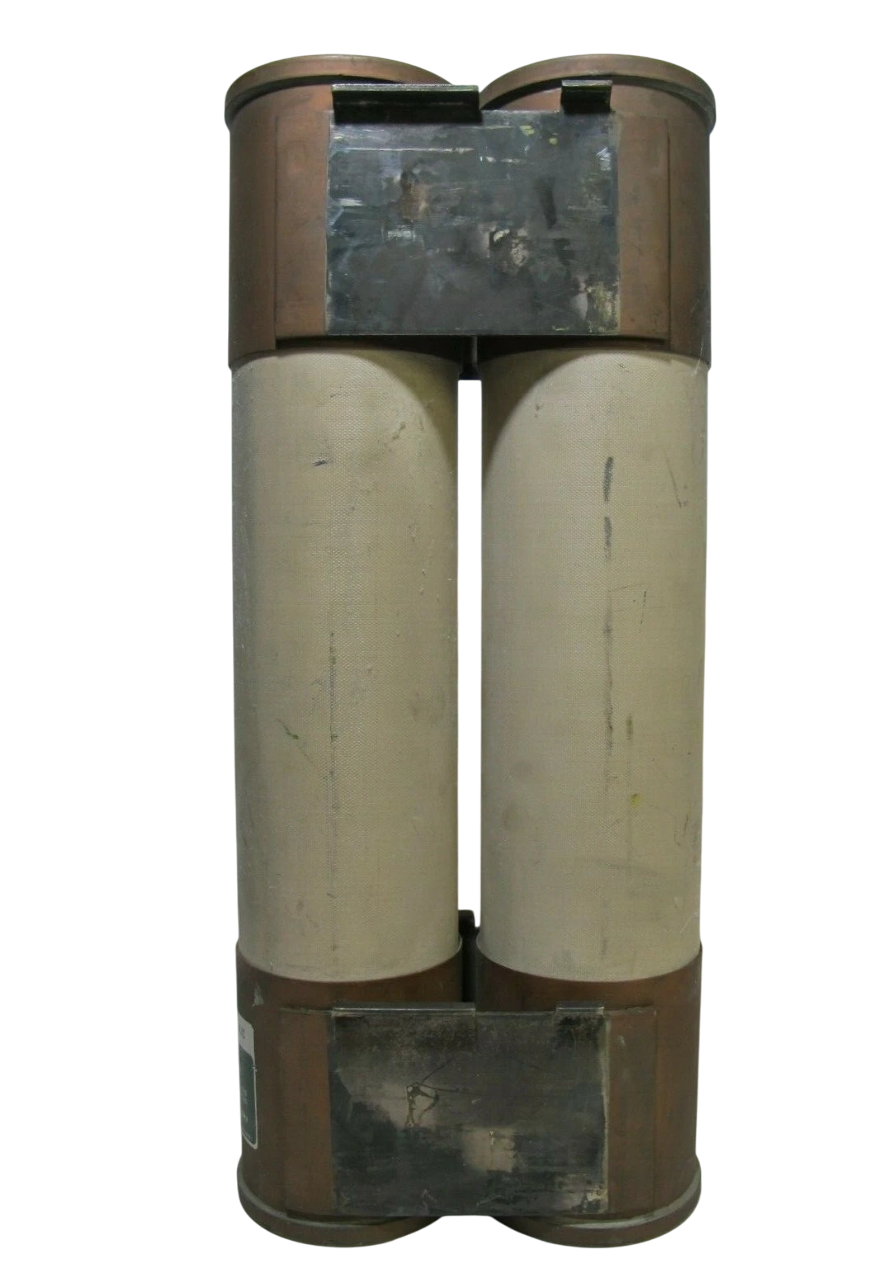

General Electric 9F60MCB218 - Class R Medium Voltage Fuse 18A 2540V (2-Barrel)

The General Electric 9F60MCB218 is a medium-voltage, current-limiting power fuse designed to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 2540V AC voltage rating and an 18A current rating, ensuring robust performance in demanding applications. The fuse is constructed with a durable two-barrel design, measures 3 inches in diameter with a 7-inch clip center spacing, and has a weight of 13 lb for secure mounting. This Class R fuse complies with industry standards for medium-voltage protection, offering enhanced safety by preventing the installation of lower-interrupting capacity fuses. It is typically applied in industrial power distribution, motor control centers, and feeder circuits requiring high-interrupting capacity.

Key Features & Specifications

• Type: Medium-voltage, current-limiting, power fuse, Class R, two-barrel design
• Voltage Rating: 2540V AC
• Current Rating: 18A
• Dimensions: 3-inch diameter, 7-inch clip center
• Standards: Meets industry standards for Class R medium-voltage fuses
• Applications: Industrial power distribution, motor control centers, feeder circuits
• Class Rating: R
• Barrels: 2
• Clip Center: 7 inches
• Weight: 13 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage
