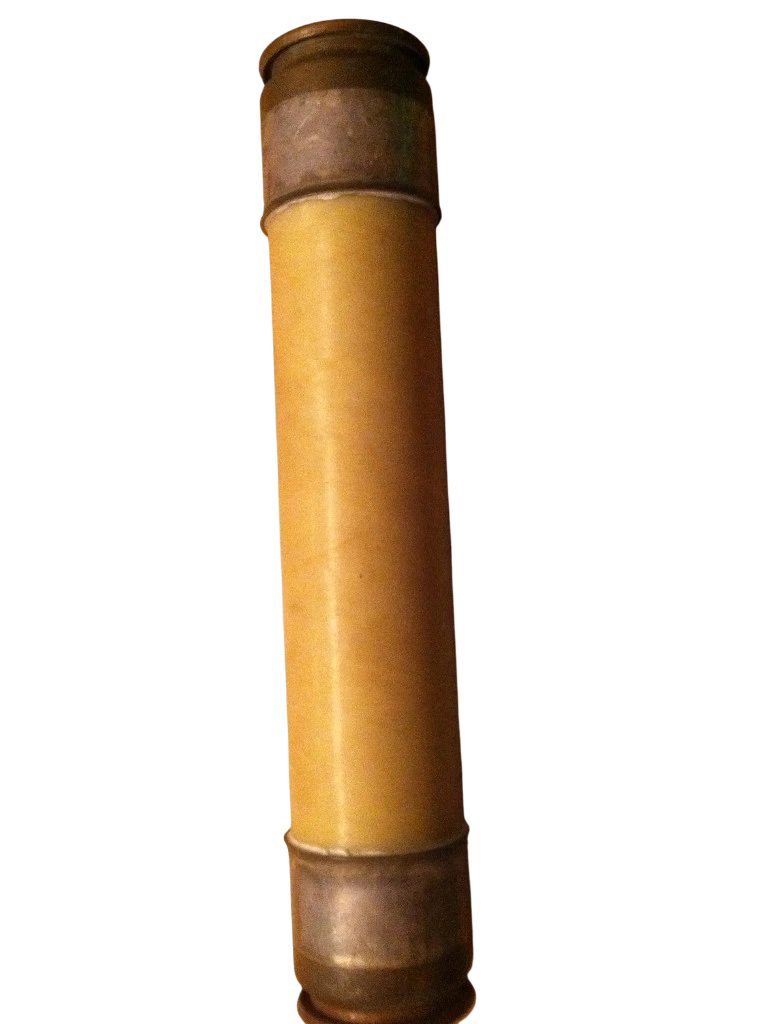

General Electric 9F60LJN106 - Medium Voltage Fuse 6A 5080V (Class R)

The General Electric 9F60LJN106 is a medium-voltage current-limiting fuse from the 9F60 Series, engineered to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 5080V voltage rating and a 6A current rating, ensuring robust performance in demanding high-voltage environments. The fuse is constructed with a single-barrel design featuring ferrule connections, a 3-inch diameter, and a 12-inch clip center spacing, contributing to its durable and compact form factor with a total weight of 9 lb. This Class R fuse complies with industry standards for medium-voltage applications, offering enhanced safety and interrupting ratings. It is typically applied in motor control centers, transformer protection, and feeder circuits where dependable medium-voltage protection is critical.

Key Features & Specifications

• Type: Medium Voltage, Current-Limiting, Single Barrel, Ferrule Connection
• Voltage Rating: 5080V AC
• Current Rating: 6A
• Dimensions: 3" Diameter, 12" Clip Center
• Standards: Class R
• Applications: Motor Control Centers, Transformer Protection, Feeder Circuits
• Fuse Class: R
• Connection: Ferrule
• Barrels: 1
• Weight: 9 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage
