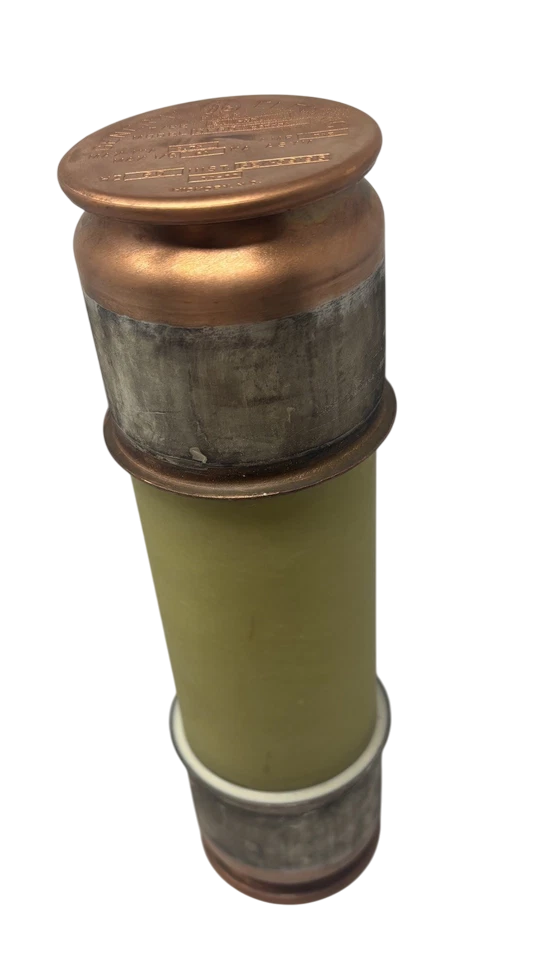

General Electric 9F60LJN103 - Medium Voltage Current-Limiting Fuse 3A 5080V (Class R Rated)

General Electric 9F60LJN103 is a medium-voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 5080V AC voltage rating and a 3A current rating, providing reliable overcurrent protection for medium-voltage circuits. The fuse construction utilizes a single-barrel design with ferrule connections, measuring 3 inches in diameter with a 12-inch clip center spacing and weighing 9 lb for robust mechanical integrity. This Class R fuse complies with industry standards for medium-voltage protection applications, ensuring safe operation in demanding environments. Typical applications include motor protection, transformer circuits, and feeder protection in industrial facilities and utility substations.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse, single-barrel design with ferrule connections
• Voltage Rating: 5080V AC
• Current Rating: 3A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: Class R rated for medium-voltage applications
• Applications: Industrial power distribution, motor protection, transformer circuits, feeder protection
• Class Rating: R
• Connection: Ferrule
• Barrels: 1
• Clip Center: 12 inches
• Weight: 9 lb
• Item Subcategory: Medium Voltage
• Family: 9F60 Series
