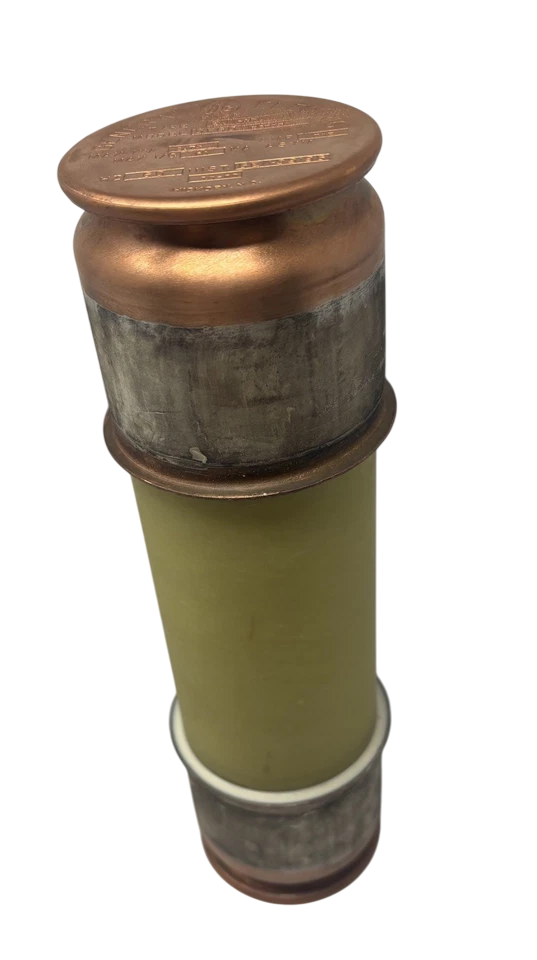

General Electric 9F60LJD809 - Medium Voltage Fuse 9A 5080V (Class R)

The General Electric 9F60LJD809 is a medium-voltage, current-limiting fuse from the 9F60 Series, engineered to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 5080V AC voltage rating and a 9A current rating, ensuring robust performance in demanding high-voltage environments. The fuse is constructed with a single-barrel design featuring ferrule connections, a 3-inch diameter, and a 12-inch clip center spacing, contributing to its durable and compact form factor with a total weight of 9 lb. This Class R fuse is designed to meet stringent industry standards for medium-voltage applications, providing enhanced safety and interrupting capacity. Its typical applications include protecting transformers, motors, and feeders in utility and industrial power distribution networks.

Key Features & Specifications

• Type: Medium Voltage, Current-Limiting, Single Barrel, Ferrule Connection, Class R
• Voltage Rating: 5080V AC
• Current Rating: 9A
• Dimensions: 3" Diameter, 12" Clip Center
• Standards: Meets industry standards for medium-voltage fuses
• Applications: Transformer, Motor, and Feeder Protection in Industrial Power Distribution
• Class Rating: R
• Connection: Ferrule
• Barrels: 1
• Weight: 9 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage
