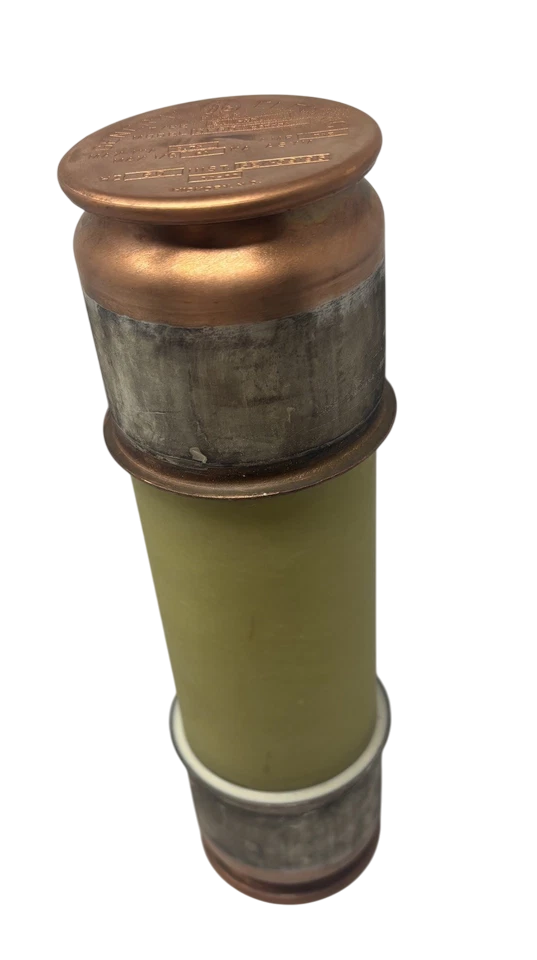

General Electric 9F60LJD806 - Medium Voltage Fuse 6A 5080V (Class R)

The General Electric 9F60LJD806 is a medium-voltage current-limiting fuse designed to provide reliable overcurrent protection for industrial electrical systems. It features a 5080V voltage rating and a 6A current rating, ensuring robust performance in demanding high-voltage applications. The fuse is constructed with a single-barrel ferrule connection, measures 3 inches in diameter with a 12-inch clip center, and has a weight of 9 lb for stable installation. This Class R fuse complies with industry standards for medium-voltage protection, offering enhanced safety and interrupting ratings. It is typically applied in industrial power distribution, motor control centers, and transformer protection circuits where precise coordination and high fault current interruption are critical.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse, single-barrel construction with ferrule connection
• Voltage Rating: 5080V AC
• Current Rating: 6A
• Dimensions: 3-inch diameter, 12-inch clip center
• Standards: Meets industry standards for Class R fuses
• Applications: Industrial power distribution, motor control centers, transformer protection
• Class Rating: R
• Connection: Ferrule
• Barrels: 1
• Weight: 9 lb
