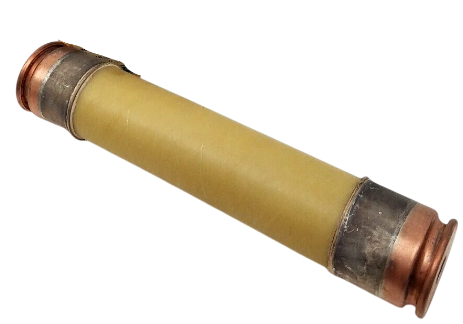

General Electric 9F60LJD804 - Class R Fuse 130A (50kA AIC @ 5.08kV)

The General Electric 9F60LJD804 is a medium-voltage current-limiting power fuse designed to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 130A current rating and a 5080V voltage rating, engineered to interrupt fault currents up to 50kA at 5.08kV. The fuse is constructed with a single-barrel design featuring ferrule connections and a 12-inch clip center spacing, housed in a robust unit with a 3-inch diameter and a weight of 4 lb. This Class R fuse complies with industry standards for medium-voltage protection, ensuring safe operation in demanding environments. It is typically applied in industrial power distribution, motor protection circuits, and feeder protection applications where high interrupting capacity is required.

Key Features & Specifications

• Type: Medium-voltage current-limiting power fuse, single-barrel, ferrule connection
• Voltage Rating: 5080V AC
• Current Rating: 130A
• Dimensions: 3-inch diameter, 12-inch clip center
• Standards: Class R
• Applications: Industrial power distribution, motor protection, feeder protection
• AIC rating: [email protected]
• Weight: 4 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage
