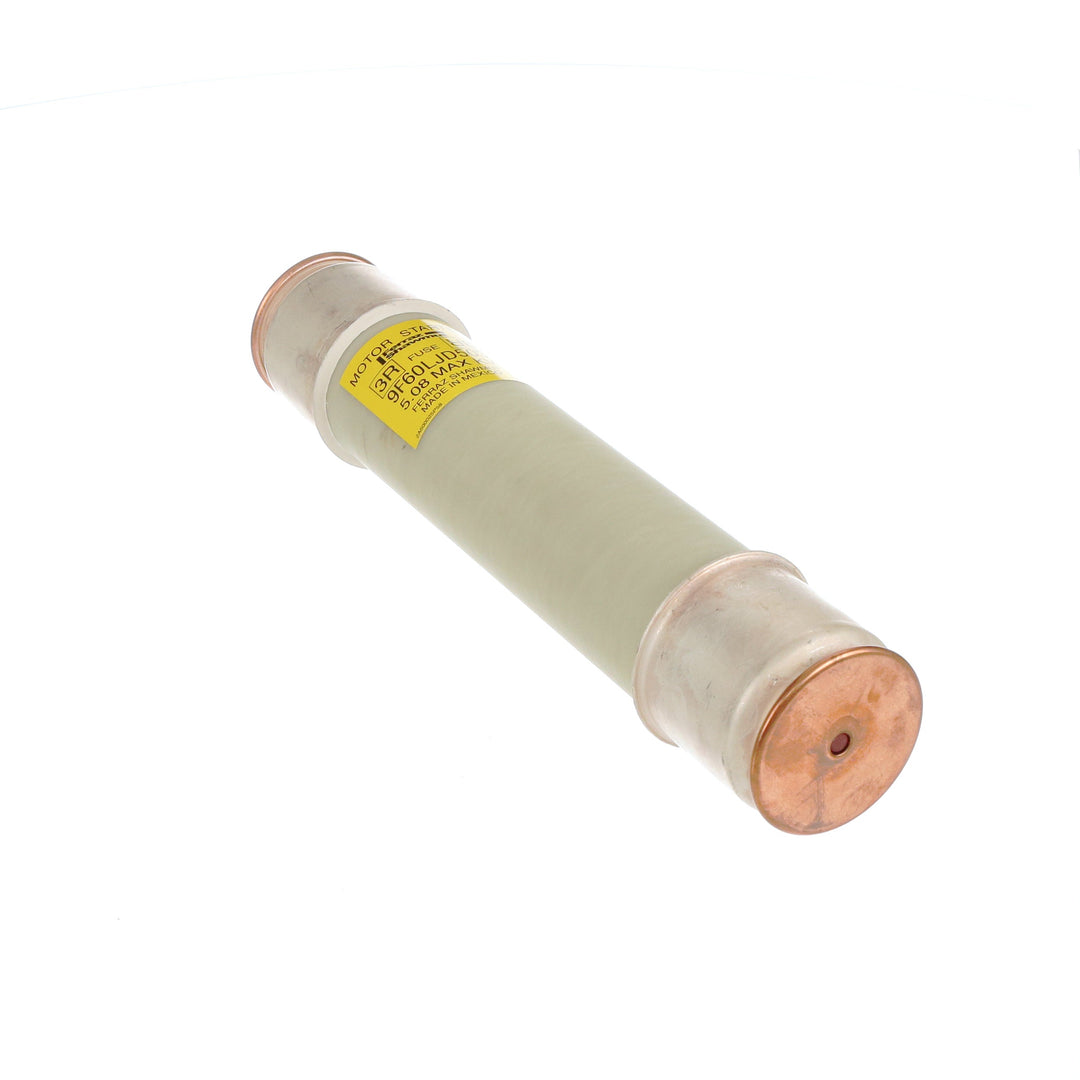

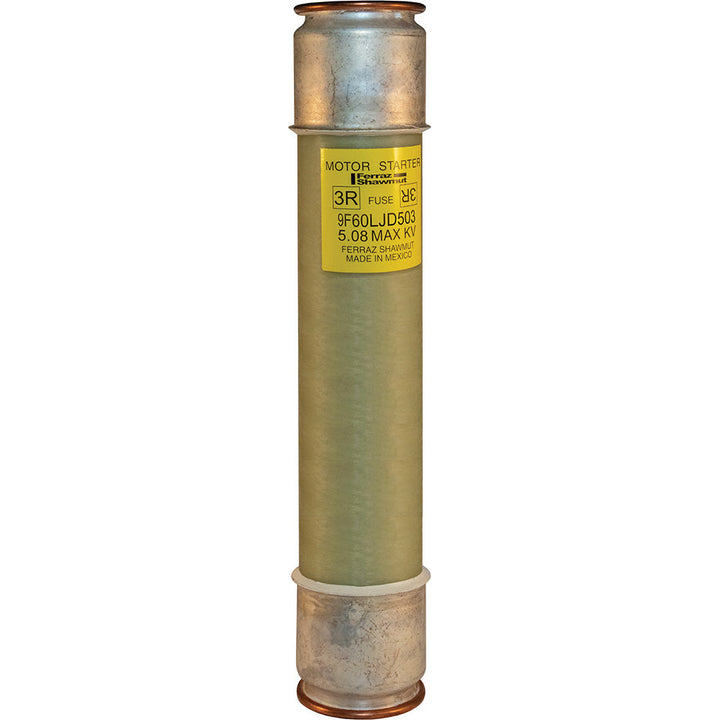

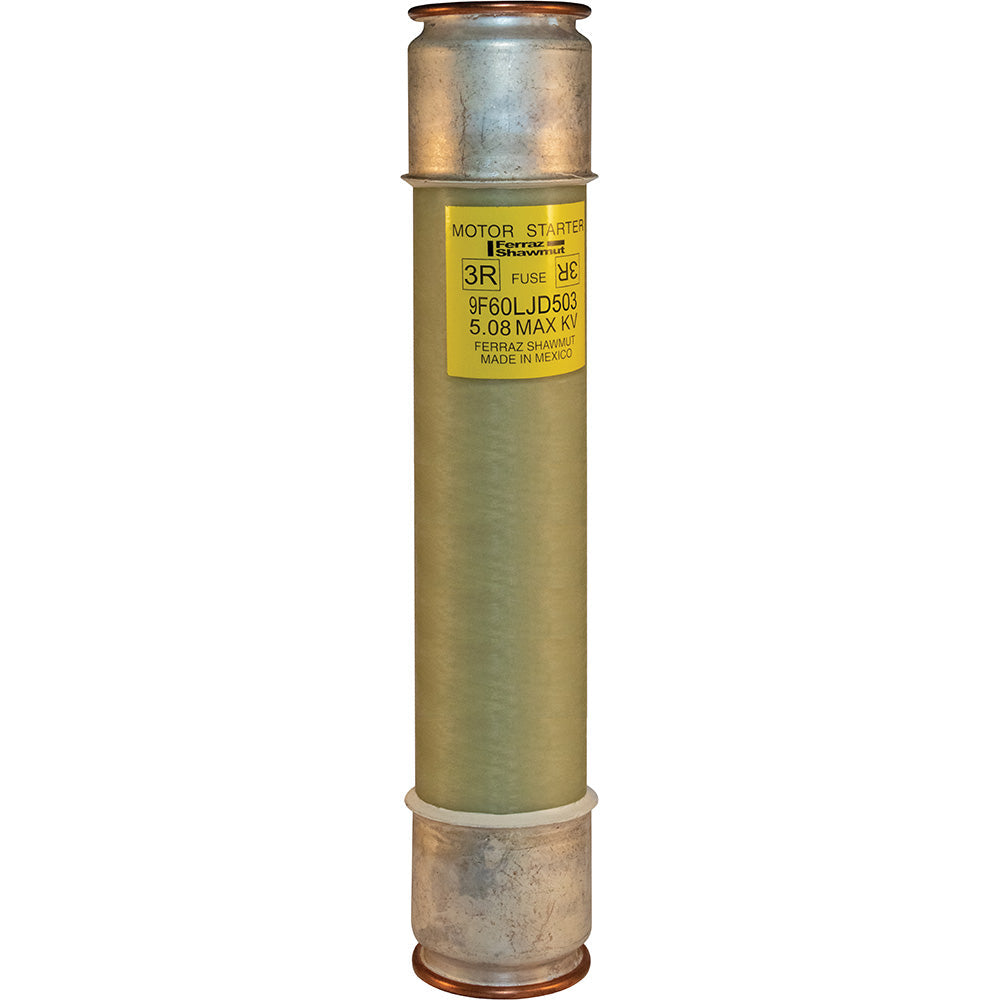

General Electric 9F60LJD503 - EJ-2 Medium Voltage Fuse 100A@5080V (50kA AIC)

General Electric 9F60LJD503 is a medium-voltage fuse designed for high-current circuit protection in industrial power distribution systems. This EJ-2 class R fuse features a 5080V voltage rating and 100A current capacity, housed in a durable ferrule-connected design with 3" diameter and 12" clip center spacing. Constructed with UL-certified Amp-Trap technology (UL Files E93367 & E191980), it delivers 50kA interrupting capacity at 5.08kV for reliable fault protection. The single-barrel fuse meets stringent industry standards for medium-voltage applications including switchgear, transformers, and motor control centers.

Key Features & Specifications

• Type: EJ-2 Class R medium-voltage current-limiting fuse
• Voltage Rating: 5080V AC
• Current Rating: 100A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: UL Files E93367 (Amp-Trap), E191980 (9F60 Series)
• Applications: Industrial power distribution, switchgear protection
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 1
• Class Rating: R
• Weight: 4 lb

Product Identification

• UPC: 782001396183
• GTIN: 00782001396183
