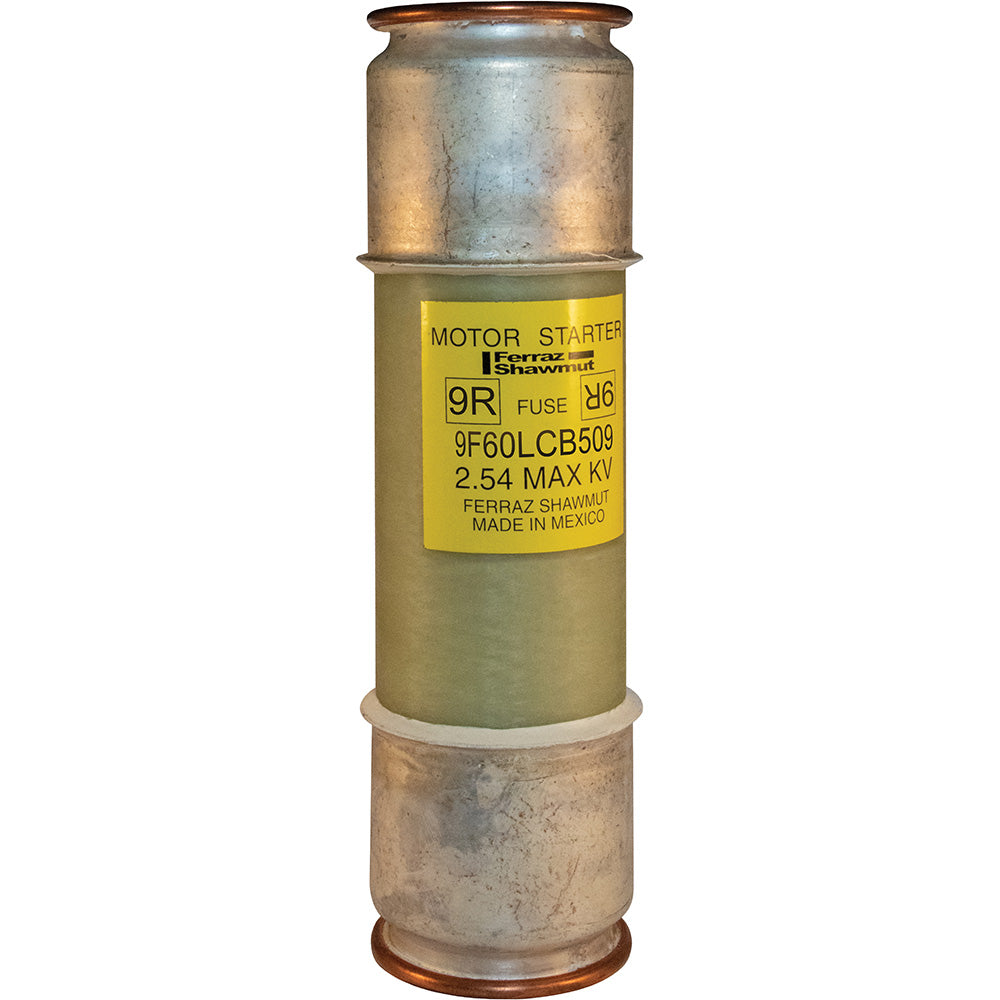

General Electric 9F60LCB509 - EJ-2 Medium Voltage Fuse (2400V 200A Class R)

General Electric 9F60LCB509 is a medium-voltage fuse designed for high-current circuit protection in industrial power distribution systems. This EJ-2 class R fuse features a 2400V AC rating with 200A current capacity and 50kA interrupting rating at 2.4kV, housed in a durable ferrule-connected design with 7-inch clip centers. The 10.88-inch long fuse body with 3-inch diameter construction meets UL standards (File E93367 for Amp-Trap and E191980 for 9F60 series) for reliable operation in demanding environments. Typical applications include motor control centers, transformers, and feeder circuits requiring R-class protection characteristics.

Key Features & Specifications

• Type: EJ-2 class R medium-voltage fuse with ferrule connection
• Voltage Rating: 2400V AC
• Current Rating: 200A
• Dimensions: 10.88 in length x 3 in diameter
• Standards: UL File E93367 (Amp-Trap), UL File E191980 (9F60)
• Applications: Industrial power distribution, motor protection
• AIC rating: [email protected]
• Class Rating: R
• Connection: Ferrule
• Barrels: 1
• Clip Center: 7 inches
• Weight: 2 lb

Product Identification

• UPC: 782001396091
• GTIN: 00782001396091
