Federal Pacific 225-007-975 - Amp-Trap Medium Voltage Fuse [email protected] (50kA AIC)
Regular price
$0.00
$0.00
Regular price
Sale price
$0.00
$0.00
Save $0
/
- In stock, ready to ship
- Backordered, shipping soon

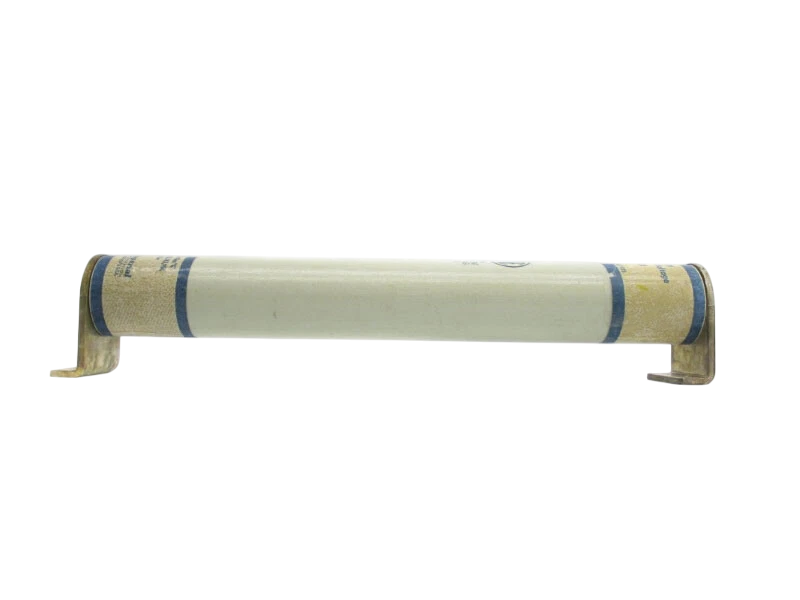

Federal Pacific 225-007-975 is a medium-voltage Amp-Trap fuse designed for high-current circuit protection in industrial power systems. This Class E-rated fuse operates at 15.5kV with an 80A current rating and 50kA interrupting capacity, featuring a robust Clip-Lock connection for secure mounting. Its single-barrel construction measures 3" in diameter with 21.25" clip centers, weighing 16 lb for durable performance in demanding environments. Compliant with industry standards for medium-voltage protection, it's commonly used in utility substations, industrial switchgear, and heavy machinery power distribution.
Key Features & Specifications
Key Features & Specifications
- Type: Medium-voltage current-limiting fuse with silver-sand element
- Voltage Rating: 15,500V AC
- Current Rating: 80A
- Dimensions: 3" diameter, 21.25" clip center spacing
- Standards: ANSI/IEEE C37.40-2003, C37.41-2008
- Applications: Industrial switchgear, transformer protection, utility distribution
- Class Rating: E
- Connection: Clip-Lock
- Barrels: 1
- AIC rating: 50kA at 15.5kV
- Weight: 16 lb
