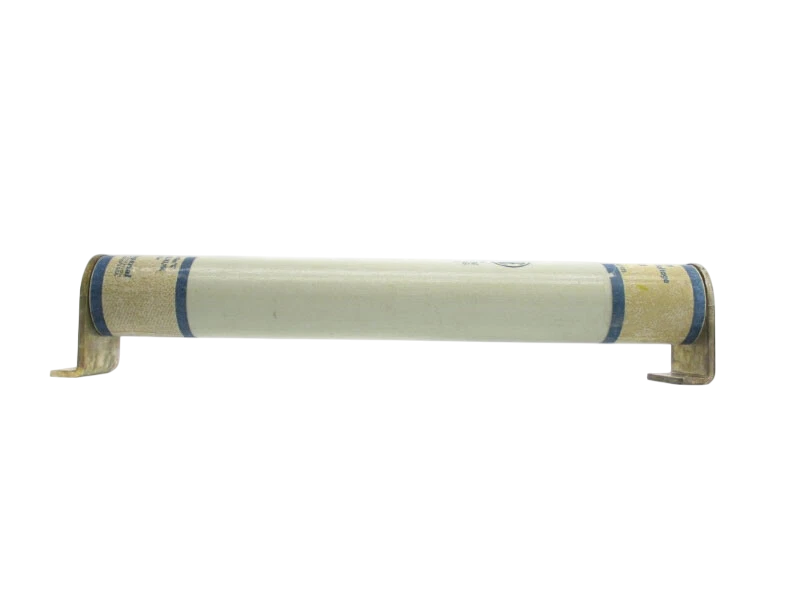

Ferraz Shawmut 225-007-969 - Medium Voltage Fuse 20A 15.5kV (Class E, 50kA AIC)

Ferraz Shawmut 225-007-969 is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power systems. This Class E rated fuse operates at 15.5kV with a 20A current rating and provides 50kA interrupting capacity at 15.5kV for reliable circuit protection. The single-barrel construction features a 3-inch diameter with Clip-Lock connection terminals spaced at 18.25-inch centers and weighs 15 lb for robust industrial durability. Engineered to meet industry standards for medium voltage applications, this Amp-Trap series fuse delivers superior performance in demanding electrical environments including industrial plants, utility substations, and large commercial facilities where high-voltage circuit protection is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel construction with Clip-Lock connection
• Voltage Rating: 15,500V AC
• Current Rating: 20A
• Dimensions: 3-inch diameter, 18.25-inch clip center spacing
• Standards: Class E rated for medium voltage applications
• Applications: Industrial power systems, utility substations, commercial facilities
• AIC rating: [email protected]
• Connection: Clip-Lock
• Barrels: 1
• Class Rating: E
• Weight: 15 lb
• Family: Amp-Trap
• Item Subcategory: Medium Voltage
