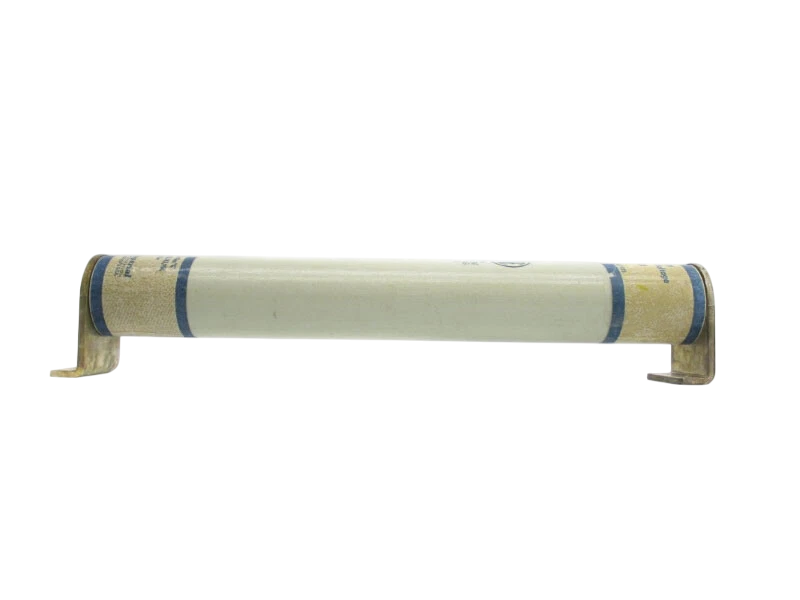

Ferraz Shawmut 225-007-954 - Medium Voltage Fuse 500A@5500V (50kA AIC Rating)

Ferraz Shawmut 225-007-954 is a medium-voltage Amp-Trap fuse designed for high-current circuit protection in industrial power systems. This Class E-rated fuse operates at 5500V with a 500A current rating, featuring a robust 2-barrel Clip-Lock connection system for secure installation. The fuse measures 3" in diameter with a 21.25" clip center spacing and weighs 45 lb, constructed for durability in demanding environments. It meets industry standards with a [email protected] AIC rating for reliable fault interruption. Typical applications include motor control centers, transformers, and heavy industrial equipment requiring medium-voltage protection.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, 2-barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 500A
• Dimensions: 3" diameter, 21.25" clip center spacing
• Weight: 45 lb
• Standards: [email protected] AIC rating
• Applications: Industrial power systems, motor control, transformers
• Connection: Clip-Lock
• Family: Amp-Trap
