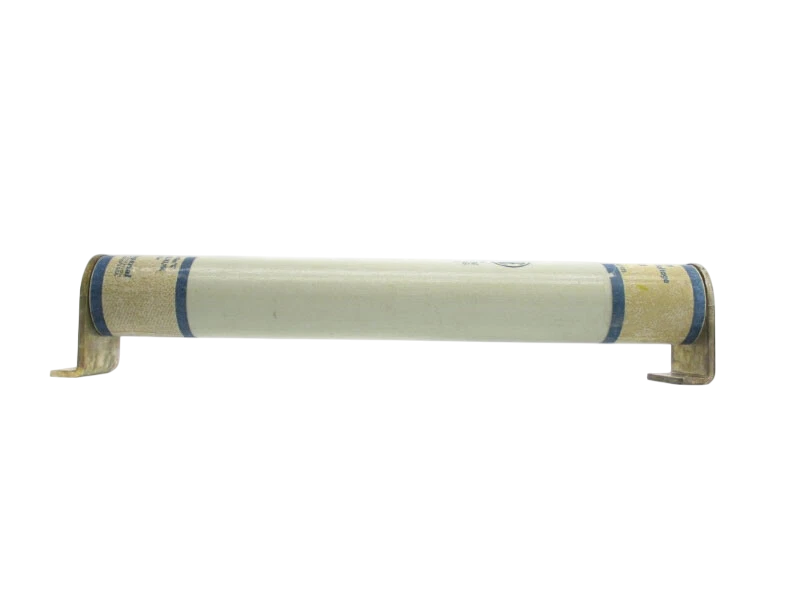

Ferraz Shawmut 225-007-946 - Amp-Trap Medium Voltage Fuse 100A@5500V (50kA AIC)

Ferraz Shawmut 225-007-946 is a medium-voltage Amp-Trap fuse designed for high-interrupting-capacity circuit protection in industrial power systems. This Class E-rated fuse operates at 5500V with a 100A current rating, featuring a robust Clip-Lock connection and a single-barrel construction for secure mounting. Its 3-inch diameter, 14 lb design ensures durability, while the [email protected] AIC rating provides reliable fault current interruption. Compliant with industry standards for medium-voltage protection, this fuse is commonly used in transformer protection, motor circuits, and switchgear applications.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with sand-filled quartz construction
• Voltage Rating: 5500V AC
• Current Rating: 100A
• Dimensions: 3" diameter, 15.25" clip center spacing
• Standards: ANSI/IEEE C37.40-2003, C37.41-2008
• Applications: Industrial switchgear, transformer protection, motor circuits
• Class Rating: E
• Connection: Clip-Lock
• Barrels: 1
• AIC rating: [email protected]
• Weight: 14 lb
