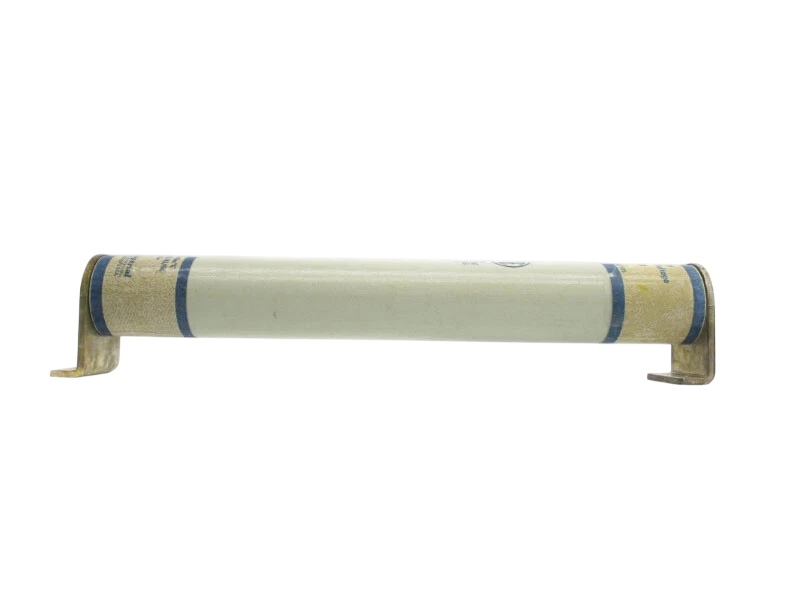

Ferraz Shawmut 225-007-945 - Amp-Trap Medium Voltage Fuse 5500V 80A (50kA AIC @15.5kV)

Ferraz Shawmut 225-007-945 is a medium-voltage Amp-Trap fuse designed for high-current circuit protection in industrial power systems. It features a 5500V voltage rating and 80A current rating, housed in a durable single-barrel clip-lock design with a 3-inch diameter and 15.25-inch clip center spacing. The fuse meets Class E standards with a 50kA interrupting capacity at 15.5kV, ensuring reliable protection for medium-voltage switchgear, transformers, and motor circuits in demanding industrial environments.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse, single-barrel construction with clip-lock terminals
• Voltage Rating: 5500V AC
• Current Rating: 80A
• Dimensions: 3" diameter, 15.25" clip center spacing
• Standards: Class E rated
• Applications: Industrial switchgear, transformers, motor protection
• AIC rating: [email protected]
• Connection: Clip-Lock
• Weight: 14 lb
