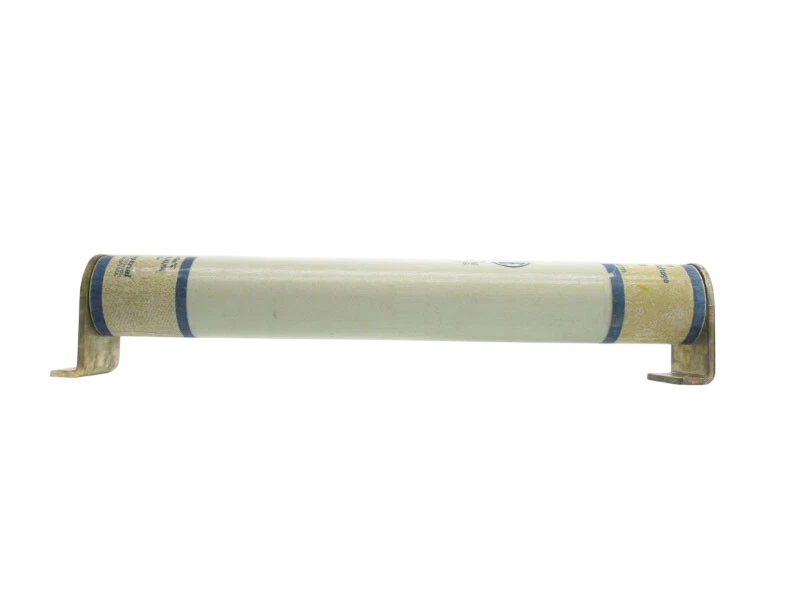

Ferraz Shawmut 225-007-941 - Amp-Trap Medium Voltage Fuse 5500V 30A (50kA AIC)
Regular price
$0.00
$0.00
Regular price
Sale price
$0.00
$0.00
Save $0
/
- In stock, ready to ship
- Backordered, shipping soon
Ferraz Shawmut 225-007-941 is a medium-voltage Amp-Trap fuse designed for high-interrupting-capacity circuit protection in industrial power systems. Rated for 5500V AC operation with a 30A current rating, this Class E fuse features a robust Clip-Lock connection and a single-barrel design for secure mounting. Its 3-inch diameter construction delivers a 50kA interrupting capacity at 15.5kV, meeting stringent industrial protection requirements for transformer and motor circuit applications.
Key Features & Specifications
Key Features & Specifications
- Type: Medium-voltage current-limiting fuse with quartz sand filler
- Voltage Rating: 5500V AC
- Current Rating: 30A
- Dimensions: 3" diameter, 15.25" clip center spacing
- Standards: Class E rating per IEEE/ANSI
- Applications: Transformer/motor protection, switchgear
- AIC rating: [email protected]
- Connection: Clip-Lock
- Barrels: 1
- Weight: 14 lb
