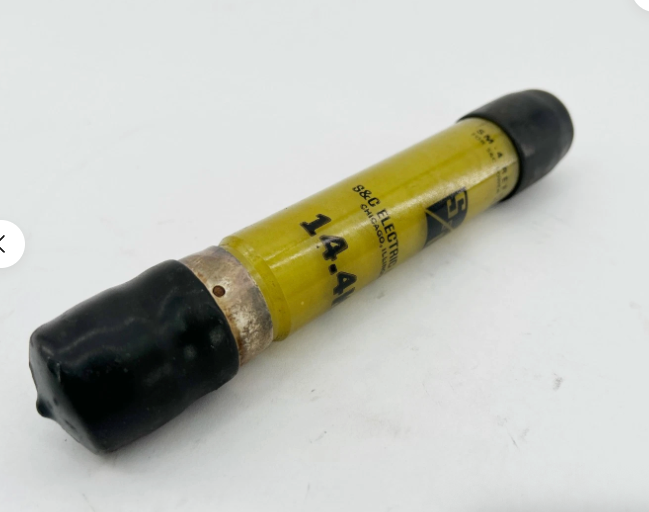

S&C Electric 122001R3 - SM-4 Medium Voltage Fuse 14.4kV Class E (1A Current Rating)

S&C Electric 122001R3 is a medium-voltage SM-4 current-limiting fuse designed for reliable circuit protection in electrical distribution systems. It features a 14.4 kV voltage rating and 1 A current rating, providing precise overcurrent protection for sensitive equipment. The fuse utilizes a silver-sand construction within a durable ceramic body with standard velocity interruption characteristics and weighs 2 lb for robust performance. This Class E rated fuse complies with industry standards for medium-voltage applications, ensuring safe operation in demanding environments. Typical applications include protection of transformers, capacitors, and feeders in utility and industrial power systems.

Key Features & Specifications

• Type: SM-4 current-limiting fuse with silver-sand construction and ceramic body
• Voltage Rating: 14,400 V AC
• Current Rating: 1 A
• Dimensions: Standard SM-4 configuration
• Standards: Meets industry standards for medium-voltage fuses
• Applications: Transformer protection, capacitor banks, feeder circuits
• Switch Type: Not applicable
• Configuration: Current-limiting
• Coil Voltage Maximum: Not applicable
• Temp Rating: Standard operating temperature range
• Shipping Dimensions: Standard SM-4 package
• Phase: Single
• Voltage: 14,400 V
• Amperage: 1 A
• AIC rating: High interrupting capacity
• Connection: Standard fuse clip
• Poles: Single
• Protection: Overcurrent and short-circuit
• Functions: Circuit interruption
