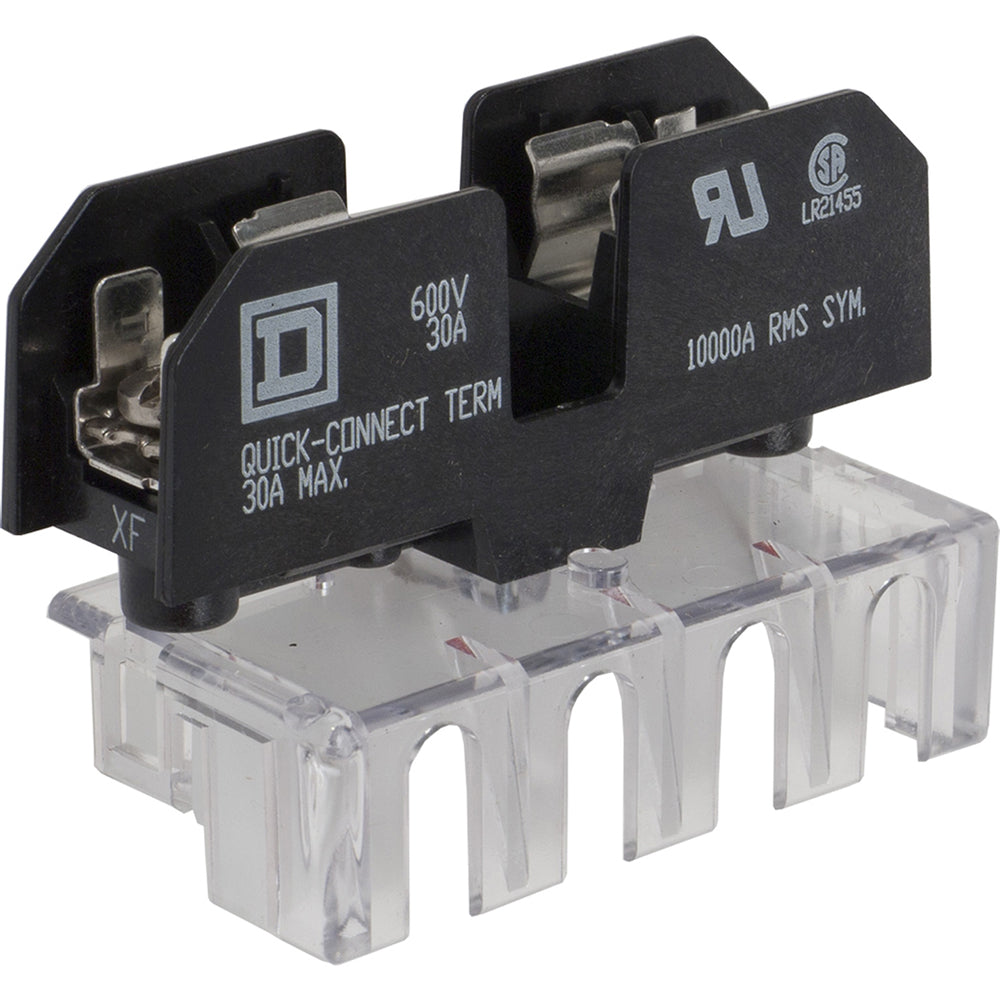

Square D 9070FB1A - Class H Fuse Block 600V AC/250V DC (Phenolic Housing)

Square D 9070FB1A is a fuse block designed for industrial circuit protection applications. This UL-listed component features a 600V AC/250V DC voltage rating and accommodates Class H fuses for reliable overcurrent protection. The unit's compact phenolic housing measures 2.5" x 1.75" x 2.25" (63.5mm x 44.5mm x 57.2mm) with screw terminal connections, meeting NEC and NEMA standards for electrical safety. Its robust construction ensures compliance with industrial protection requirements, making it suitable for motor control centers, panelboards, and power distribution systems.

Key Features & Specifications

• Type: Class H fuse block with phenolic housing
• Voltage Rating: 600V AC/250V DC
• Current Rating: Compatible with Class H fuses up to 600A
• Dimensions: 2.5" x 1.75" x 2.25" (63.5mm x 44.5mm x 57.2mm)
• Standards: UL Listed, NEC/NEMA compliant
• Applications: Motor control centers, industrial panelboards
• Terminal Type: Screw connections
• Material: Phenolic resin construction
• Mounting: Panel or DIN rail installation
• Country of Origin: United States

Product Identification

• UPC: 785901907282
• GTIN: 785901907282
