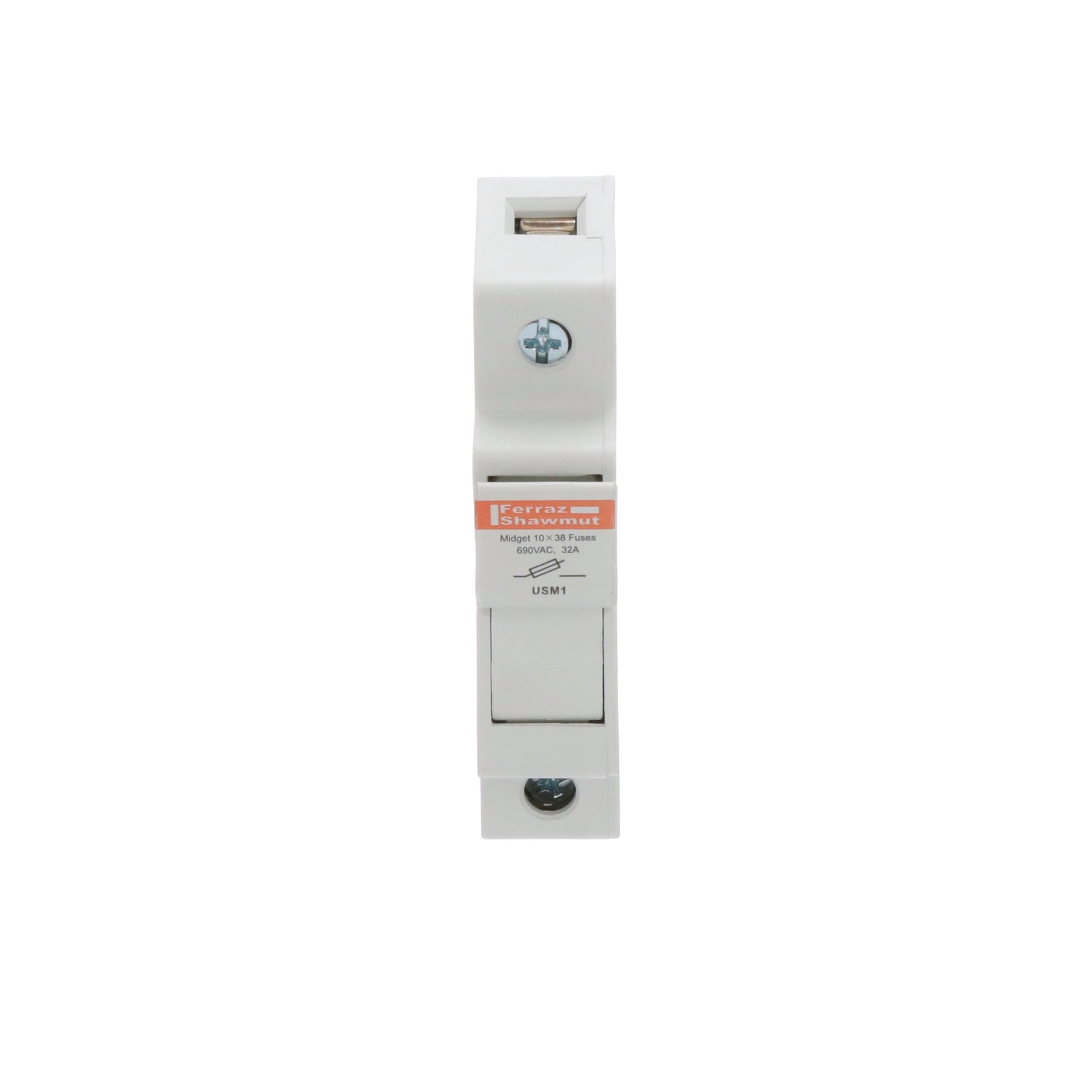

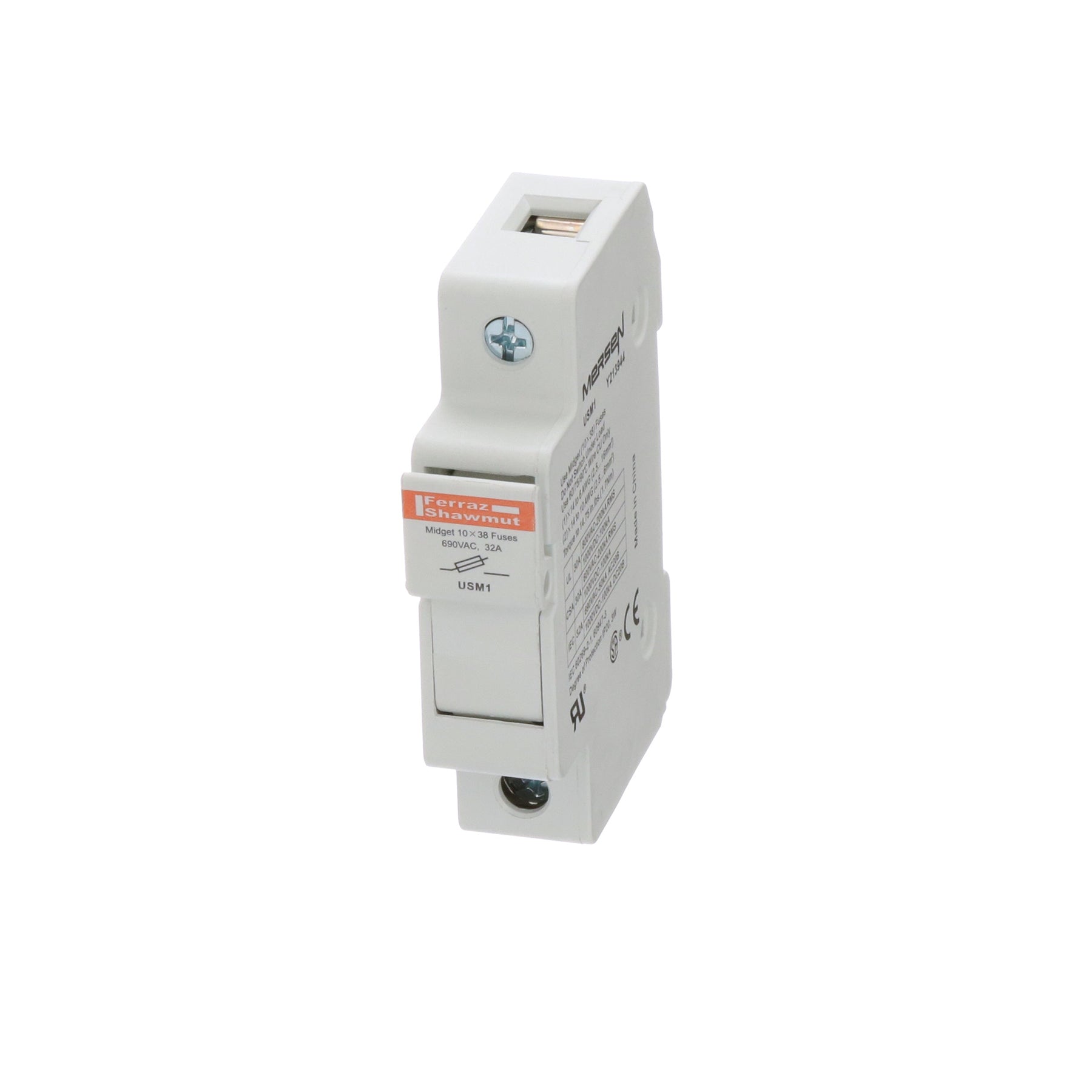

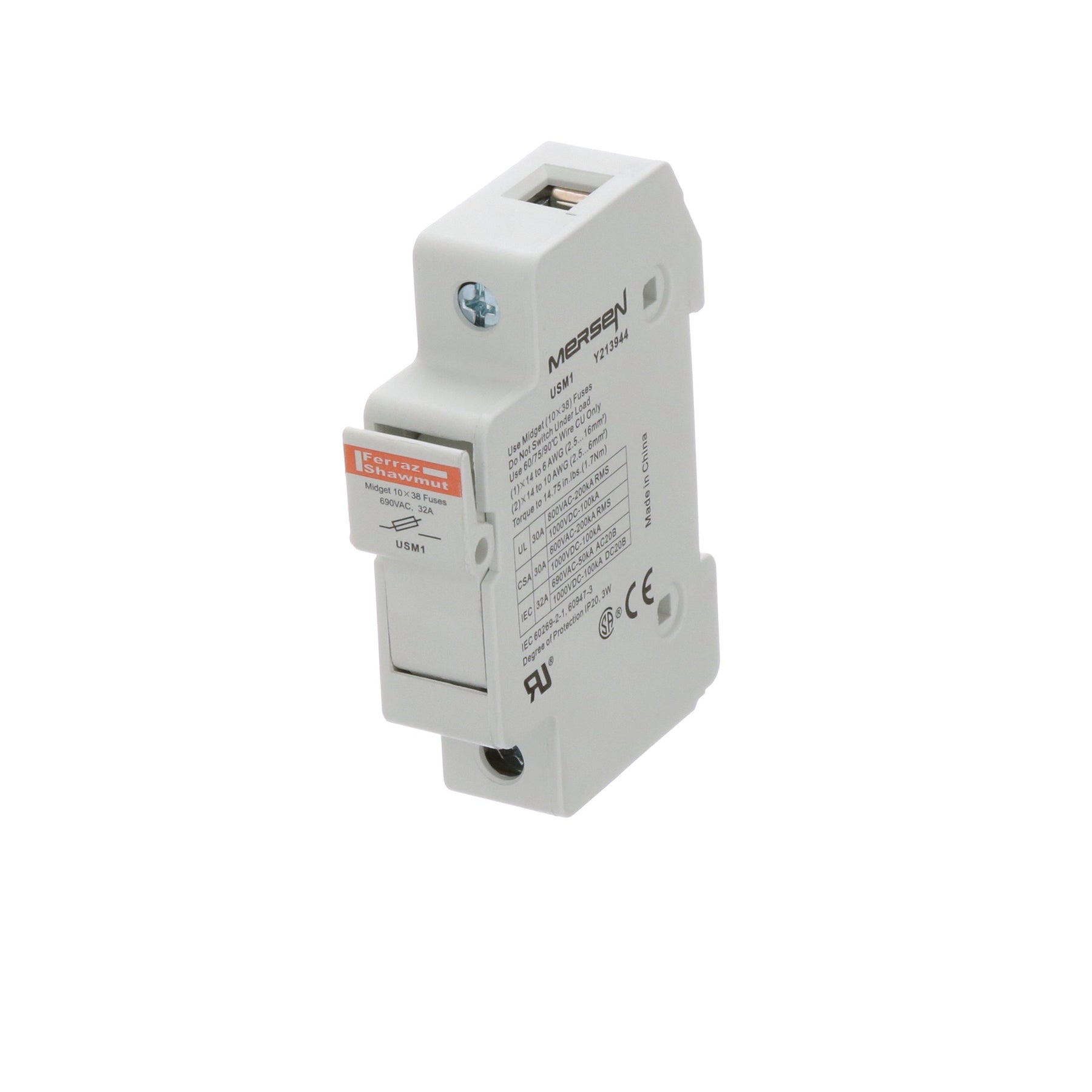

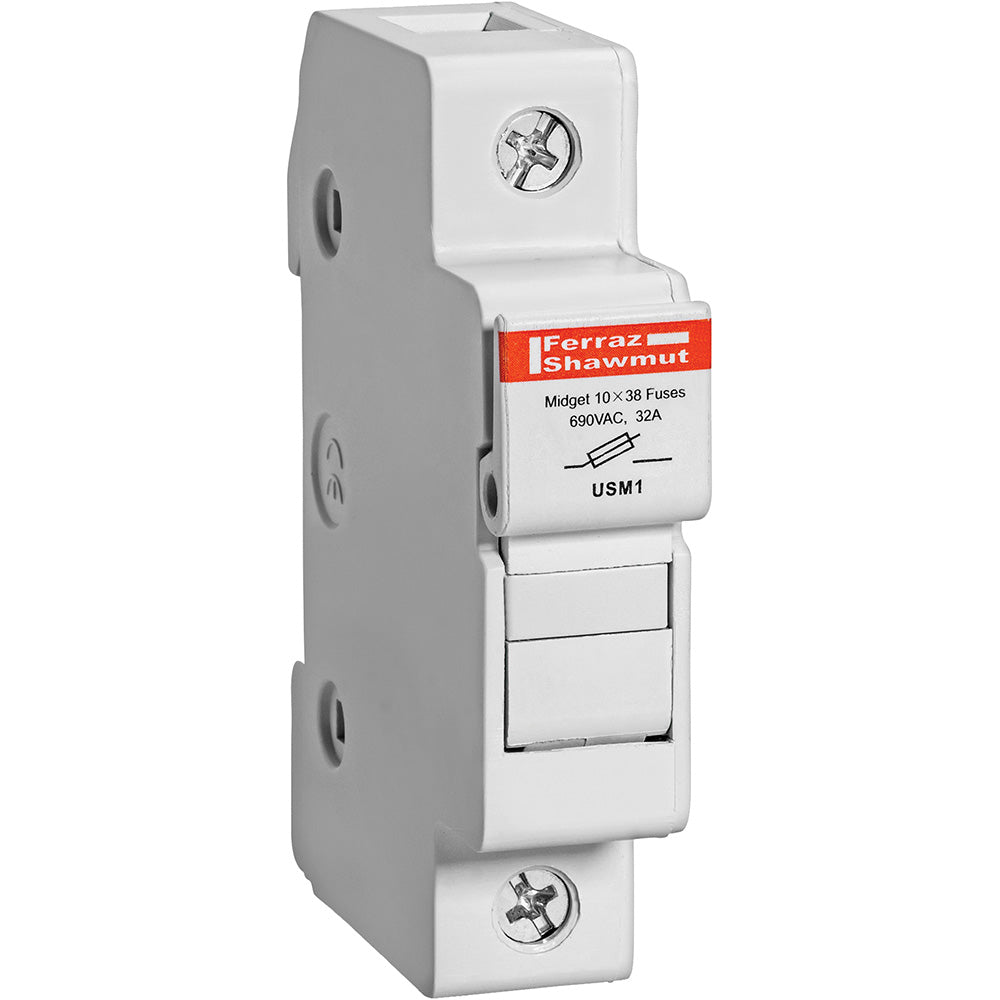

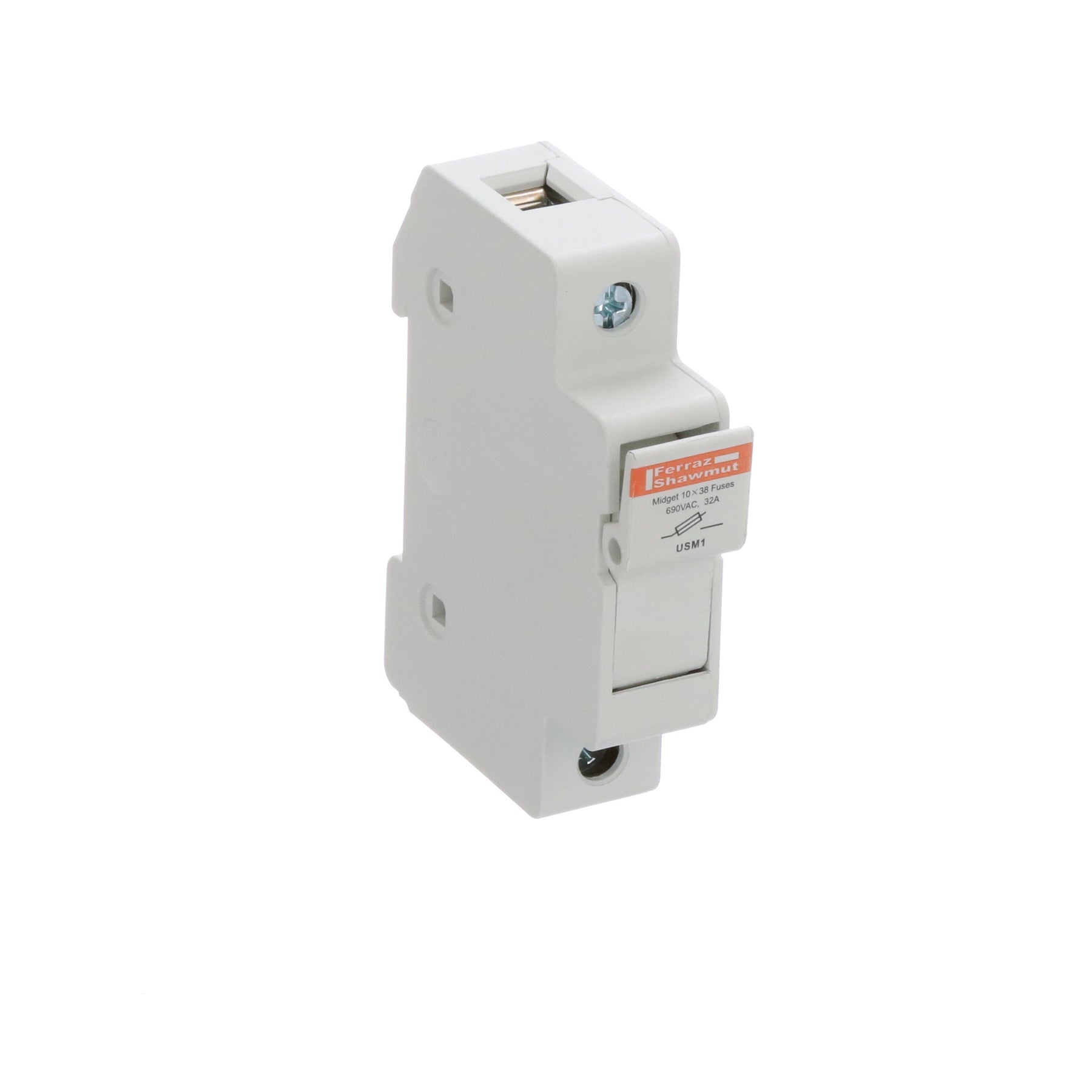

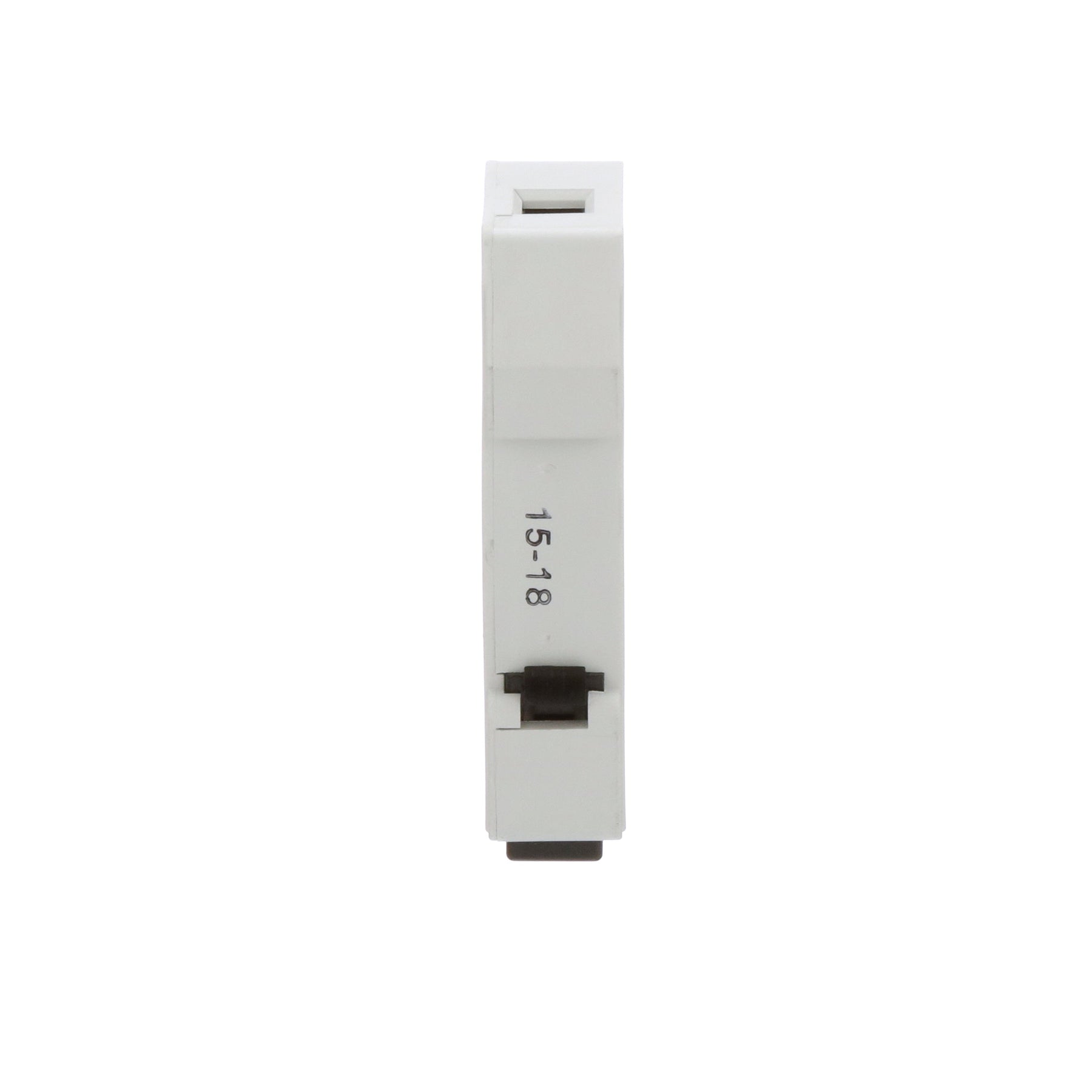

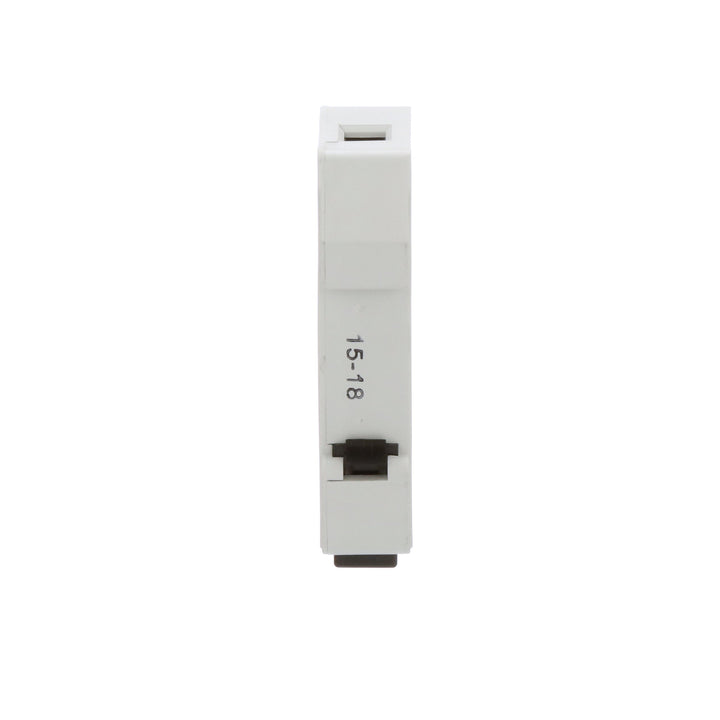

Mersen USM1 - Fuse Block 600V AC/DC (CSA, UL Listed)

The Mersen USM1 is a fuse block designed for safe and reliable circuit protection in industrial applications. It accommodates standard USM fuses with voltage ratings up to 600V AC/DC and current ratings as required by the installed fuse. The unit features a compact design measuring 0.69 x 3.07 x 2.32 inches and a lightweight 0.09 lb construction for efficient panel space utilization. This fuse block is CSA Certified and UL Listed, ensuring compliance with North American safety standards for use in control circuits, machinery, and power distribution systems.

Key Features & Specifications

• Type: Fuse Block, Ultrasafe Family, USM Type
• Voltage Rating: 600V AC/DC
• Current Rating: Dependent on installed USM fuse
• Dimensions: 0.69 in x 3.07 in x 2.32 in (17.5 mm x 78 mm x 58.9 mm)
• Weight: 0.09 lb (0.04 kg)
• Standards: CSA Certified, UL Listed
• Applications: Industrial control circuits, machinery, power distribution
• Certification: CSA Certified, UL Listed
• Mounting: Panel mount

Product Identification

• UPC: 782001829964
• GTIN: 00782001829964
