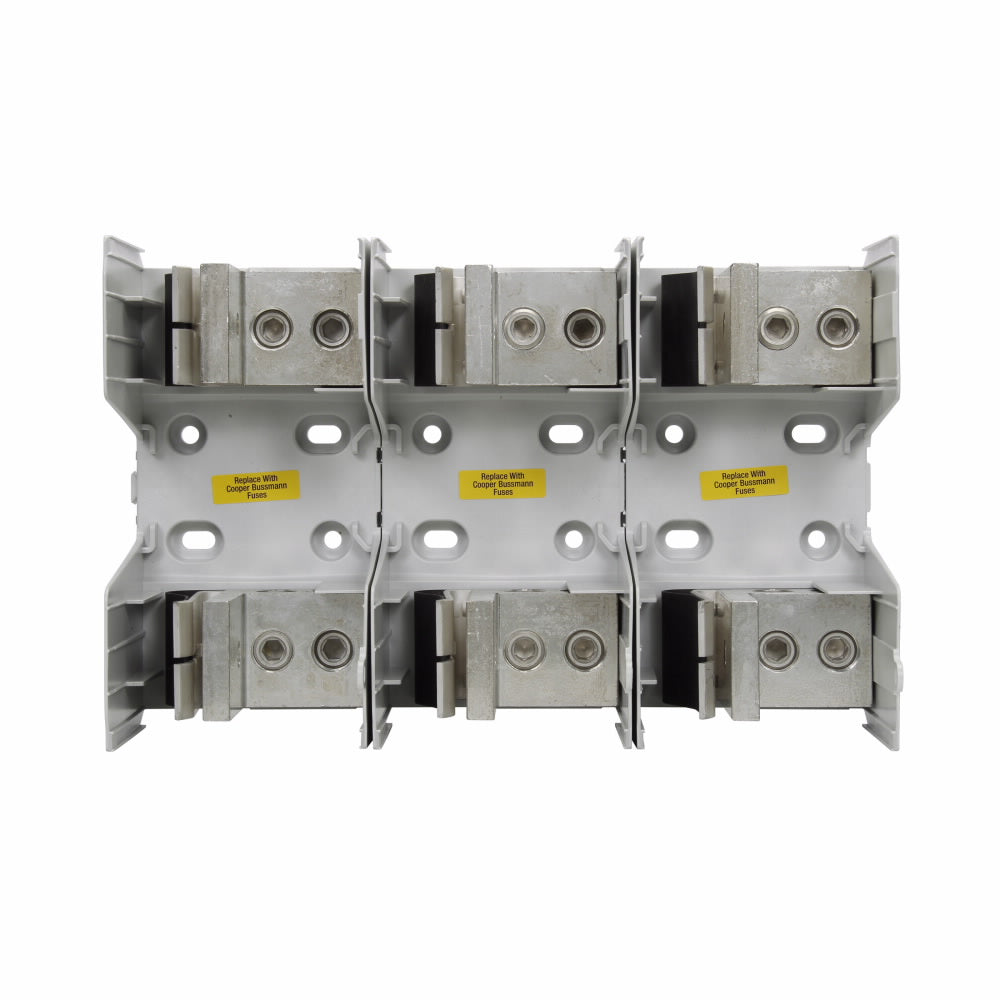

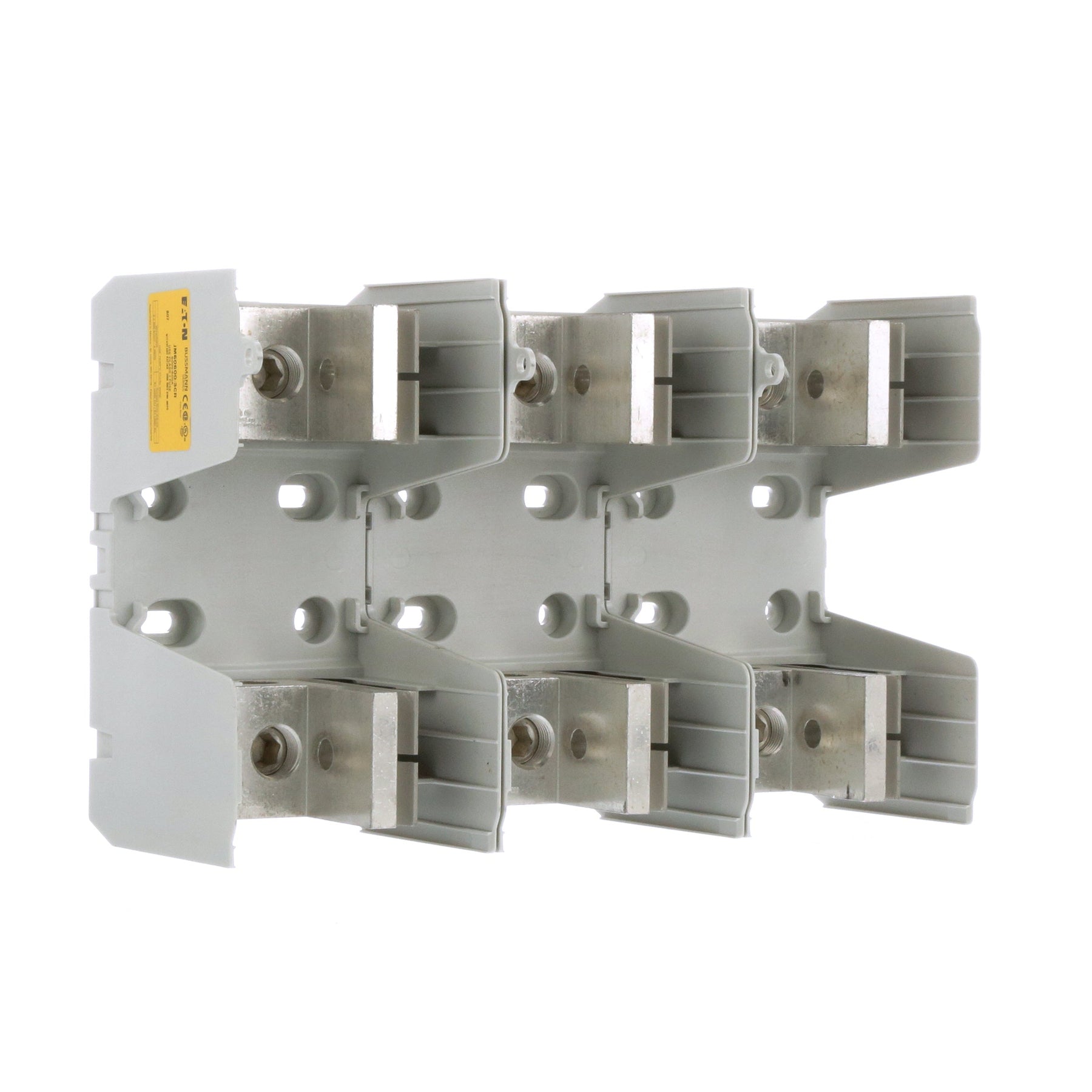

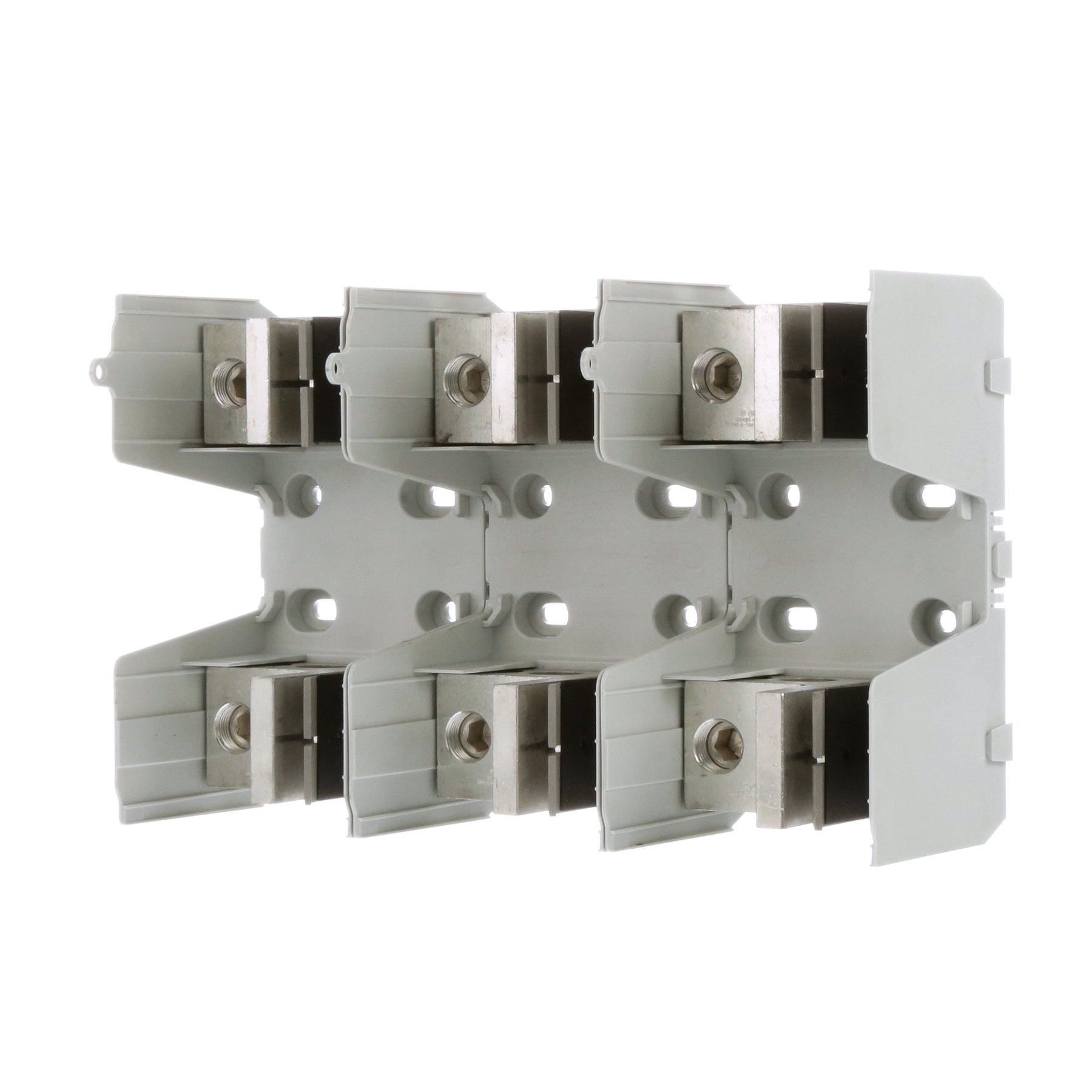

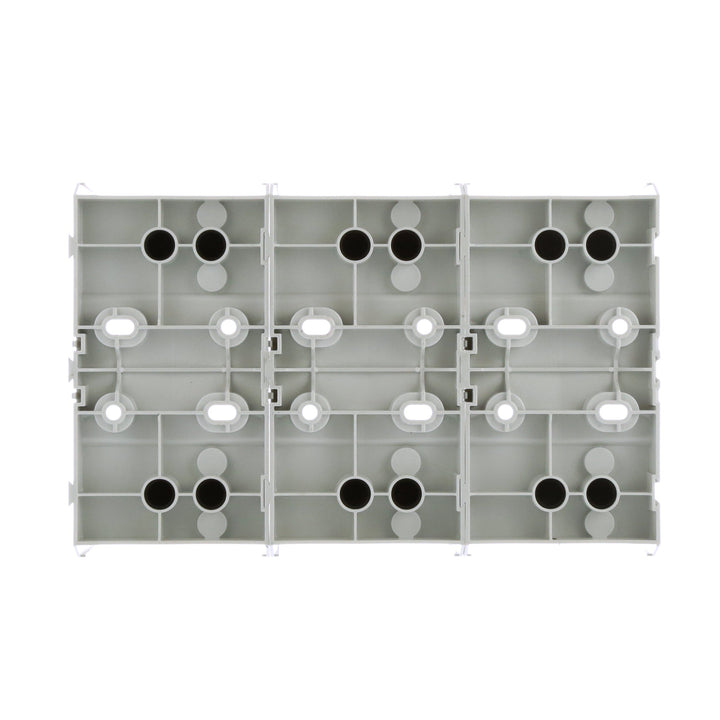

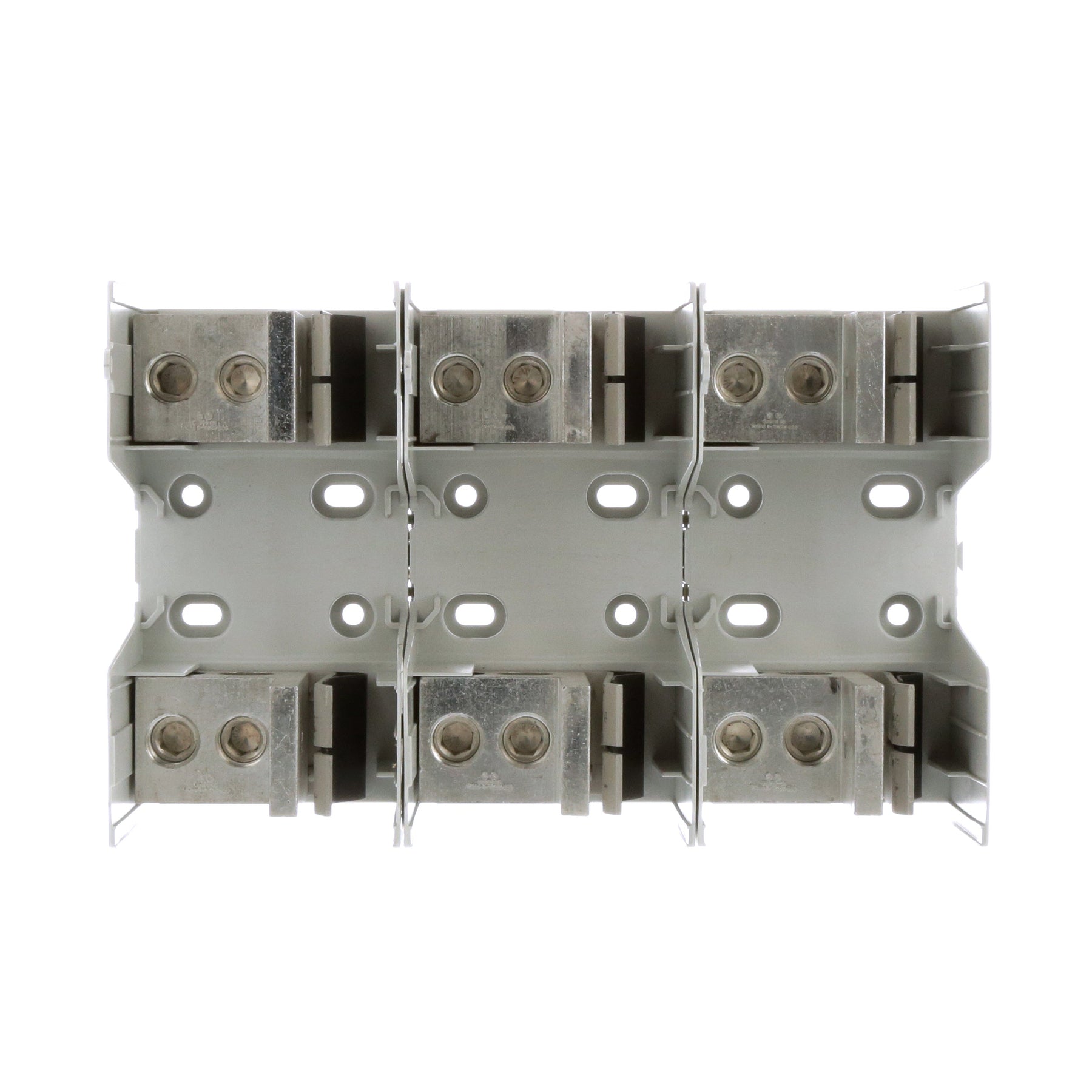

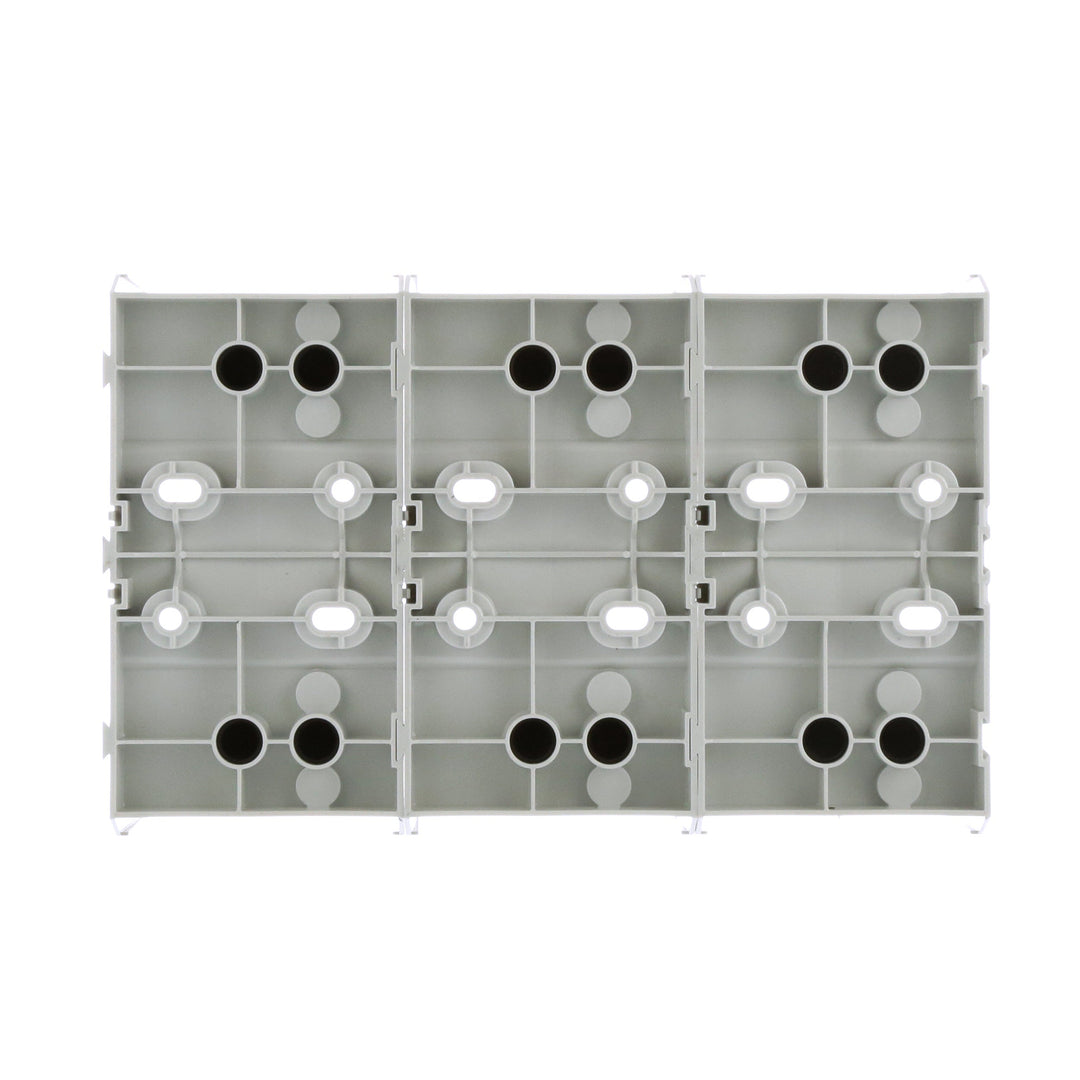

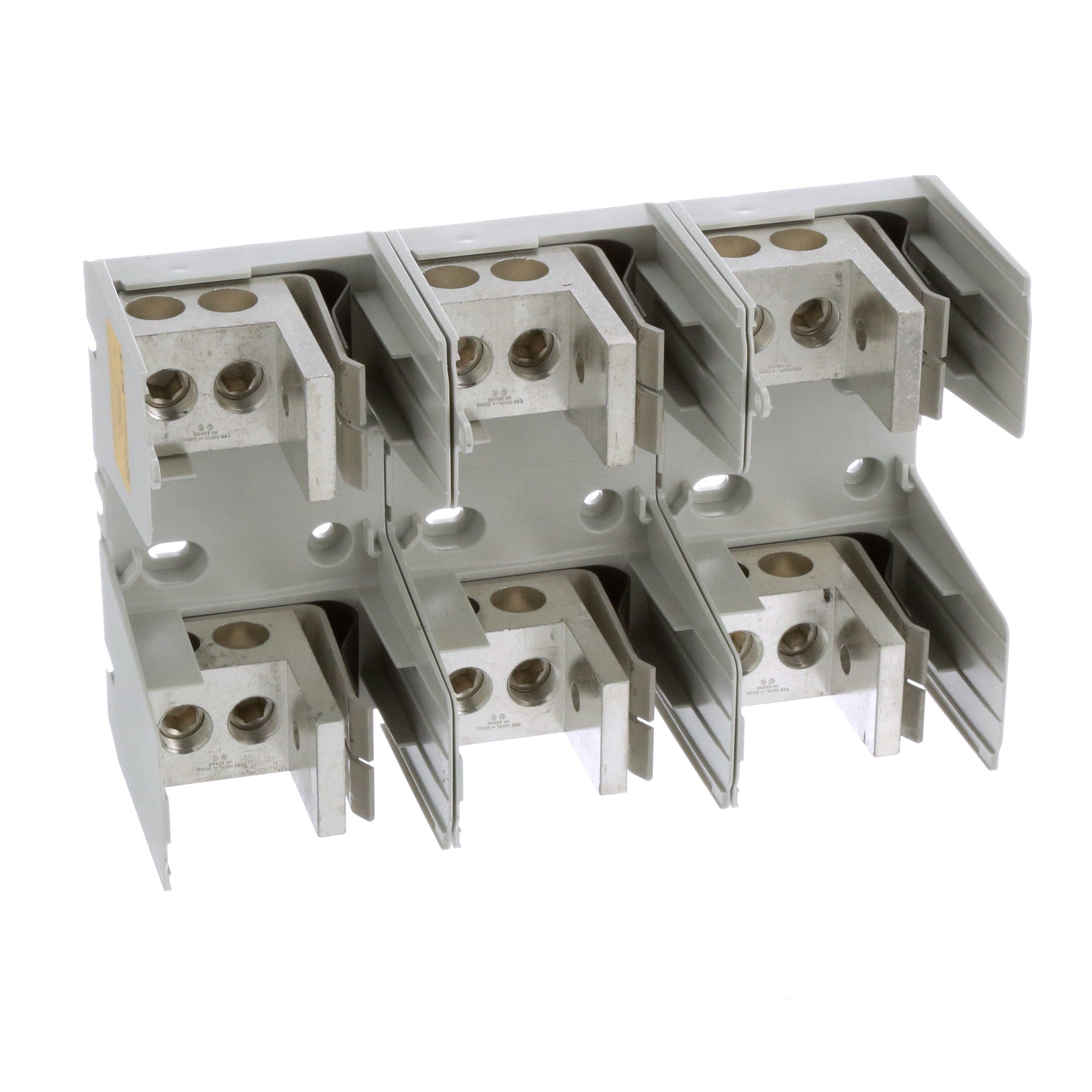

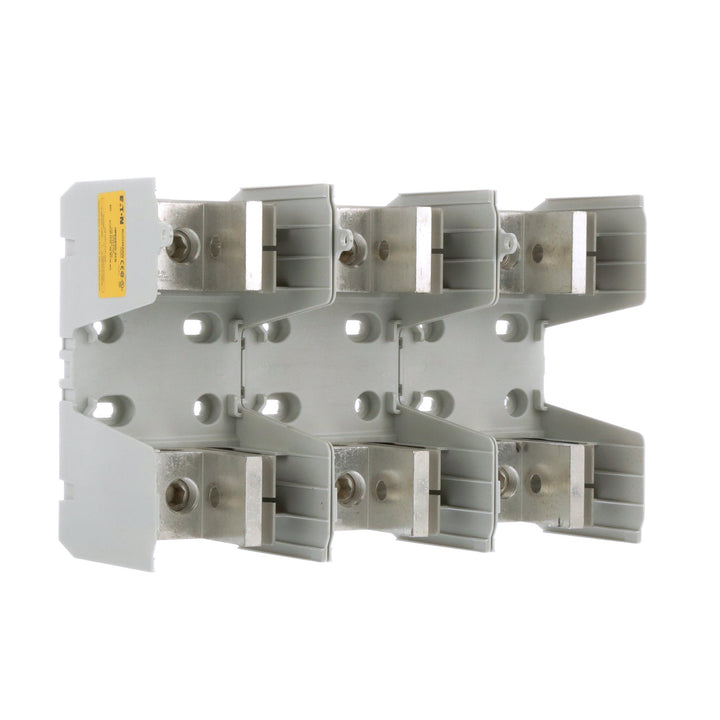

Bussmann JM60600-3CR - Fuse Block 600A (UL/CSA Listed)

Bussmann JM60600-3CR is a heavy-duty fuse block designed for organizing and protecting high-amperage electrical circuits in industrial power distribution systems. It features a 600A current rating and accommodates wire sizes from 4 AWG to 500 MCM for versatile installations. The unit is constructed with a robust design, measuring 14.30 in x 9.30 in x 6 in (363 mm x 236 mm x 152 mm) and weighing 17 lb (7.7 kg), and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). This fuse block is CSA Certified and UL Listed, ensuring compliance with North American safety standards for industrial electrical components. It is commonly implemented in industrial control panels, motor control centers, and main power distribution assemblies where secure and organized circuit protection is required.

Key Features & Specifications

• Type: Fuse Block
• Voltage Rating: Not Specified
• Current Rating: 600A
• Dimensions: 14.30 in x 9.30 in x 6 in (363 mm x 236 mm x 152 mm)
• Standards: CSA Certified, UL Listed
• Applications: Industrial power distribution, motor control centers, control panels
• Wire Size: 4 AWG to 500 MCM
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Weight: 17 lb (7.7 kg)
• Country of Origin: Mexico

Product Identification

• UPC: 051712391115
• GTIN: 00051712391115
