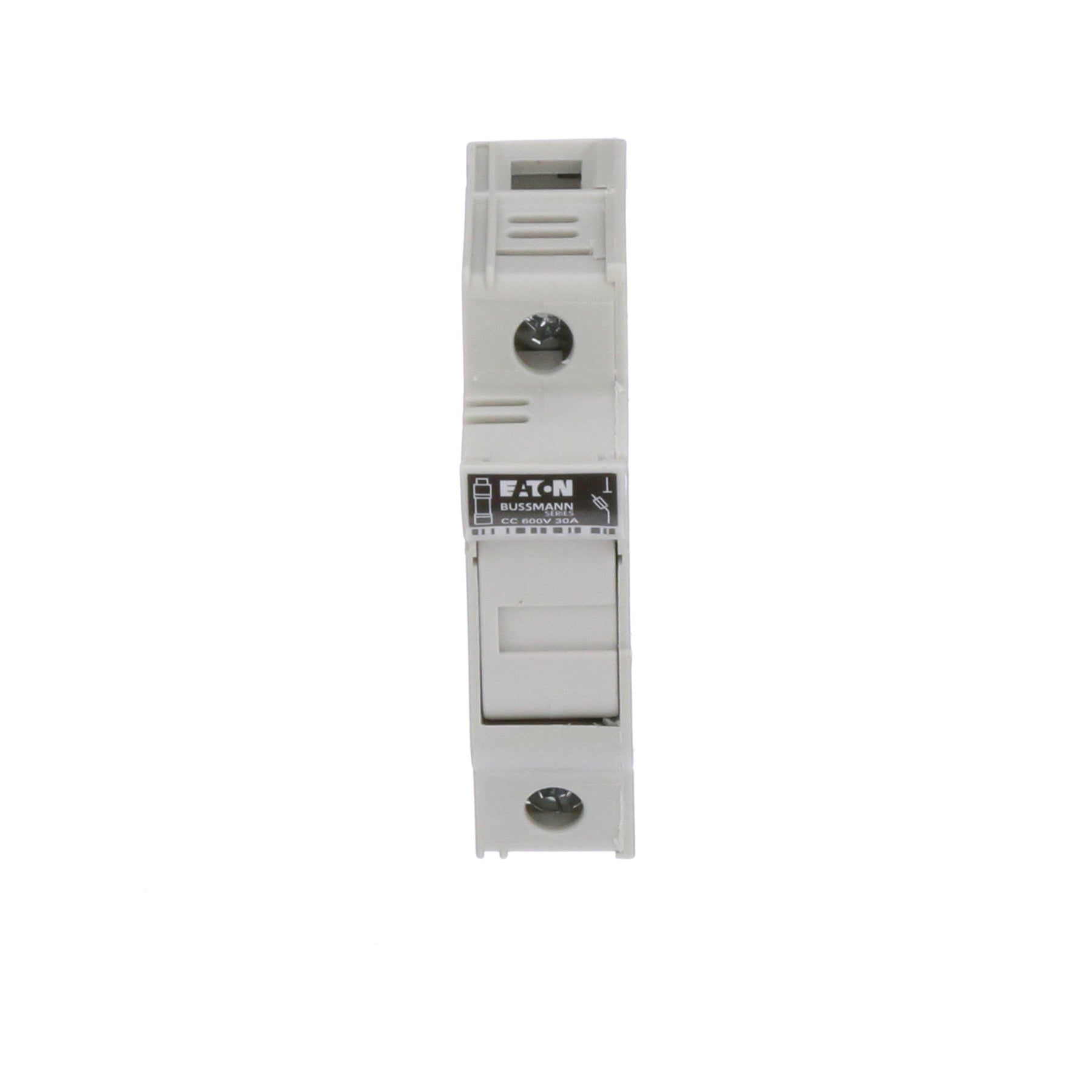

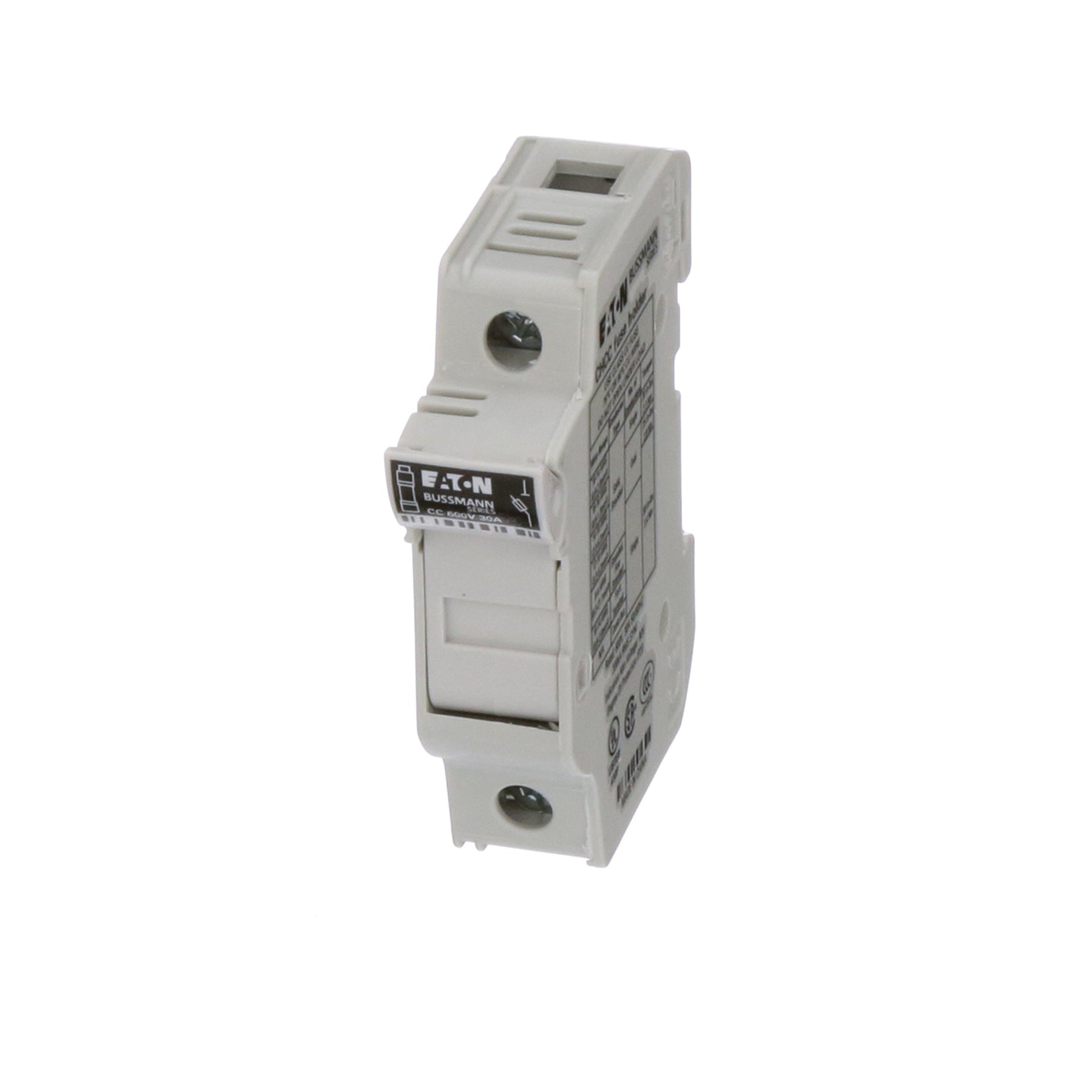

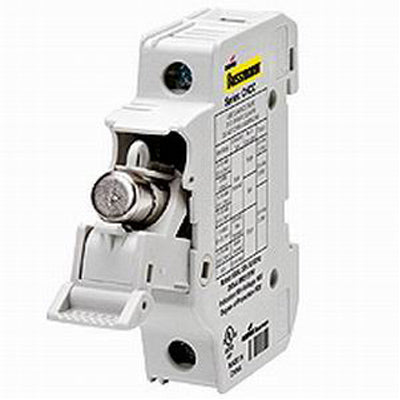

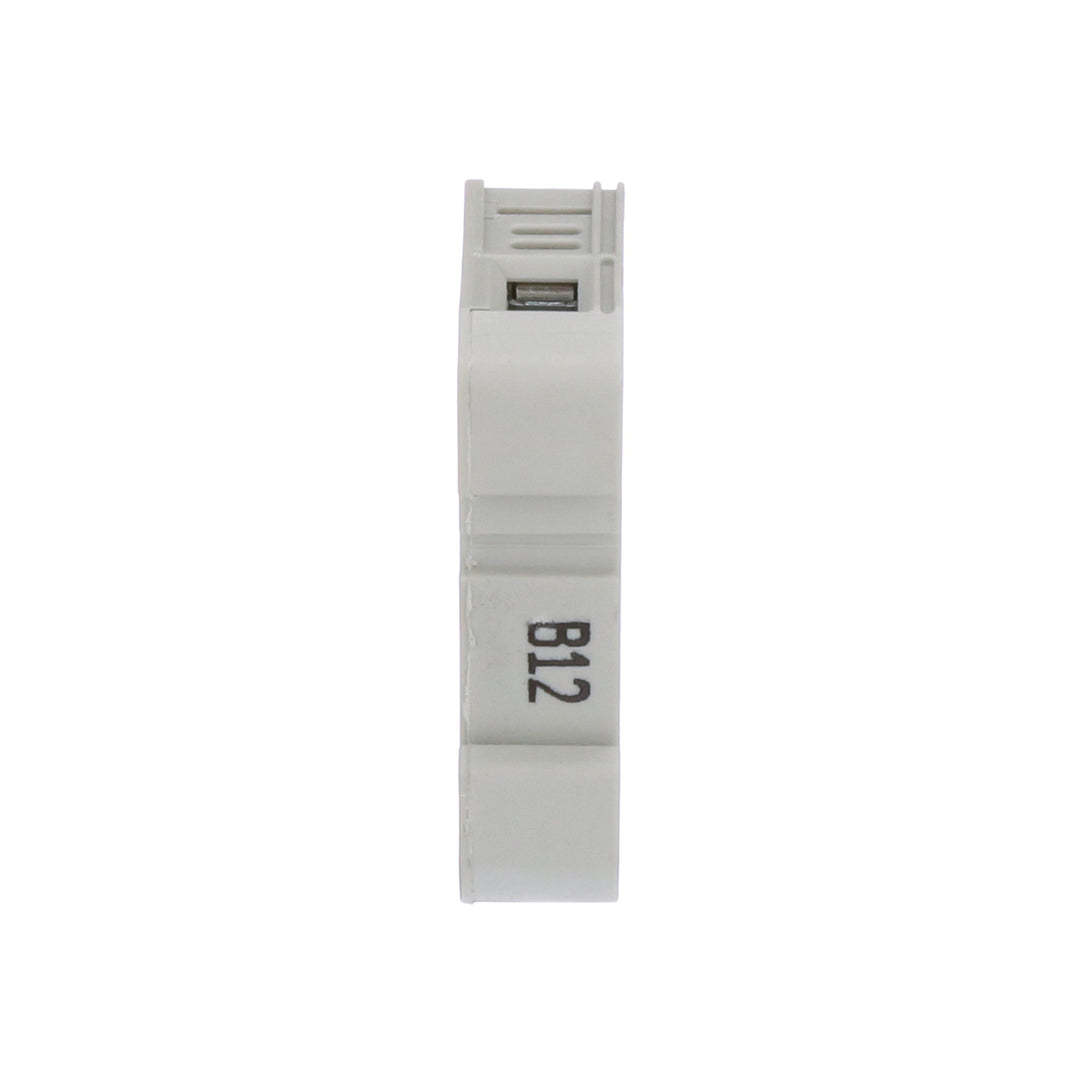

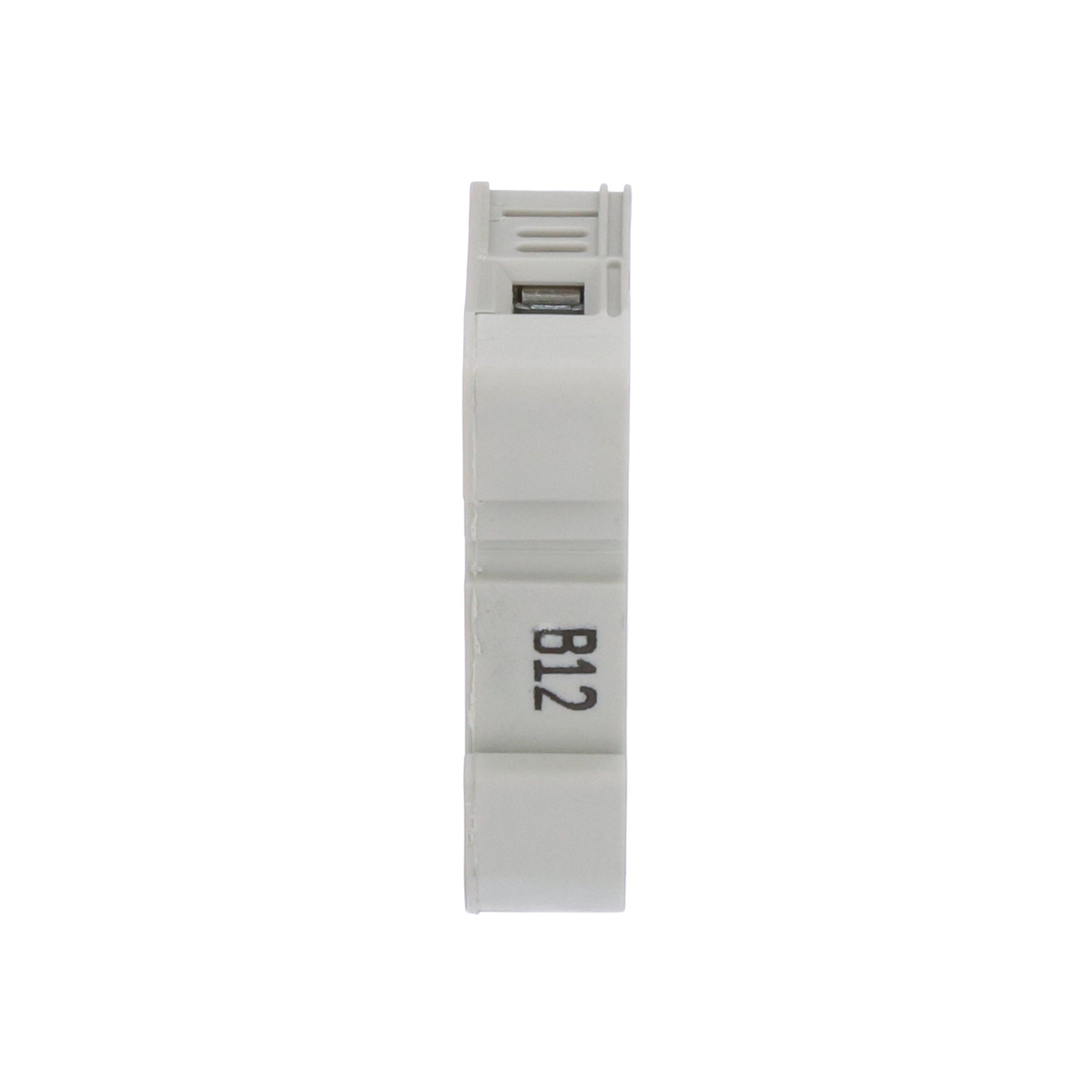

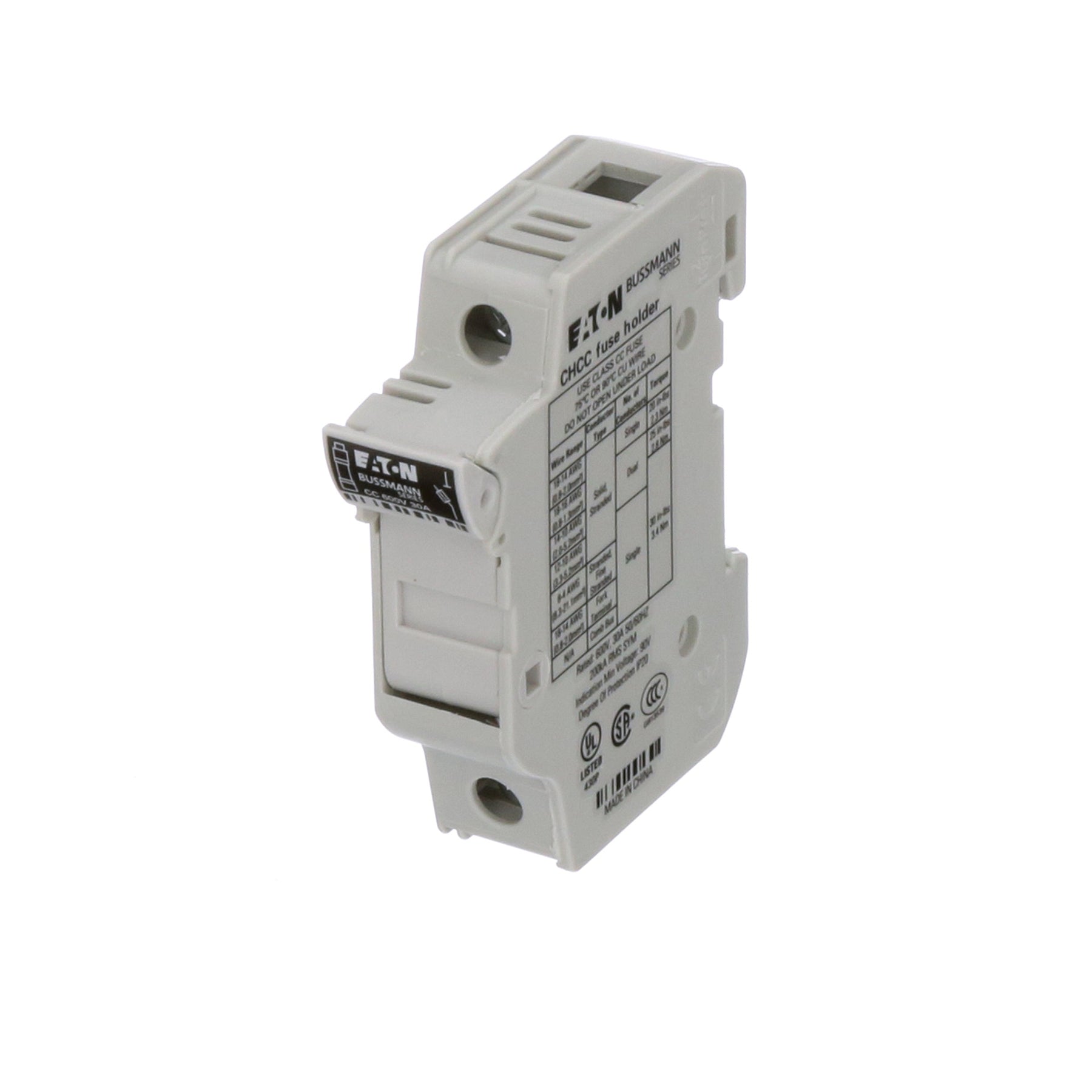

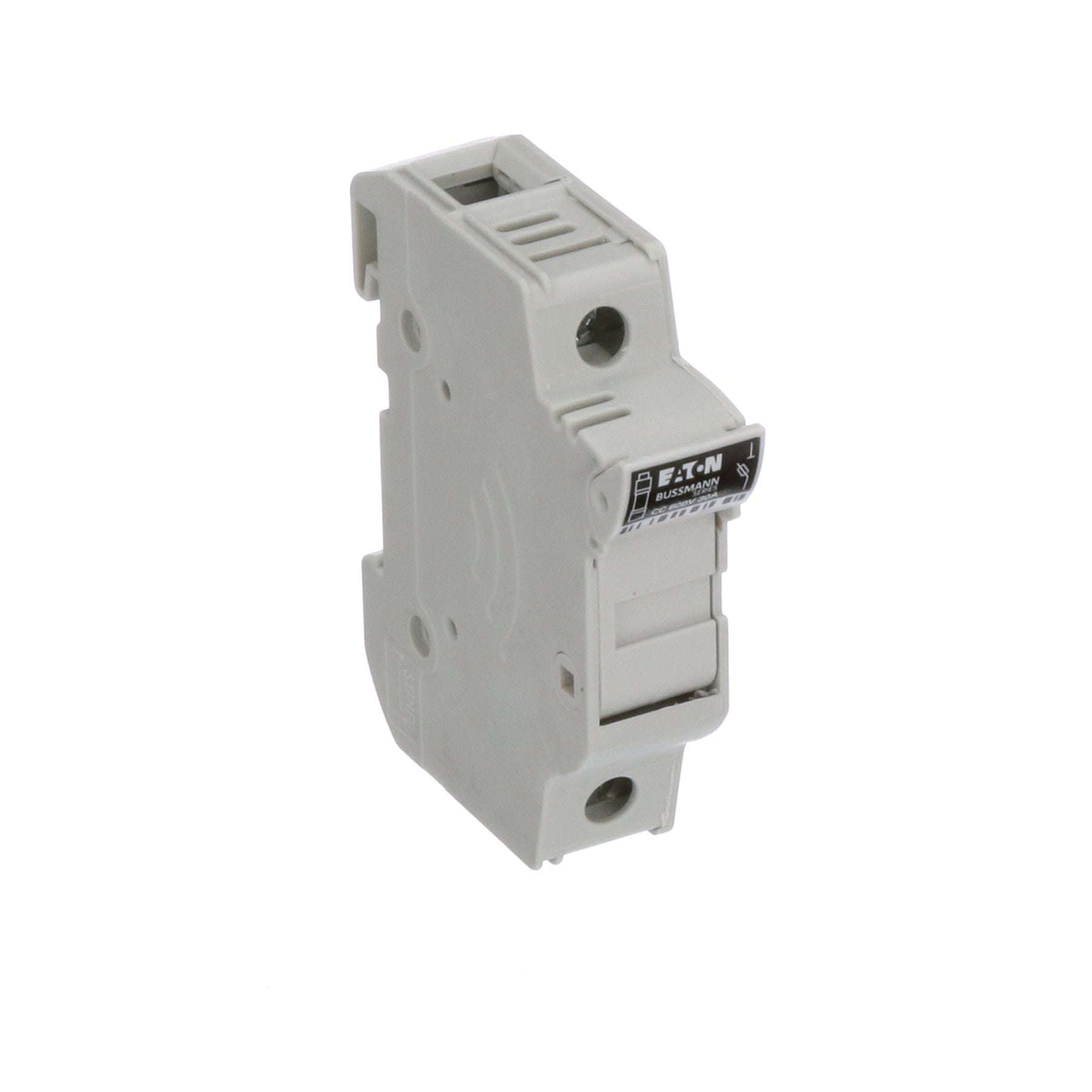

Bussmannn CHCC1DU - CHCC Fuse Block 30A/600V (UL Listed)

Bussmannn CHCC1DU is a CHCC-type fuse block designed for industrial circuit protection with a 30A current rating and 600V voltage capacity. Its compact 0.69 x 2.91 x 2.43-inch (17.5 x 74 x 61.7mm) zinc-plated steel construction provides durable housing for fuse holders in demanding environments. The unit meets CE, CSA, and UL safety standards for electrical components. Typical applications include motor control centers, panelboards, and industrial power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: CHCC fuse block with zinc-plated steel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 0.69 x 2.91 x 2.43 in (17.5 x 74 x 61.7mm)
• Weight: 1 lb (0.45kg)
• Standards: CE, CSA Certified, UL Listed
• Applications: Industrial power distribution, motor control centers
• Family: CH Series
• Country of Origin: China
• Section: Fuse Holder

Product Identification

• UPC: 051712362658
• GTIN: 00051712362658
