Mersen 30311 - Class CC Fuse Block 600V/30A (UL Listed, CSA Certified)
Regular price
$7.96
$7.96
Regular price
$19.52
$19.52
Sale price
$7.96
$7.96
Save $11.56
/
- In stock, ready to ship
- Backordered, shipping soon

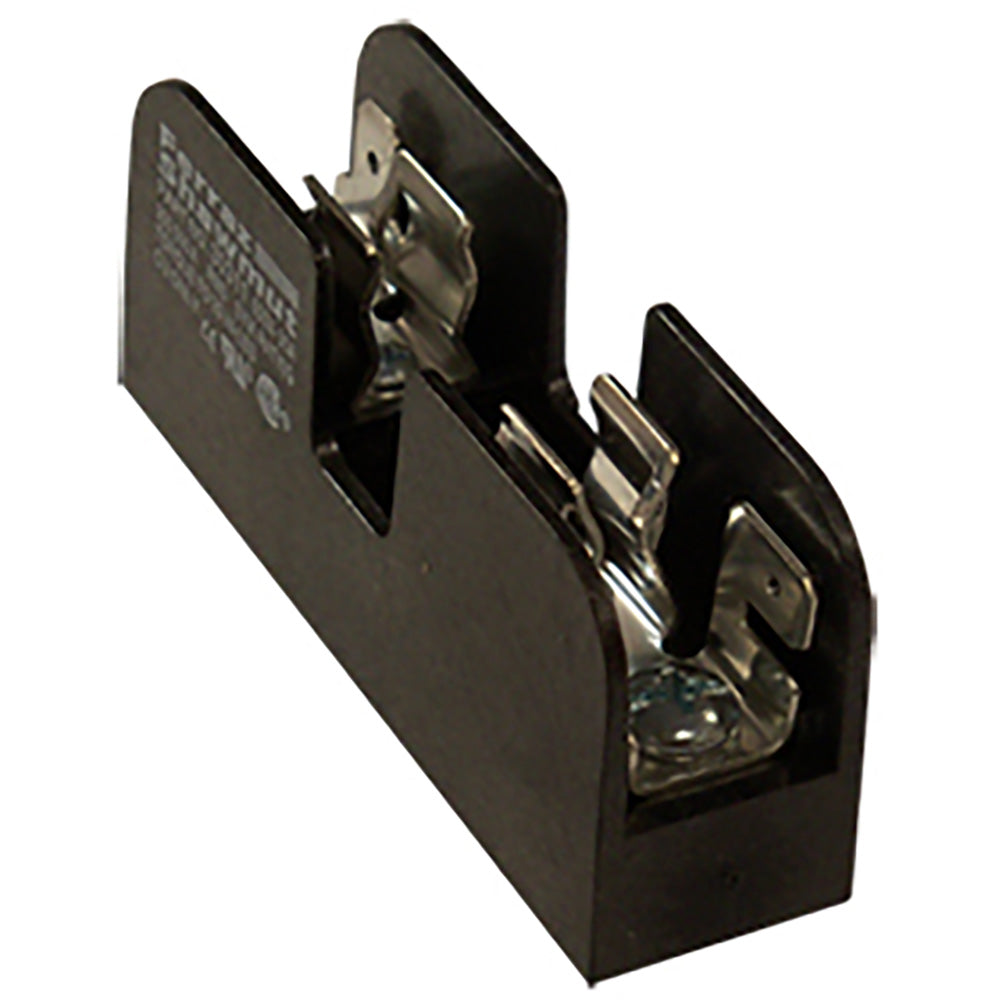

Mersen 30311 is a Class CC fuse block designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 30A current capacity, housed in a compact 0.85" x 3.04" x 1.31" (21.6mm x 77.2mm x 33.3mm) thermoplastic enclosure weighing 0.09 lb. The CSA Certified and UL Listed unit accepts 14-10 AWG copper wiring, meeting stringent safety standards for commercial power distribution applications including motor control centers and panelboards.
Key Features & Specifications
Key Features & Specifications
- Type: Class CC fuse block with screw terminal connections
- Voltage Rating: 600V AC/DC
- Current Rating: 30A
- Dimensions: 0.85" x 3.04" x 1.31" (21.6mm x 77.2mm x 33.3mm)
- Weight: 0.09 lb
- Standards: CSA Certified, UL Listed
- Applications: Industrial power distribution, motor control centers
- Wire Size: 14-10 AWG (Copper)
- Fuse Class: CC
- Enclosure: Thermoplastic
- UPC: 782001757878
- GTIN: 00782001757878
