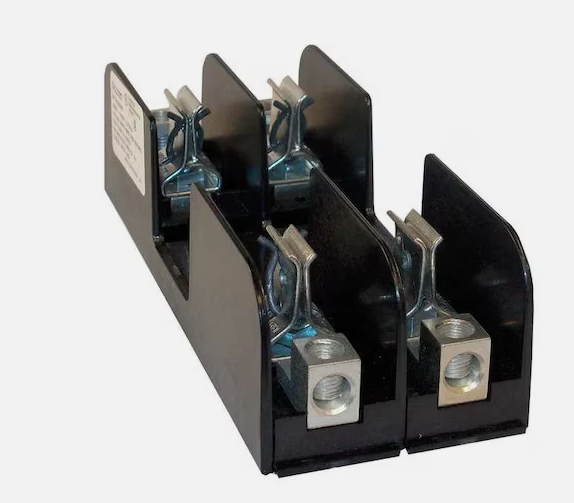

Mersen 21036 - 210 Series Fuse Block 100A/250V (CSA/UL Certified)

Mersen 21036 is a 210-series fuse block designed for industrial circuit protection with a 100A current rating. The unit operates at 250V and accommodates wire sizes from 14 to 2 AWG for both aluminum and copper conductors. Its compact 1.68" x 8.33" x 2.28" (42.7mm x 211.6mm x 57.9mm) box-mount design weighs 0.8 lb, featuring CSA and UL certifications for safety compliance. This fuse block is engineered for electrical distribution panels, motor control centers, and industrial power management systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: 210-series fuse block with aluminum/copper terminals
• Voltage Rating: 250V AC
• Current Rating: 100A
• Dimensions: 1.68" x 8.33" x 2.28" (42.7mm x 211.6mm x 57.9mm)
• Weight: 0.8 lb (0.36 kg)
• Mounting: Box mount
• Wire Size: 14 to 2 AWG
• Standards: CSA Certified, UL Listed
• Applications: Industrial power distribution, motor control centers, panelboards

Product Identification

• UPC: 782001664411
