Boltswitch VL368NST - Fusible Bolted Pressure Switch 600V 1200A (200kA AIC @480V)
Regular price
$0.00
$0.00
Regular price
$2,230.00
$2,230.00
Sale price
$0.00
$0.00
Save $2,230
/
- In stock, ready to ship
- Backordered, shipping soon

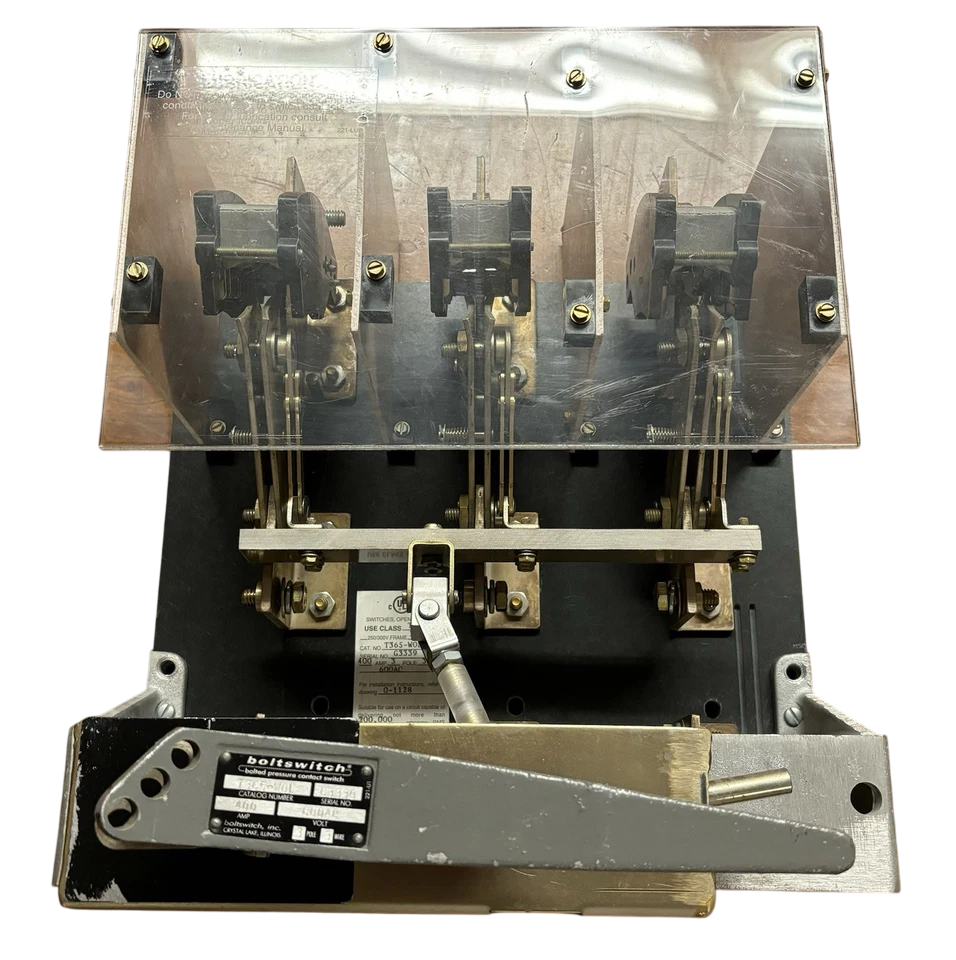

Boltswitch VL368NST is a bolted pressure switch designed for high-current industrial power distribution systems, featuring a fusible switch style with 200kA interrupting capacity at 480V. The unit operates at 600V AC with a 1200A current rating, constructed with a rugged NEMA 1 enclosure weighing 250 lb for durable operation in demanding environments. It complies with industry standards for bolted pressure switches, featuring a 3-pole single configuration compatible with SGHA frames. Typical applications include main disconnect duty, motor control centers, and heavy industrial power switching.
Key Features & Specifications
Key Features & Specifications
- Type: VL Series bolted pressure switch, fusible design
- Voltage Rating: 600V AC
- Current Rating: 1200A
- Dimensions: NEMA 1 enclosure
- Standards: Industrial-grade compliance
- Applications: Main disconnects, MCCs, industrial power switching
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC Rating: 200kA@480V
- Compatible Frames: SGHA
- Fuse Class: L
- Weight: 250 lb
Quote Request
