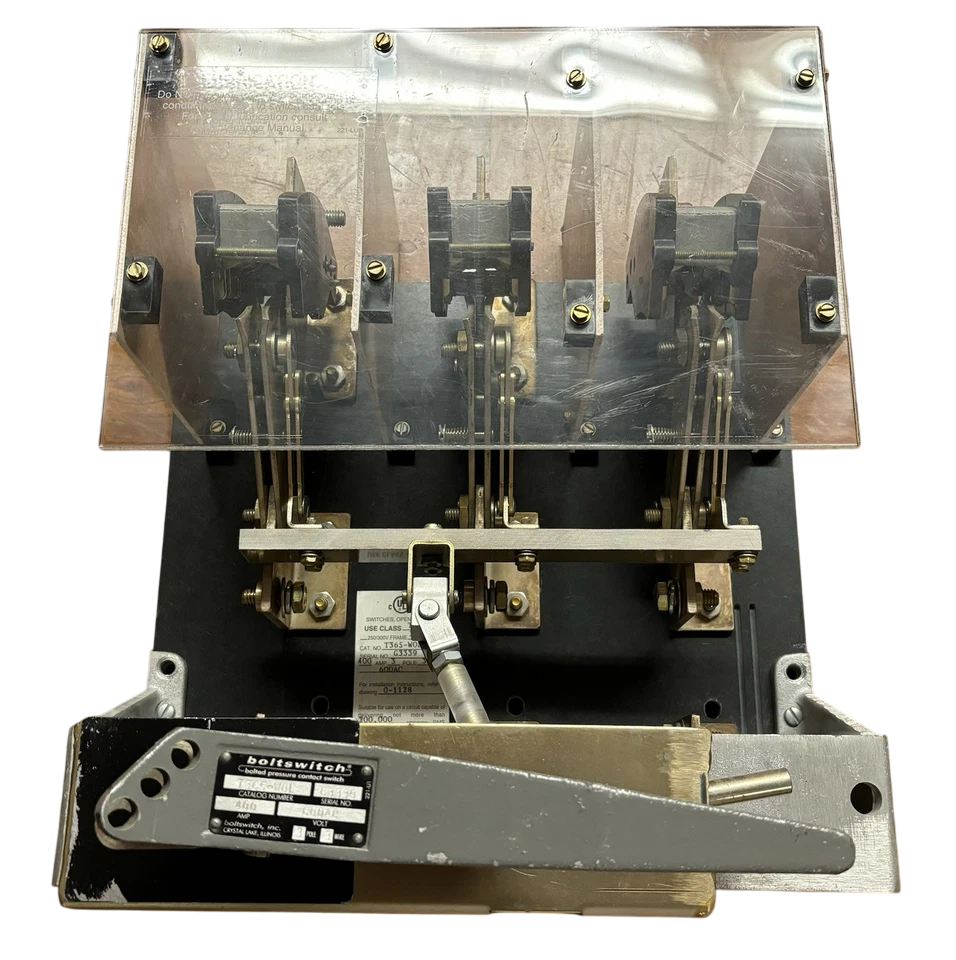

Boltswitch VL367G9 - Fusible Disconnect Switch 800A@380V (200kA AIC)

Boltswitch VL367G9 is a fusible bolted pressure switch designed for high-current industrial power distribution systems, featuring a 380V voltage rating and 800A current handling capacity. The VL Series switch is constructed with a rugged NEMA 1 enclosure, weighing 250 lb, and utilizes Class L fuses for robust circuit protection. It complies with industry standards for 3-phase applications, offering a 200kA@380V AIC rating for fault current interruption. Typical applications include heavy machinery, industrial control panels, and power distribution centers requiring reliable fusible disconnects.

Key Features & Specifications

• Type: Fusible bolted pressure switch, VL Series, single configuration
• Voltage Rating: 380V AC
• Current Rating: 800A
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA@380V
• Fuse Class: L
• NEMA Rating: 1
• Compatible Frames: THED
• Weight: 250 lb
• Switch Style: Fusible disconnect
