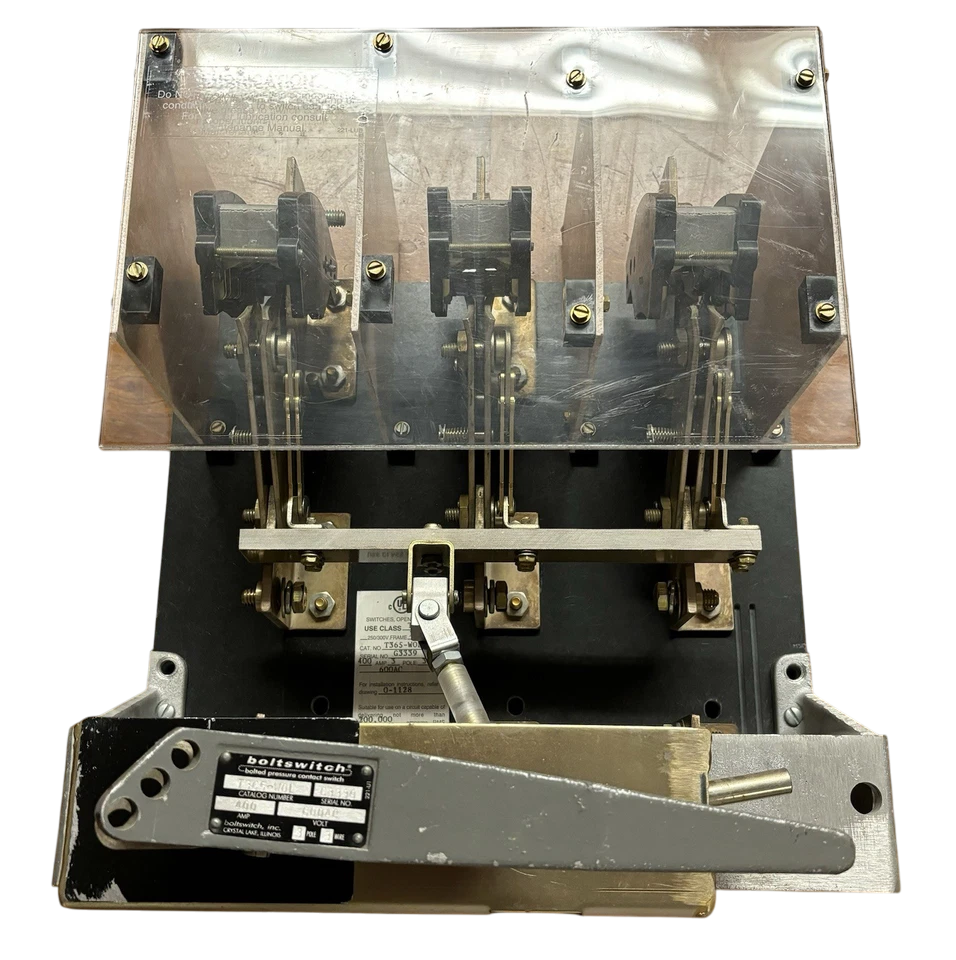

Boltswitch VL3611G2MST - Fusible Bolted Pressure Switch 2500A @ 240V (200kA AIC)

Boltswitch VL3611G2MST is a fusible bolted pressure switch designed for high-current industrial power distribution systems. This VL Series switch features a 240V voltage rating and 2500A current capacity, with a 200kA interrupting rating at 240V for robust short-circuit protection. The unit is constructed with a NEMA 1-rated enclosure, weighs 250 lb, and utilizes Class L fuses in a 3-pole single-configuration design. It complies with industry standards for heavy-duty electrical switching applications. Typical uses include main disconnect service, motor control centers, and industrial power distribution panels.

Key Features & Specifications

• Type: Fusible bolted pressure switch (VL Series)
• Voltage Rating: 240V AC
• Current Rating: 2500A
• AIC Rating: 200kA@240V
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: L
• NEMA Rating: 1
• Weight: 250 lb
• Standards: Industrial power distribution compliance
• Applications: Main disconnects, motor control centers, power distribution

Product Identification

• GTIN: 00785901508014
