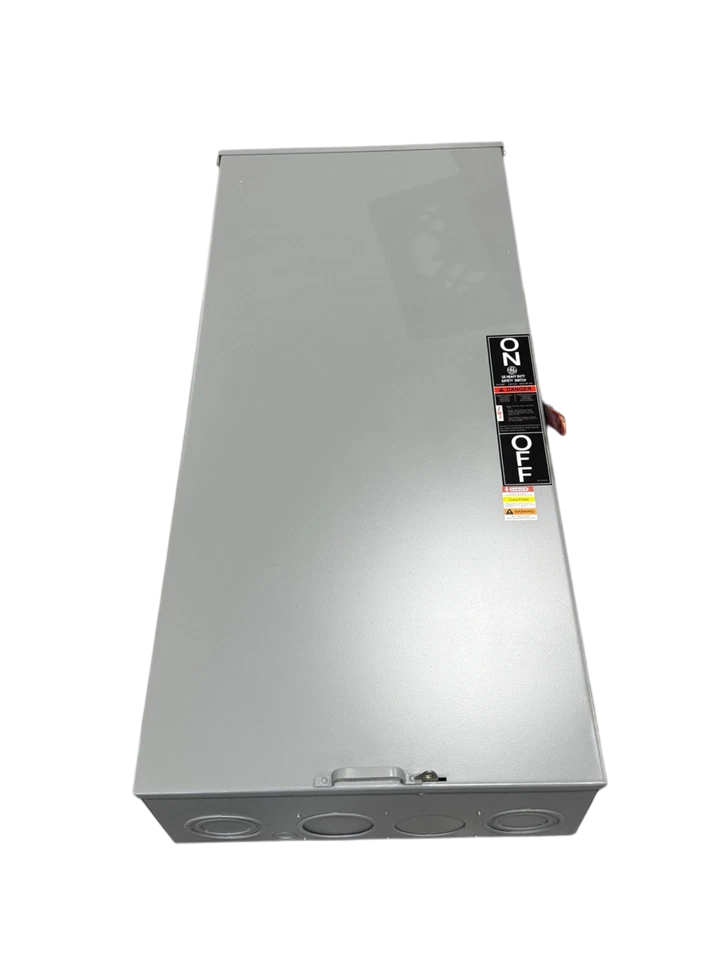

General Electric TG3225R - Fusible Safety Switch 400A 240V (NEMA 3R, 100kA AIC)
Regular price
$2,436.19
$2,436.19
Regular price
$2,310.00
$2,310.00
Sale price
$2,436.19
$2,436.19
Save $-126.19
/
- In stock, ready to ship
- Backordered, shipping soon
General Electric TG3225R is a fusible safety switch designed for reliable circuit isolation and protection in industrial applications. This 240V AC single-phase disconnect switch features a 400A current rating and 100kA AIC interrupting capacity for robust electrical protection. The heavy-duty construction weighs 70 lb with NEMA 3R rated enclosure suitable for outdoor installation. It complies with industry standards as part of the Spec-Setter family and is compatible with ED frames. Typical applications include industrial power distribution, motor control centers, and main service disconnects where Class R fuse protection is required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, Spec-Setter family, TG type
- Voltage Rating: 240V AC
- Current Rating: 400A
- Configuration: Single phase
- Poles: 2
- AIC Rating: 100kA@240V
- Fuse Class: R
- NEMA Rating: NEMA 3R
- Compatible Frames: ED
- Switch Style: Fusible
- Weight: 70 lb
- Standards: Industrial safety disconnect standards
- Applications: Industrial power distribution, motor control centers, main service disconnects
Product Identification
- UPC: 078316406212
- GTIN: 00783164062120
