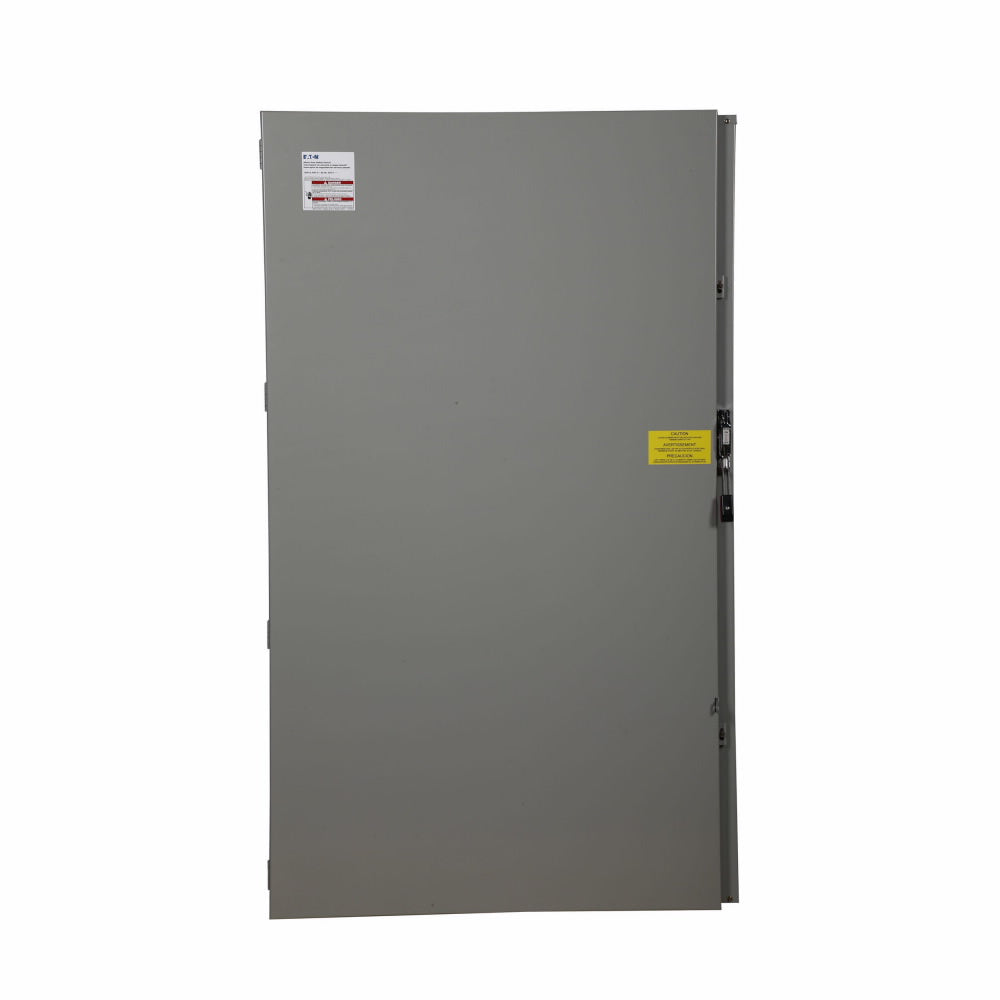

Cutler Hammer DH368UGK - Non-Fusible Disconnect Switch 1200A 600V (200kA AIC Rating)

Cutler Hammer DH368UGK is a heavy-duty industrial disconnect switch designed for main power isolation and circuit protection in high-capacity electrical systems. This non-fusible safety switch operates at 600V AC with a 1200A current rating, providing reliable power interruption for three-phase applications. The robust NEMA 1 enclosure measures 43.12 x 17.12 x 70.97 inches (WxDxH) and weighs 430 lb, constructed for industrial durability. It complies with UL standards and meets NEC 230.62 (C) requirements for barrier compliance, featuring an impressive 200kA interrupting capacity at 600V. Typical applications include main service disconnects, industrial machinery power control, and electrical distribution systems requiring high-fault current protection.

Key Features & Specifications

• Type: DH Series non-fusible safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Dimensions: 43.12 in x 17.12 in x 70.97 in (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Main service disconnects, industrial power distribution
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 1
• Phase: 3
• Weight: 430 lb
• Family: DH Series
• Country of Origin: United States

Product Identification

• UPC: 782114312964
• GTIN: 00782114312964
