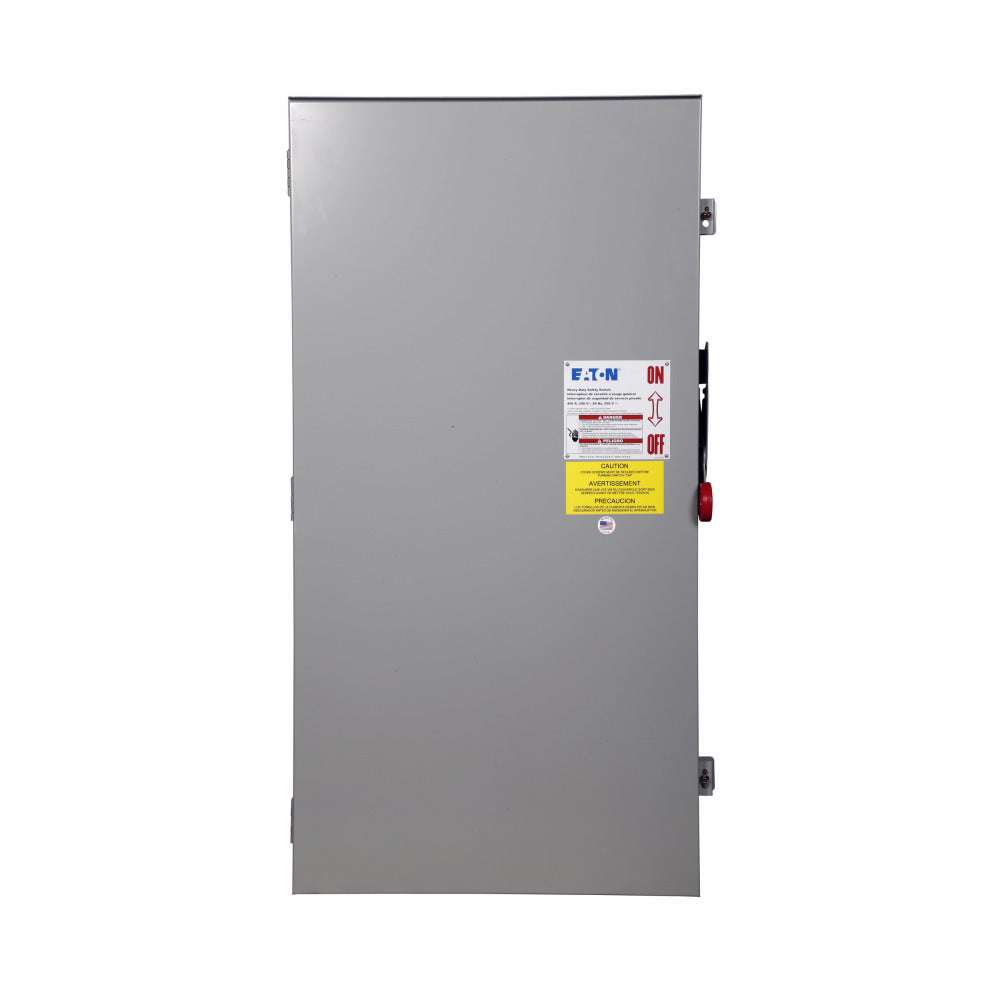

Cutler Hammer DH325FRK - Fusible Disconnect Switch 400A 3-Pole (100kA AIC @ 240V)

Cutler Hammer DH325FRK is a fusible safety disconnect switch designed for industrial power distribution system isolation and protection. This 3-pole switch features a 400A current rating and 240V voltage rating with a 100kA interrupting capacity at 240V for reliable circuit protection. The rugged NEMA 3R rated enclosure measures 24.38" W x 45.5" D x 10.25" H and weighs 150 lb, constructed for durable industrial service. UL Listed certification ensures compliance with industry safety standards, while compatibility with THLC frames facilitates integration into existing systems. Typical applications include industrial control panels, motor control centers, and main distribution equipment requiring Class R fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 240V AC
• Current Rating: 400A
• Dimensions: 24.38 in x 45.5 in x 10.25 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, main distribution equipment
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@240V
• Fuse Class: R
• Nema Rating: 3R
• Phase: 3
• Compatible Frames: THLC
• Weight: 150 lb
• Country of Origin: United States

Product Identification

• UPC: 782113207056
• GTIN: 00783164253740
