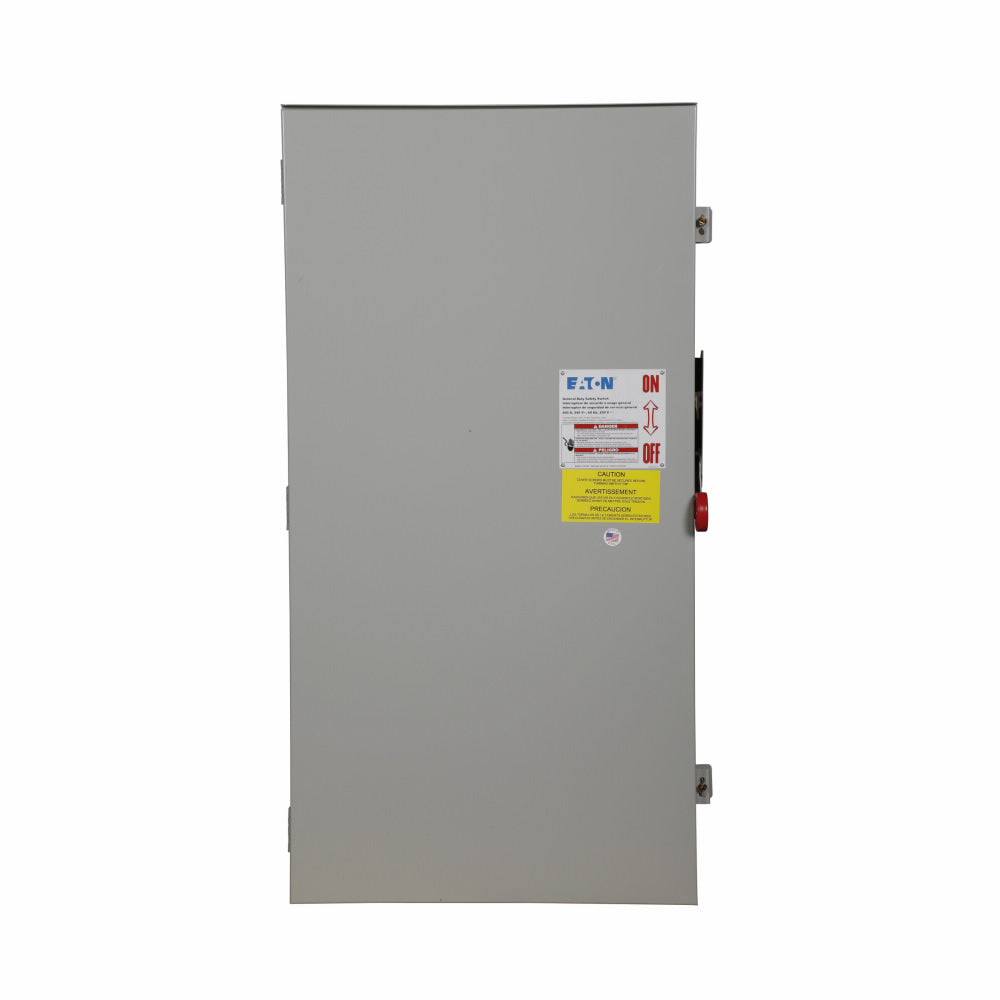

Cutler Hammer DG325NRK - Fusible Disconnect Switch 400A 3-Pole (240V 100kA AIC)

Cutler Hammer DG325NRK is a fusible safety disconnect switch designed for industrial power distribution system isolation and protection. This 3-pole switch operates at 240V AC with a 400A current rating and features a 100kA interrupting capacity at 240V for reliable fault protection. The unit features rugged NEMA 3R rated construction with dimensions of 16" W x 7.27" D x 44.74" H and weighs 150 lb, built with UL Listed certification and NEC 230.62(C) compliant barriers. This disconnect meets industry standards for safety and reliability in demanding environments. Typical applications include industrial control panels, motor control centers, and main power distribution systems where visible circuit isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 400A
• Dimensions: 16" W x 7.27" D x 44.74" H
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier, NEMA 3R
• Applications: Industrial power distribution, motor control centers, main disconnects
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 100kA@240V
• Fuse Class: R
• Compatible Frames: TEB
• Weight: 150 lb
• Country of Origin: United States

Product Identification

• UPC: 782113639215
• GTIN: 00782113639215
