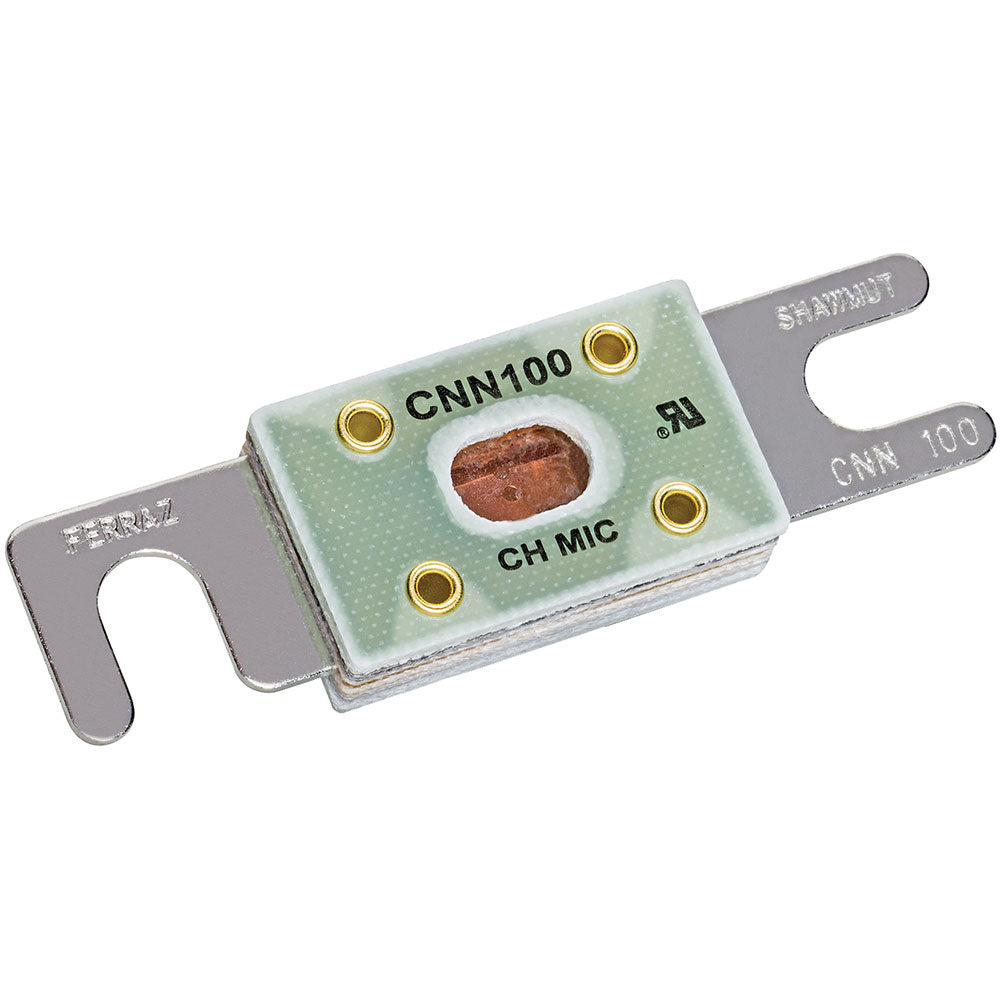

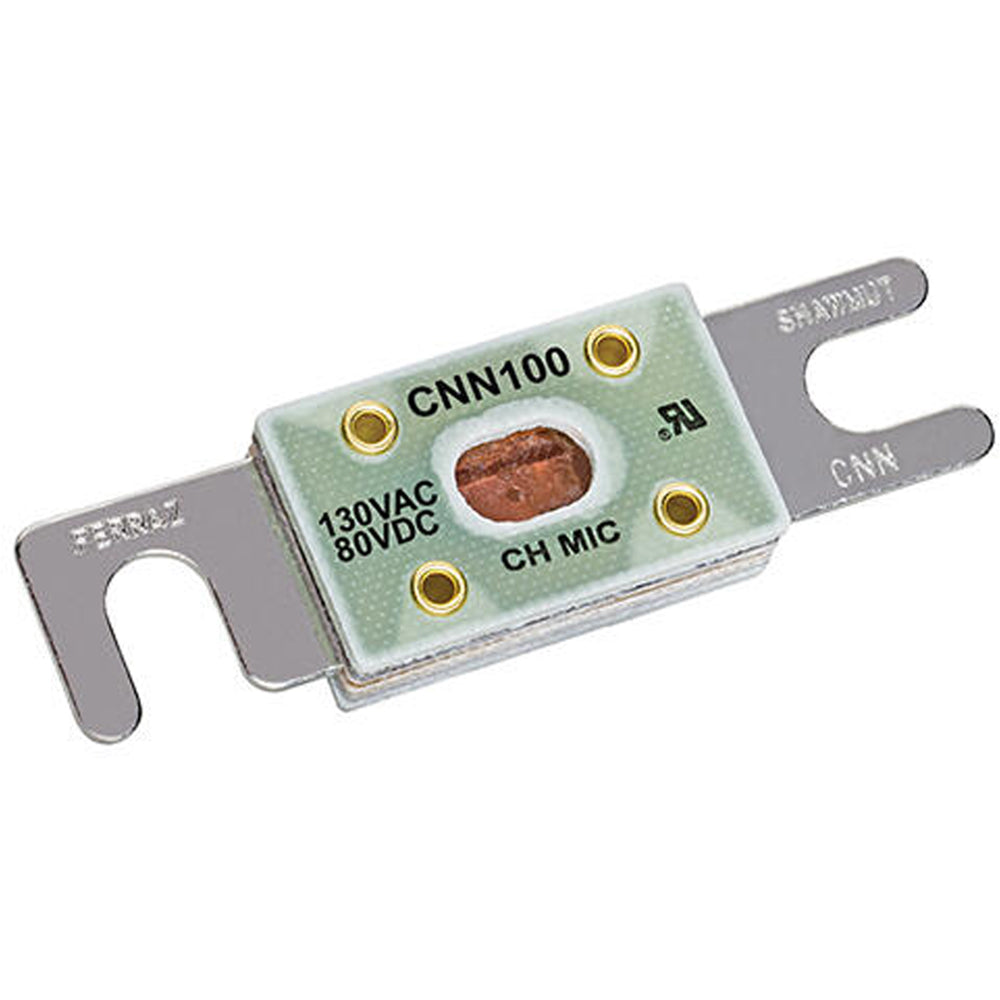

Appleton CNN100 - Cartridge Fuse 100A (2500kA AIC @130V AC)

Appleton CNN100 is a cartridge fuse designed for high-current circuit protection in industrial applications. It features a 100A current rating with dual voltage compatibility (130V AC/80V DC) and a compact 0.94-inch diameter x 0.59-inch length forklift connection design. The UL-recognized component meets standard 248-1 with a 2500kA interrupting capacity at 130V AC, constructed with a single-barrel configuration for reliable performance. Its 0.06 lb lightweight design makes it suitable for demanding environments including motor control centers and power distribution systems requiring robust short-circuit protection.

Key Features & Specifications

• Type: CNN-class cartridge fuse with single-barrel construction
• Voltage Rating: 130V AC / 80V DC
• Current Rating: 100A
• Dimensions: 0.94" diameter x 0.59" length
• Weight: 0.06 lb
• Connection: Forklift terminal
• AIC Rating: 2500kA @ 130V AC
• Certification: UL Recognized Component (Standard 248-1, File E60314 JFHR2)
• Applications: Industrial power distribution, motor protection, short-circuit interruption

Product Identification

• UPC: 782001790448
