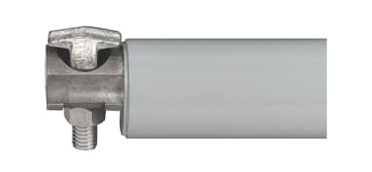

ABB HTDS351100 - Medium Voltage Fuse 100A (23kV, 50kA AIC)

ABB HTDS351100 is a medium voltage current-limiting fuse designed for protecting transformers and other electrical equipment in industrial power distribution systems. This Trans-Guard FX series fuse features a 100A current rating and 23kV voltage rating with a high interrupting capacity of 50kA, ensuring reliable protection against short-circuit faults. The fuse construction utilizes a single-barrel design with special connection terminals and measures 3.25 inches in diameter with a weight of 5.19 lb, providing robust physical characteristics for demanding applications. It complies with industry standards for medium voltage protection devices and is typically deployed in utility substations, industrial plants, and commercial power distribution networks where transformer protection is critical.

Key Features & Specifications

• Type: OS medium voltage current-limiting fuse, single-barrel design
• Voltage Rating: 23,000V AC
• Current Rating: 100A
• Dimensions: 3.25 inches diameter
• Weight: 5.19 lb
• Standards: Industry standards for medium voltage protection
• Applications: Transformer protection, industrial power distribution, utility substations
• AIC rating: 50kA at 23kV
• Connection: Special terminals
• Barrels: 1
• Family: Trans-Guard FX
• Item Subcategory: Medium Voltage
