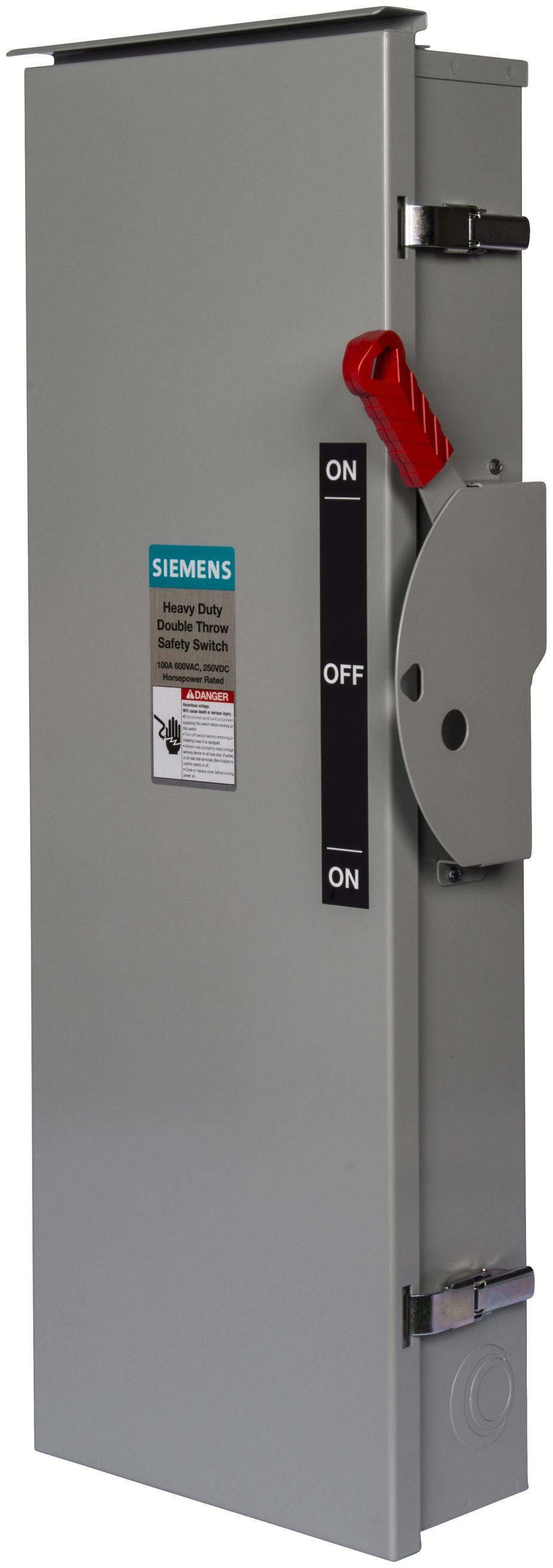

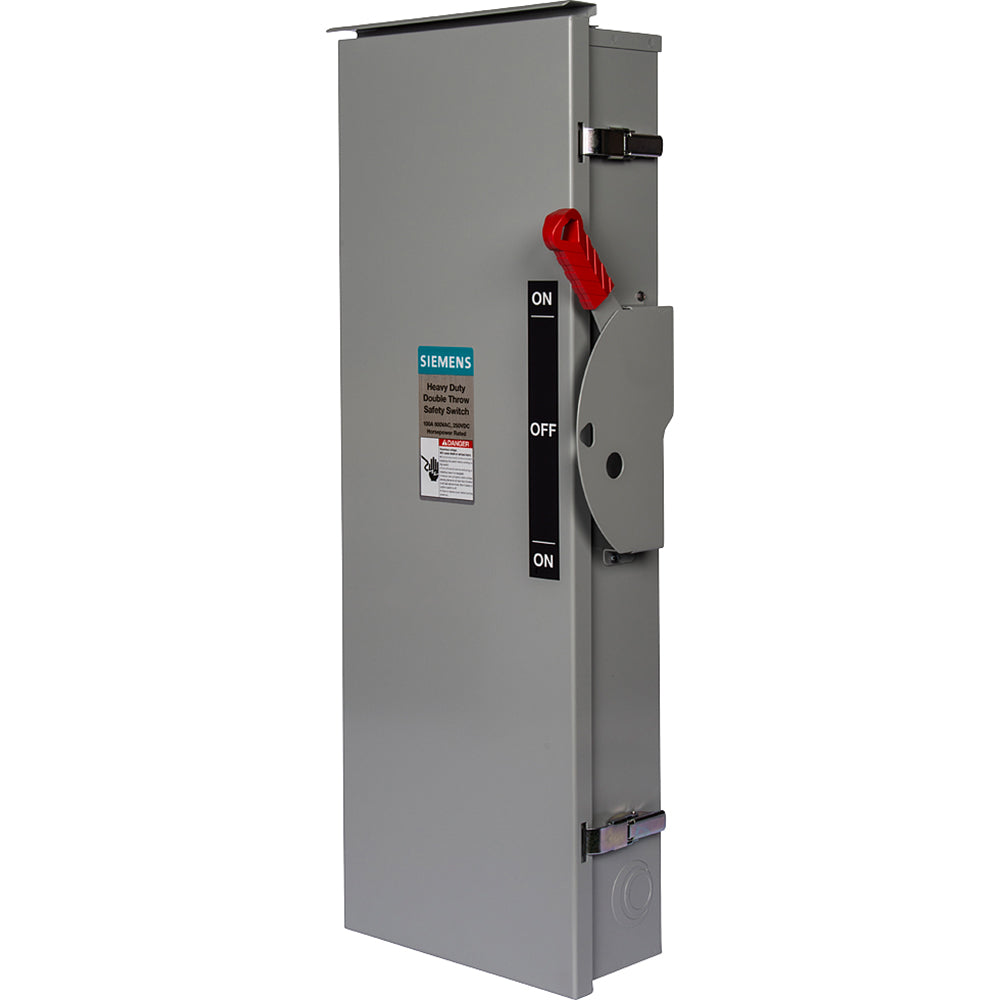

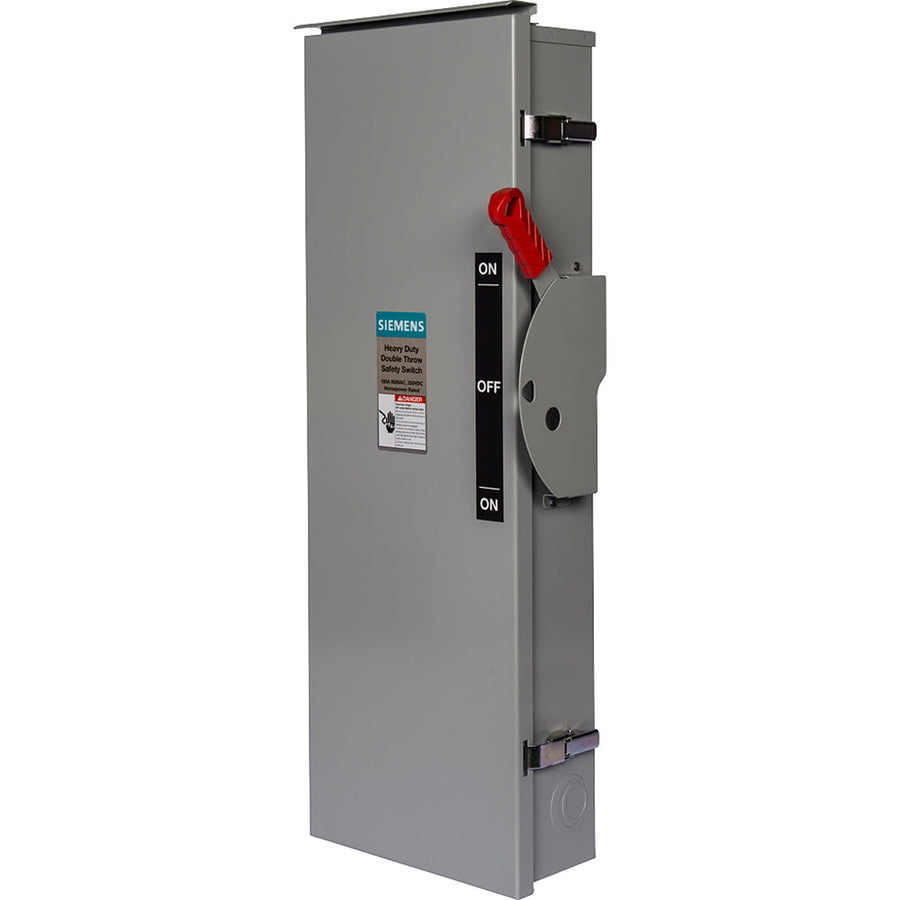

Siemens DTF324 - Fusible Disconnect Switch 100A 3-Pole (200kA AIC @600V)

Siemens DTF324 is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole switch operates at 240V AC with a 100A current rating, featuring a robust NEMA 1 enclosure measuring 21.1 x 50.1 inches and weighing 140 lb. The unit complies with UL98 standards and delivers 200kA interrupting capacity at 600V for superior fault protection. Typical applications include industrial control panels and motor control centers where Class R fuse protection and MAP frame compatibility are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole single configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 21.1 in x 50.1 in
• Standards: UL98 certified
• Applications: Industrial control panels, motor control centers
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Fuse Class: R
• Wire: 3
• Compatible Frames: MAP
• Weight: 140 lb
• Country of Origin: Mexico

Product Identification

• UPC: 783643453852
• GTIN: 00783643453852
