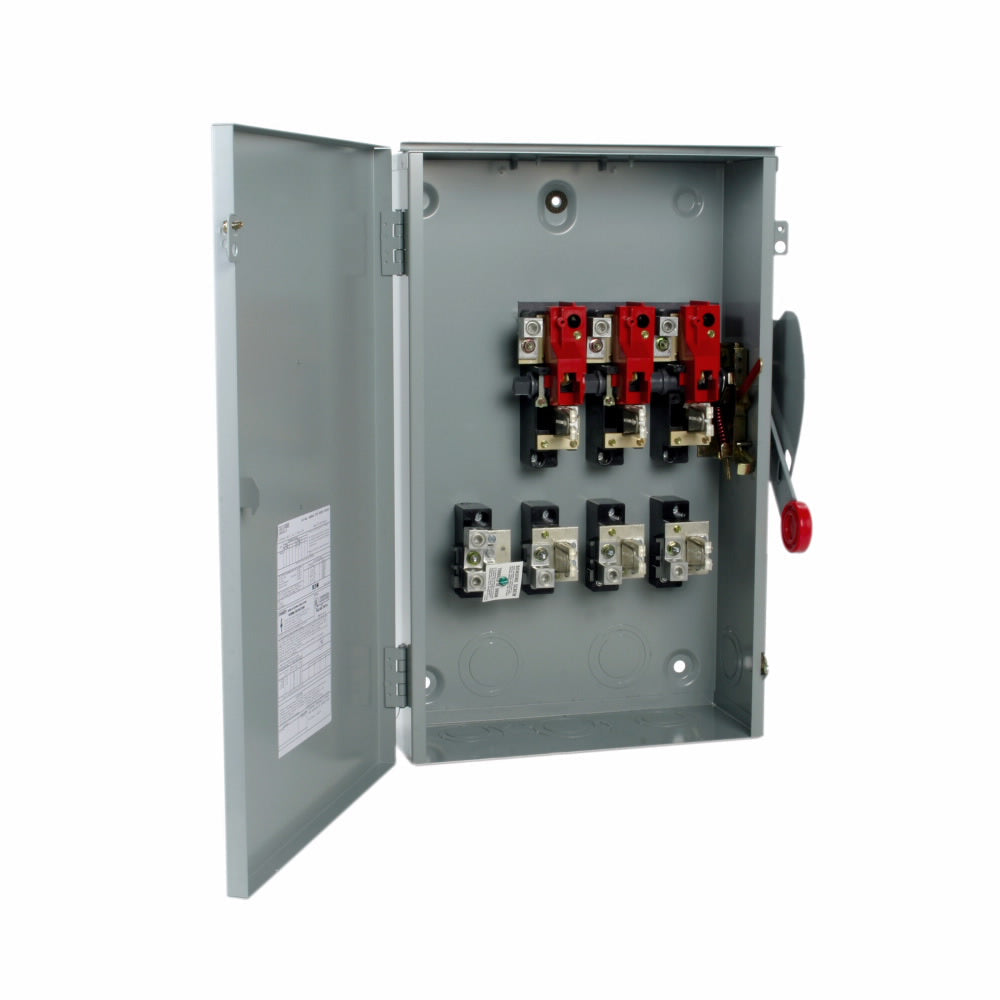

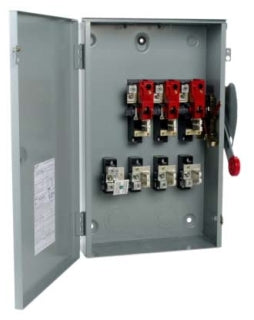

Cutler Hammer DG324NRK - Class R Fusible Disconnect Switch 200A 240V (NEMA 3R Enclosure)

The Cutler Hammer DG324NRK is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial power distribution systems. It features a 240V AC voltage rating and 200A current capacity for robust three-phase power control applications. The unit is constructed with a NEMA 3R rated enclosure measuring 16" x 11.25" x 25.5" (WxDxH) and weighs 55 lb, providing durable outdoor protection against rain and sleet. Compliance includes UL listing and NEC 230.62(C) barrier requirements, ensuring adherence to electrical safety standards. Typical applications include industrial machinery, motor control centers, and main service disconnects where Class R fuse protection and 100kA interrupting rating at 240V are required for high-fault current environments.

Key Features & Specifications

• Type: Fusible safety disconnect switch with Class R fuse compatibility
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16" x 11.25" x 25.5" (WxDxH)
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier
• Applications: Industrial power distribution, motor control centers, main service disconnects
• Switch Type: Disconnect
• Configuration: Single
• Phase: 3
• Poles: 3
• AIC rating: 100kA@240V
• Nema Rating: NEMA 3R
• Fuse Class: R
• Weight: 55 lb
• Family: DG Series
• Country of Origin: United States

Product Identification

• UPC: 782113213545
• GTIN: 00782113213545
