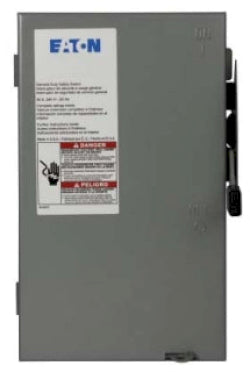

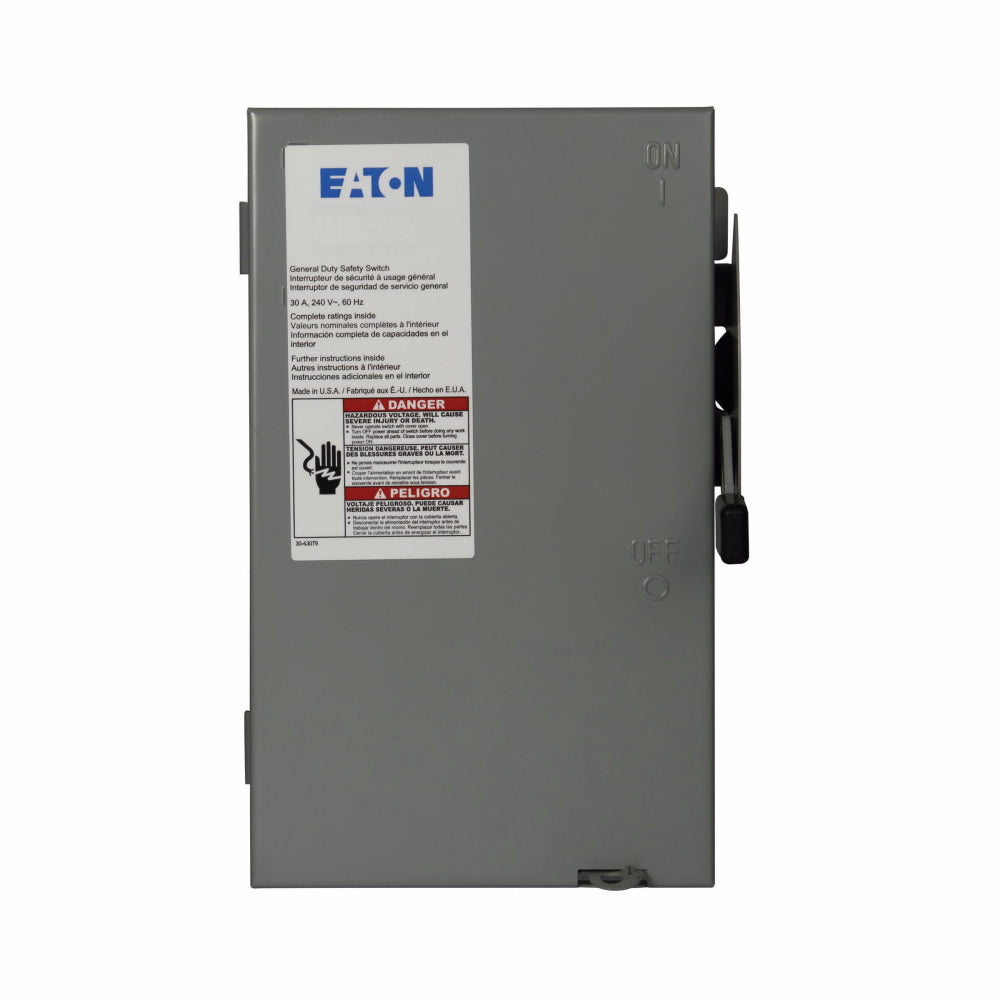

Cutler Hammer DG321UGB - Non-Fusible Disconnect Switch 30A 240V AC (100kA AIC @240V)

Cutler Hammer DG321UGB is a non-fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. The unit features a 240V AC voltage rating with 30A current capacity and 100kA interrupting rating at 240V for robust short-circuit protection. Its NEMA 1-rated enclosure measures 12.5" x 6.88" x 10.69" (WxDxH) with 6 lb weight, constructed for durable three-phase operation in single-configuration applications. Certified to NEMA KS-1, UL98, and UL standards, this DG Series switch is compatible with SELA frames for industrial motor control and power distribution panels.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 12.5" x 6.88" x 10.69" (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control
• Configuration: Single
• Poles: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 1
• Phase: 3
• Weight: 6 lb
• Compatible Frames: SELA

Product Identification

• UPC: 782113120140
• GTIN: 00782113000000
