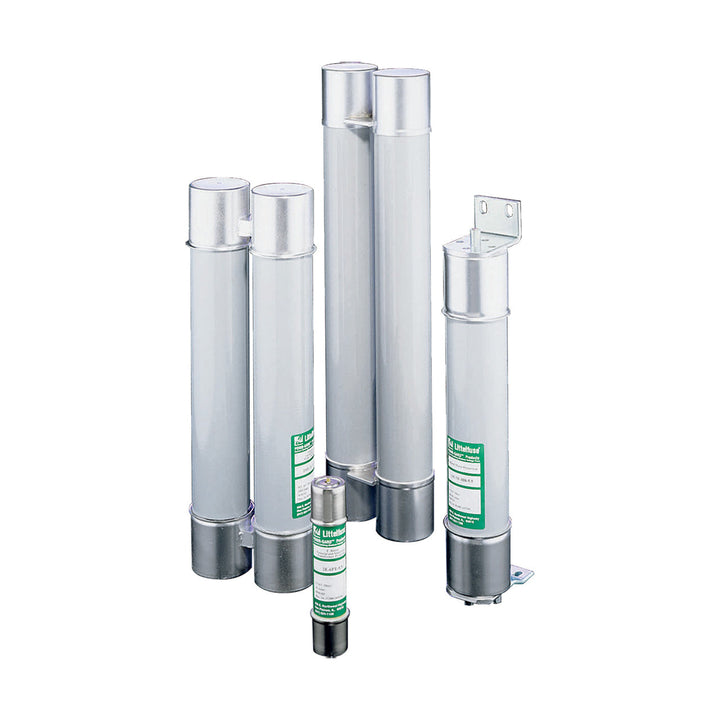

Littelfuse 200E2C15.5 - E-Rated Medium Voltage Fuse [email protected] (80kA AIC)

Littelfuse 200E2C15.5 is a medium voltage fuse from the Powr-Gard family designed for high-capacity circuit protection in industrial power systems. This E-Rated fuse features a 175A current rating and a 15.5kV voltage rating, providing reliable overcurrent protection with an interrupting rating of 80kA. The fuse construction utilizes a dual-barrel design with a 3-inch diameter and requires 15-inch clip center mounting, weighing 20 lb for robust industrial applications. It meets industry standards for Class E fuses, ensuring compliance with medium voltage protection requirements. Typical applications include motor protection, transformer protection, and feeder circuit protection in industrial power distribution systems.

Key Features & Specifications

• Type: E-Rated medium voltage fuse, dual-barrel construction
• Voltage Rating: 15.5kV
• Current Rating: 175A
• Dimensions: 3-inch diameter, 15-inch clip center spacing
• Standards: Class E fuse compliance
• Applications: Industrial power systems, motor protection, transformer circuits
• AIC rating: [email protected]
• Barrels: 2
• Class Rating: E
• Weight: 20 lb
• Family: Powr-Gard
• Item Subcategory: Medium Voltage

Product Identification

• UPC: 079458041323
• GTIN: 00079458041323
