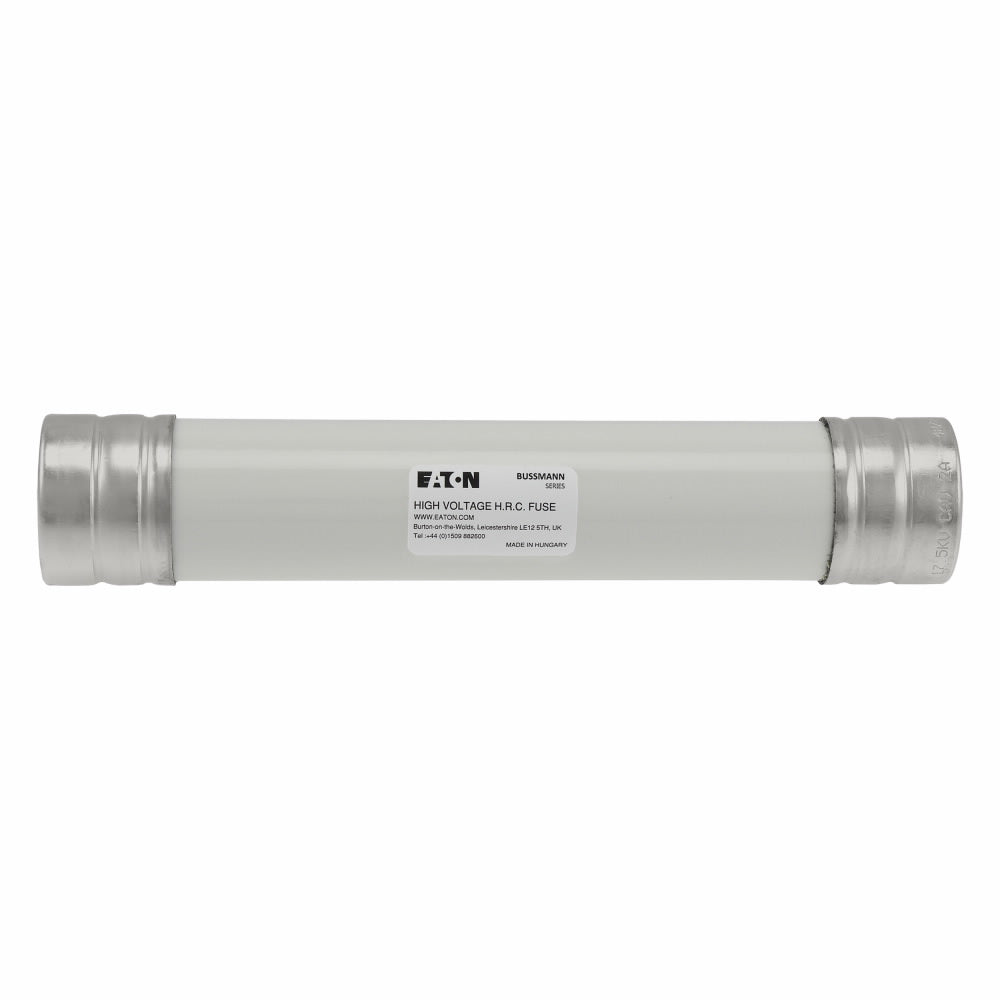

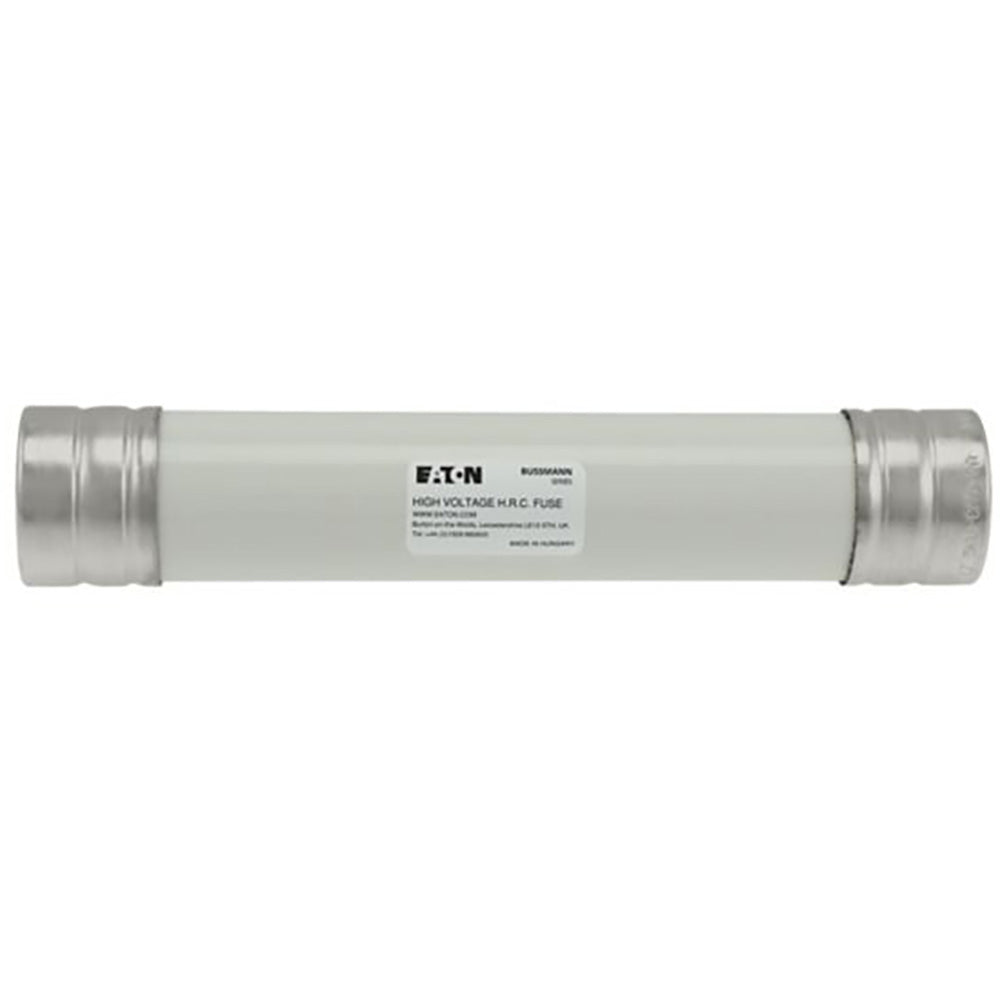

Bussmann 17.5CAV4 - Medium Voltage Fuse 4A 17.5kV (Class E, 40kA AIC)

Bussmann 17.5CAV4 is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 4A current rating and 17.5kV voltage rating with a 40kA interrupting capacity at 17.5kV for reliable circuit protection. The fuse construction includes a single-barrel design with 1.63-inch diameter and 7.46-inch clip center spacing, weighing 1 lb for straightforward installation. Compliant with Class E standards, this Eaton CAV family fuse meets rigorous industrial requirements for medium voltage applications including motor circuits, transformers, and feeder protection in commercial and industrial facilities.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel construction
• Voltage Rating: 17500V AC
• Current Rating: 4A
• Dimensions: 1.63" diameter, 7.46" clip center
• Standards: Class E rated
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Barrels: 1
• Class Rating: E
• Diameter: 1.63 inches
• Clip Center: 7.46 inches
• Weight: 1 lb
• Family: CAV
• Type: CAV

Product Identification

• UPC: 05171222625
• GTIN: 00051712226257
