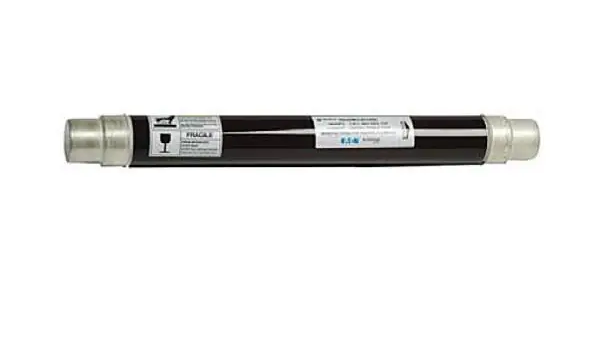

Bussmann 155GXQSJD175E - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)

Bussmann 155GXQSJD175E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 175A current rating and 15.5kV voltage rating with 65kA interrupting capacity at 15.5kV for reliable fault protection. The fuse utilizes a DIN connection system with single-barrel construction, measuring 89mm in diameter and weighing 18 lb, built to Class E specifications for robust performance. It complies with industry standards for medium voltage applications requiring high interrupting capacity. Typical applications include protection of transformers, motors, and feeders in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E, single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 175A
• Dimensions: 89mm diameter
• Standards: Class E fuse specifications
• Applications: Transformer protection, motor circuits, industrial power distribution
• AIC rating: [email protected]
• Connection: DIN
• Barrels: 1
• Class Rating: E
• Weight: 18 lb
