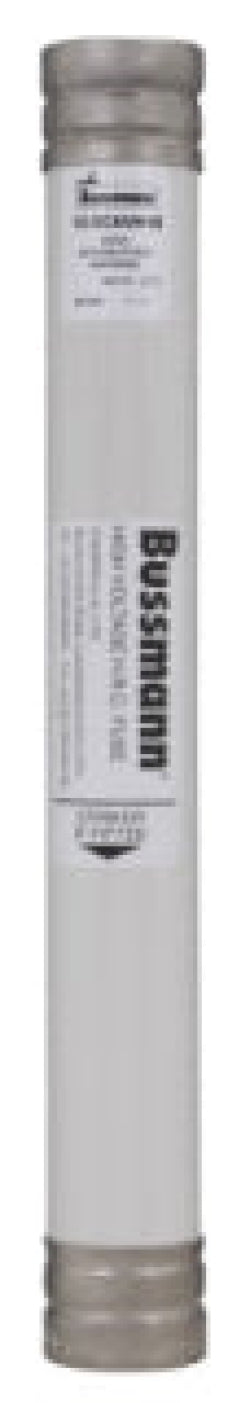

Bussmann 15.5CAVH0.5E - Medium Voltage Fuse 0.5A 15.5kV (80kA AIC Rating)

Bussmann 15.5CAVH0.5E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 0.5A current rating with an 80kA interrupting capacity at 15.5kV for reliable fault protection. The fuse construction includes a single-barrel design with 1.63-inch diameter and 12-7/8-inch length, weighing 2 lb, featuring 1.2-inch clip center spacing for secure mounting. Certified to BS and IEC 282-1 standards, this Class E fuse provides robust protection for transformers, motors, and capacitor banks in medium-voltage applications up to 15.5kV.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 15500V AC
• Current Rating: 0.5A
• Dimensions: 12-7/8 in length, 1.63 in diameter
• Standards: BS, IEC 282-1
• Applications: Transformer protection, motor circuits, capacitor banks
• AIC rating: [email protected]
• Class Rating: E
• Barrels: 1
• Clip Center: 1.2 in
• Weight: 2 lb
• Certification: BS, IEC 282-1

Product Identification

• UPC: 051712831154
• GTIN: 00051712831154
