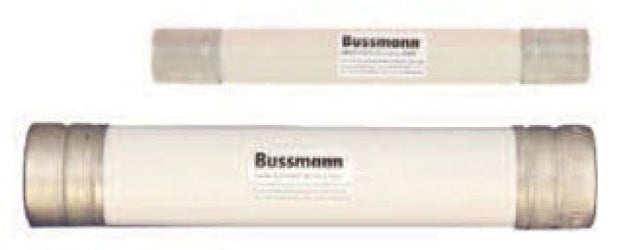

Bussmann 15.5CAV0.5E - Medium Voltage Fuse Class E (15.5kV, 0.5A, 80kA AIC)

Bussmann 15.5CAV0.5E is a medium voltage fuse designed for overcurrent protection in high-voltage electrical systems. It features a 15.5kV voltage rating and 0.5A current rating for precise circuit protection. The fuse construction includes a single-barrel design with 1.63-inch diameter and 1.2-inch clip center spacing for secure mounting. It meets Class E standards and provides 80kA interrupting capacity at 15.5kV for reliable performance. Typical applications include industrial power distribution, transformer protection, and medium voltage switchgear.

Key Features & Specifications

• Type: Medium Voltage Fuse, CAV type, single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 0.5A
• Dimensions: 1.63-inch diameter, 1.2-inch clip center spacing
• Standards: Class E rating
• Applications: Industrial power distribution, transformer protection, medium voltage switchgear
• AIC rating: 80kA @ 15.5kV
• Barrels: 1
• Class Rating: E
• Diameter: 1.63 inches
• Clip Center: 1.2 inches
• Weight: 2 lb

Product Identification

• UPC: 051712831079
• GTIN: 00051712831079
