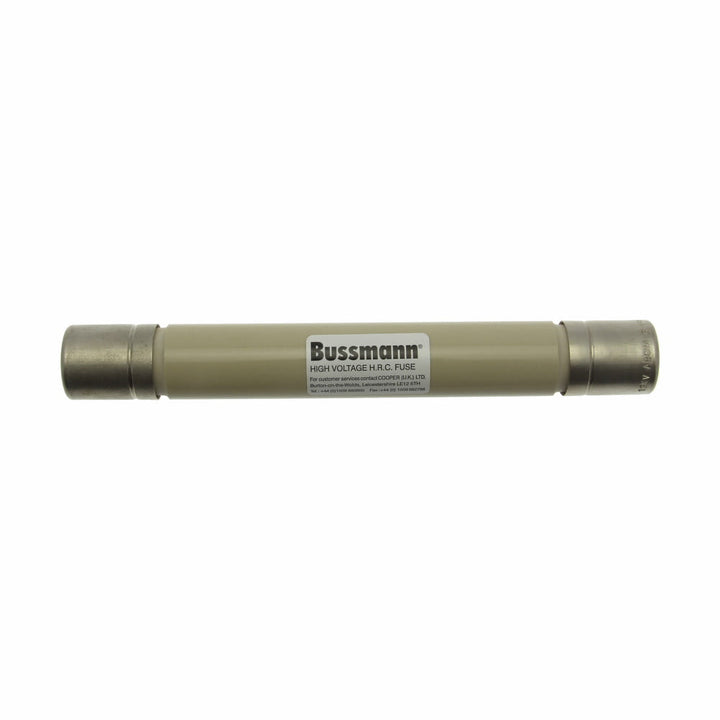

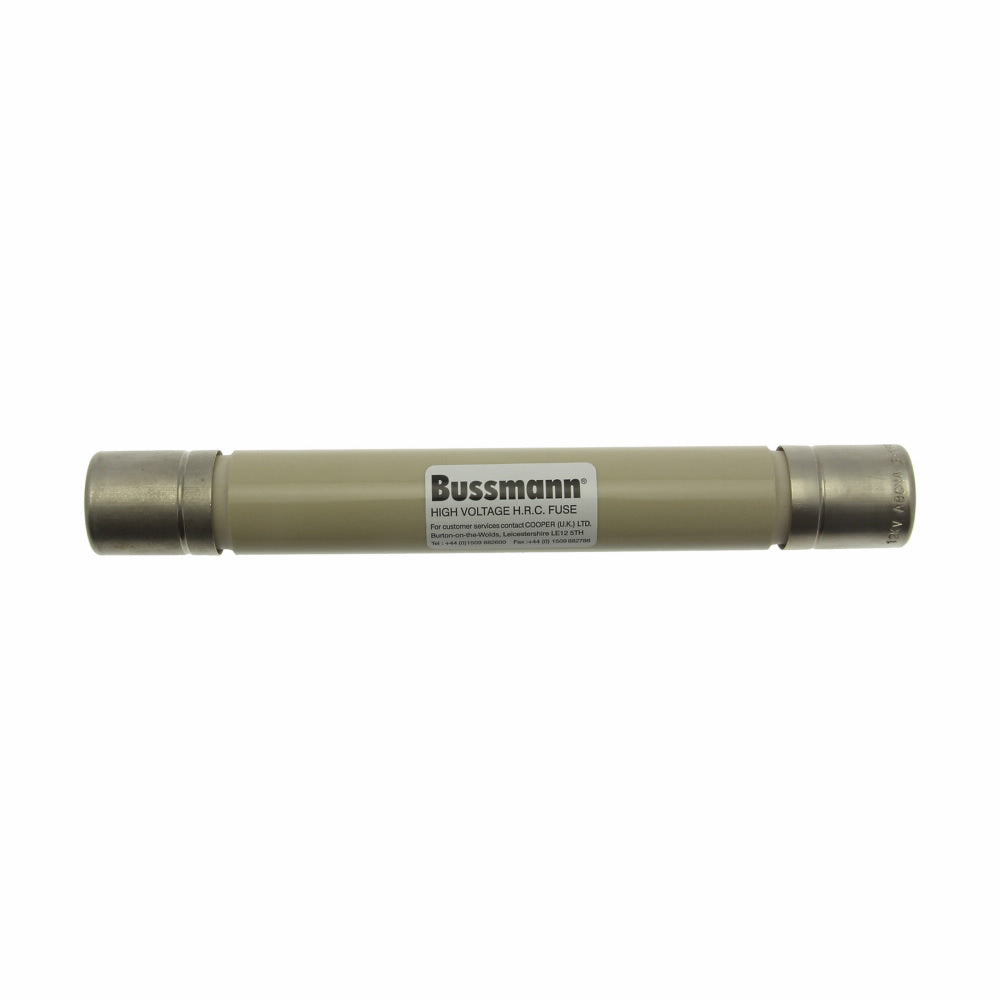

Bussmann 12ABCNA3.15 - AB Series Fuse 3.15A (1200V, 45kA AIC)

Bussmann 12ABCNA3.15 is a medium voltage fuse designed for circuit protection in industrial electrical systems, featuring a 3.15A current rating and 1200V voltage rating for reliable overcurrent interruption. Its Class E-rated AB-series construction includes a single-barrel design with a 1-inch diameter and 6.51-inch clip center spacing, engineered for 45kA interrupting capacity at 12kV. The fuse meets stringent industry standards for medium-voltage applications, with a robust design suitable for switchgear, motor controls, and transformer protection in demanding environments.

Key Features & Specifications

• Type: AB-series medium voltage fuse, single-barrel construction
• Voltage Rating: 1200V AC
• Current Rating: 3.15A
• Dimensions: 1" diameter, 6.51" clip center spacing
• Standards: Class E-rated, 45kA AIC @12kV
• Applications: Industrial switchgear, motor protection, transformer circuits
• Weight: 1 lb
• Country of Origin: India

Product Identification

• UPC: 051712830607
• GTIN: 00051712830607
