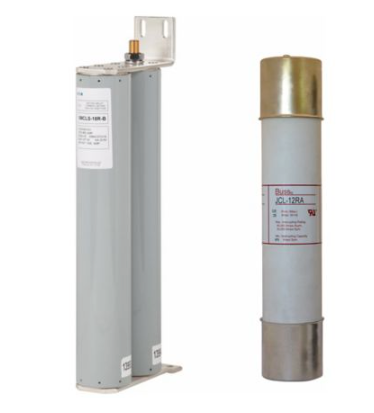

Eaton 129D696G03 - Medium Voltage Fuse 5080V Class R (Ferrule Connection)

Eaton 129D696G03 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This Class R fuse features a 5080V voltage rating and provides reliable overcurrent protection with its single-barrel ferrule connection design. The fuse construction includes a 3-inch diameter body weighing 9 lb with 12-inch clip center spacing for standardized mounting. It complies with industry standards for medium voltage applications and is typically used in motor control centers, transformers, and switchgear installations where high-interrupting capacity protection is required.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class R rating, single barrel construction
• Voltage Rating: 5080V
• Class Rating: R
• Dimensions: 3-inch diameter, 12-inch clip center spacing
• Weight: 9 lb
• Connection: Ferrule
• Barrels: 1
• Applications: Industrial power systems, motor control centers, transformers, switchgear
• Item Subcategory: Medium Voltage
