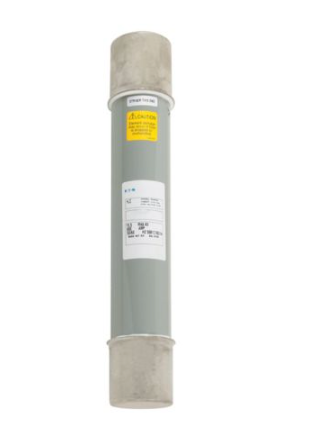

Eaton 129D686G02 - Medium Voltage Power Fuse 18A 5080V (Class R Rated)

The Eaton 129D686G02 is a medium voltage power fuse designed for circuit protection in industrial electrical systems. It features a 5080V voltage rating and 18A current rating for reliable overcurrent protection in high-voltage applications. The fuse construction includes dual ferrule connection barrels with a 3-inch diameter and 12-inch clip center spacing for secure mounting. This Class R rated fuse meets industry standards for medium voltage protection requirements. Typical applications include motor control centers, switchgear, and industrial power distribution systems where coordinated protection is essential.

Key Features & Specifications

• Type: Medium voltage power fuse with dual ferrule connection
• Voltage Rating: 5080V AC
• Current Rating: 18A
• Dimensions: 3-inch diameter
• Standards: Class R rated
• Applications: Industrial power distribution, motor control centers, switchgear
• Connection: Ferrule
• Barrels: 2
• Clip Center: 12 inches
• Class Rating: R
• Weight: 20 lb
