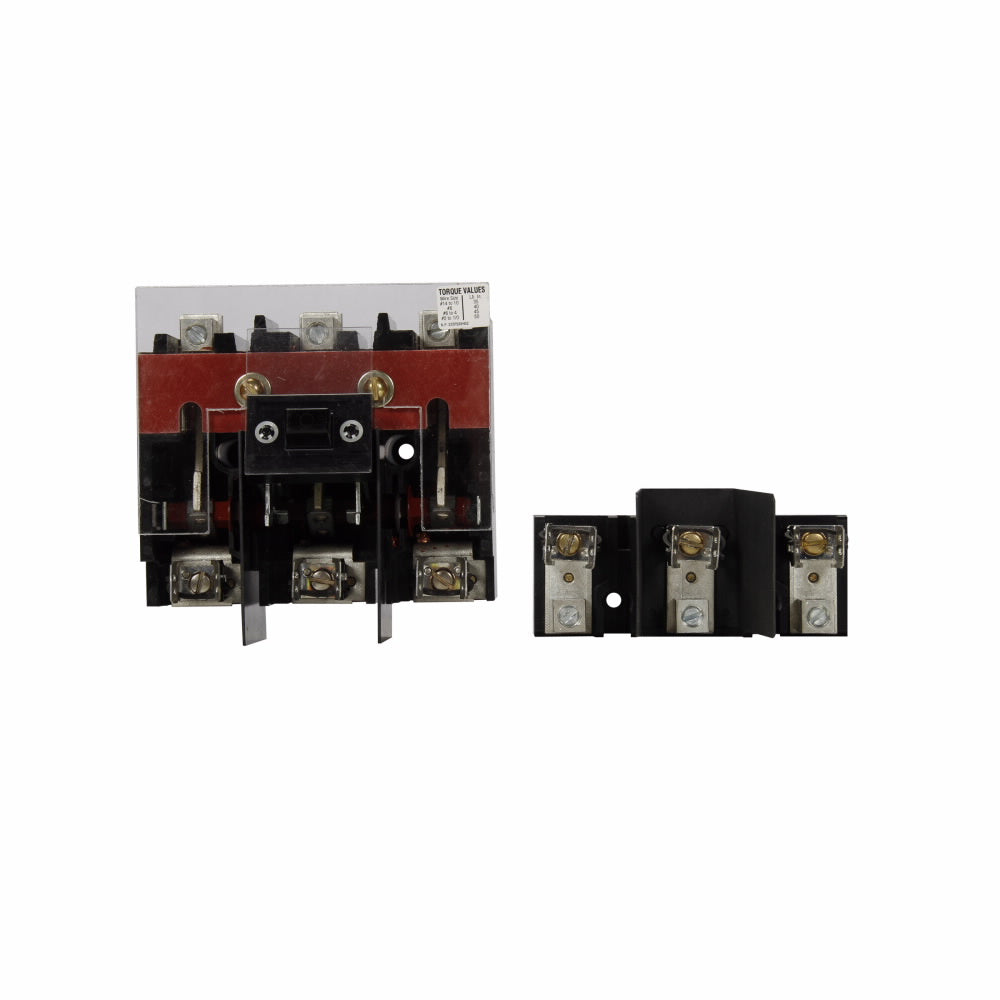

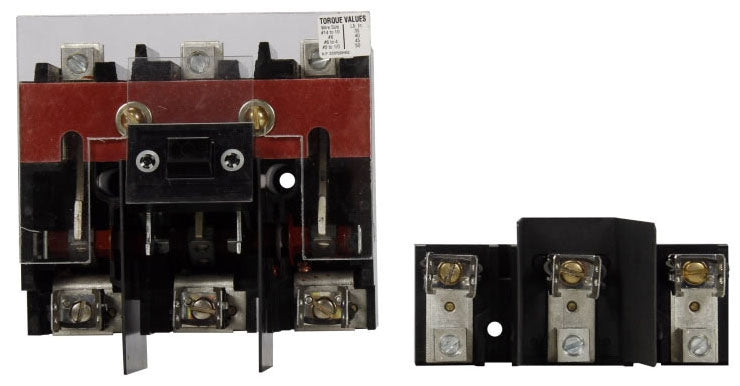

Westinghouse DS161R - Fusible Disconnect Switch 30A 600V (3-Pole 200kA AIC)

Westinghouse DS161R is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial power distribution systems. This 600VAC-rated switch handles 30A current with a 200kA interrupting capacity, providing robust short-circuit protection in three-phase applications. The compact unit measures 6" x 9.9" x 5.3" (WxDxH) and weighs 3.15 lb, featuring a durable construction with three-pole single configuration for straightforward operation. Certified to UL and CSA standards, this disconnect switch meets rigorous safety requirements for industrial environments. Typical applications include motor control centers, industrial machinery, and power distribution panels where safe maintenance isolation is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch with manual operation
• Voltage Rating: 600VAC
• Current Rating: 30A
• Dimensions: 6" x 9.9" x 5.3" (WxDxH)
• Standards: UL Listed, CSA Certified
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Safety Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R, J
• Compatible Frames: TED
• Weight: 3.15 lb
• Country of Origin: Dominican Republic

Product Identification

• UPC: 786679047323
• GTIN: 00782114313008
