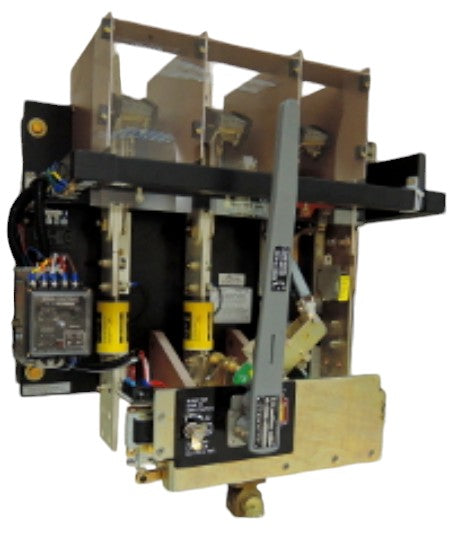

Boltswitch B225WOL - Fusible Pressure Switch 400A@240V (10kA AIC NEMA 1)

Boltswitch B225WOL is a fusible bolted pressure switch designed for industrial power distribution systems requiring reliable circuit protection. This single-configuration switch operates at 240V AC with a 400A current rating, featuring a robust 250 lb construction with NEMA 1 enclosure for durability. It complies with industry standards for H and K fuse classes, offering 10kA interrupting capacity at 240V for fault protection. Typical applications include motor control centers, panelboards, and switchgear requiring TED frame compatibility in single-phase systems.

Key Features & Specifications

• Type: Fusible bolted pressure switch (B Series) with H/K fuse compatibility
• Voltage Rating: 240V AC
• Current Rating: 400A
• Configuration: Single
• Poles: 2
• AIC Rating: 10kA@240V
• Phase: 1
• NEMA Rating: 1
• Compatible Frames: TED
• Weight: 250 lb
• Standards: Meets H/K fuse class requirements
• Applications: Industrial power distribution, motor control centers, panelboards

Product Identification

• GTIN: 00785901172918
