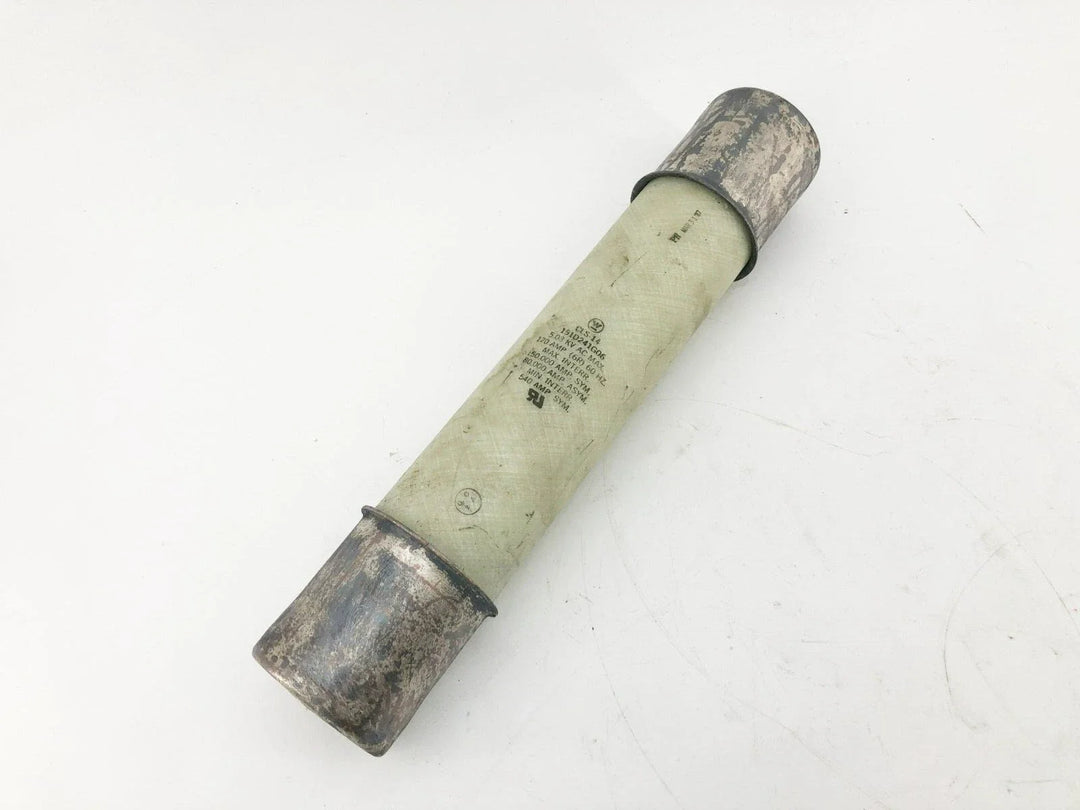

Westinghouse 676C546G25 - LCLS Current Limiting Fuse 230A ([email protected] Interrupting Capacity)

Westinghouse 676C546G25 is a medium voltage current limiting fuse designed for high-interrupting capacity protection in industrial power systems. This LCLS-type fuse features a 5500V voltage rating and 230A current rating, providing reliable overcurrent protection with a 50kA interrupting capacity at 5.5kV. The single-barrel construction measures 3 inches in diameter with 14-inch clip centers and weighs 10 lb, featuring Class R classification for enhanced safety. Compliant with industry standards for medium voltage applications, this fuse is engineered for demanding environments including motor control centers, transformer protection, and industrial power distribution systems where high fault current interruption is critical.

Key Features & Specifications

• Type: LCLS current limiting fuse, single barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 230A
• Dimensions: 3" diameter, 14" clip center spacing
• Standards: Class R rated for medium voltage applications
• Applications: Industrial power systems, motor control centers, transformer protection
• AIC rating: [email protected]
• Class Rating: R
• Barrels: 1
• Weight: 10 lb
• Family: CLS
• Item Subcategory: Medium Voltage
