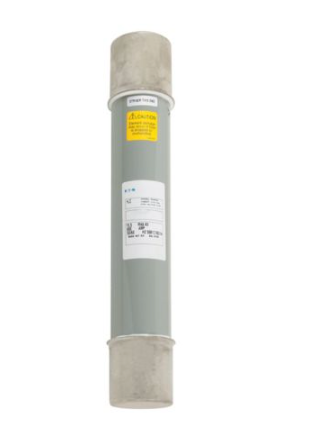

Westinghouse 5CLE2-350X - Medium Voltage Fuse 5500V 350A (Class E, Ferrule Connection)

Westinghouse 5CLE2-350X is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. This Class E-rated fuse operates at 5500V AC with a 350A current rating, featuring a durable ferrule connection and dual-barrel construction for reliable performance. The unit measures 3 inches in diameter with a 15-inch clip center spacing, constructed to meet stringent industry standards for medium voltage applications. It complies with ANSI/IEEE standards for electrical protection devices, making it suitable for transformer protection, motor circuits, and feeder protection in utility and industrial settings.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (Class E)
• Voltage Rating: 5500V AC
• Current Rating: 350A
• Dimensions: 3" diameter, 15" clip center spacing
• Standards: ANSI/IEEE compliant
• Applications: Transformer protection, motor circuits, feeder protection
• Connection: Ferrule
• Barrels: 2
• Class Rating: E
• Weight: 21 lb

Product Identification

• UPC: 78667021902
• GTIN: 00786670219026
