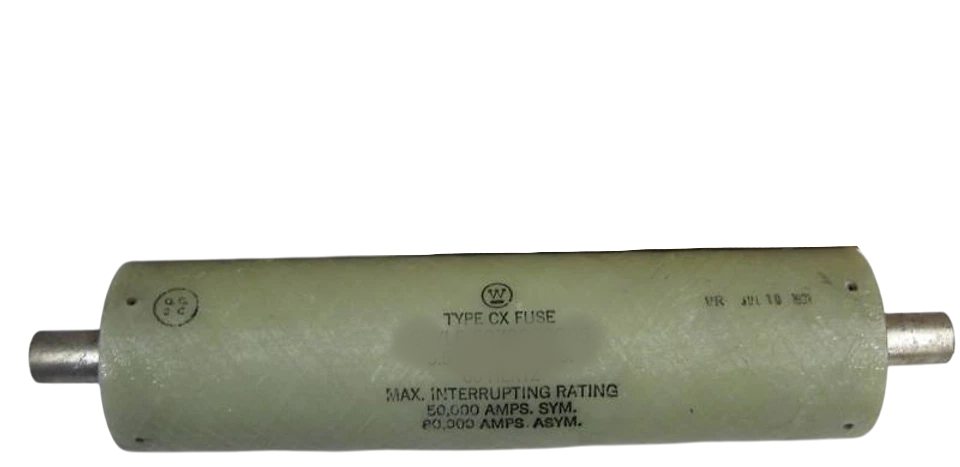

Westinghouse 5978C70G06 - CX Class Medium Voltage Fuse 5500V 50A (Class C Rated)

Westinghouse 5978C70G06 is a medium voltage CX class fuse designed for circuit protection in industrial power distribution systems. This single-barrel fuse features a 5500V voltage rating and 50A current rating, providing reliable overcurrent protection for medium voltage applications. Constructed with a 2-inch diameter and NX clip connection system, the fuse maintains a compact form factor while delivering robust performance. The Class C rating ensures compliance with industry standards for medium voltage fuse applications. Typical applications include motor control centers, transformers, and industrial switchgear where medium voltage circuit protection is required.

Key Features & Specifications

• Type: Medium voltage CX class fuse, single barrel construction with NX clip connection
• Voltage Rating: 5500V AC
• Current Rating: 50A
• Dimensions: 2-inch diameter
• Standards: Class C rated for medium voltage applications
• Applications: Industrial power distribution, motor control centers, transformers, switchgear
• Fuse Class: C
• Connection: NX Clip
• Barrels: 1
• Weight: 3 lb
• Item Subcategory: Medium Voltage
